Through Beam Sensors
This consists of two devices, a light emitter and a light receiver. The light receiver device contains amplifier circuit which gives transistorised output. These two devices are kept apart facing each other. The transmitter sends pulses of light in the infra red range which are invisible to the human eye. The receiver device opposite to the transmitter receives these rays. On interruption of these rays by the target object, receiver gives a signal which is amplified and fed to output transistor. ADVANTAGES - Large sensing distance is possible as emitter and receiver are kept opposite to each other. - Suitable for precise detection of large as well as small objects. Repeatability and indexing precision are not impaired even if the object surface or background is reflecting. - Can be coupled directly to PLC.
...more
THROUGH BEAM SENSOR WITH AMPLIFIER UNIT
This consist of two devices; a light emitter and a light receiver. These two devices are kept apart facing each other. The Gallium-Aluminium-Arsenide-Luminescent diode integrated in the transmitter sends pulses of light in the infra-red range which are invisible to the human eye. The receiver opposite to the transmitter receive these rays. Sensing is achieved when these rays are interrupted by the object. ADVANTAGES - Large sensing distance is possible as emitter and receiver are kept opposite to each other. - Suitable for precise detection of large as well as small objects. - Repeatability and indexing precision are not impaired even if the object surface or background is reflecting. FIELD OF APPLICATION Through Beam Sensors are used for sensing semitransparent opaque objects such as Glass/Plastic Bottle, Sliver breakage detection, Paper breakage detection, Door opening/closing etc.
...more
Switch Mode Power Supplies
Proximon Controls, the name synonymous with the quality automation components in industry today, like proximity sensors, photoelectric sensors, colour mark detector, encoders, and counters; offers an exhaustive range of power supplies... the MARATHON series. Marathon series of Switch Mode Power Supplies are designed with unique state of the art current mode PWM technology to obtain precise regulated output voltage at rated power. These “Switch Mode Power Supplies” are specially designed to work in harsh industrial environment, specifically for use in Indian power line conditions. Due to its exhaustive range, these Marathon series SMPS are in great demand in wide spectrum of industries like Instrumentation, Office Automation, Telecom, Medical Electronics, Railways, Fire Alarm Systems, Control Panels, Research Institute, Process industries, Engineering Industries etc. Features » High efficiency. » High reliability. » Low temperature rise » Built in EMI filter » Low output ripple, noise » Compact size, light weight » Rugged heavy duty enclosure » Short Circuit protection, Overload / Over voltage protection » 100% Full load burn-in tested » Over Temperature Protection » Parallel /Redundancy operation is possible
...more
Retro-Reflective Sensor (RBI)
This is a system which consist of one device and a reflector. The device contains emitter and receiver. The rays emitted by the emitter are reflected by the reflector to the receiver. The sensing of the object occurs when these rays are interrupted. ADVANTAGES - Easy assembly compared to the through beam type. - Large active sensing range compared to diffused beam type. FIELD OF APPLICATION This sensor can be used where it is difficult to install Through Beam Semsor due to space constraint. Further, simple wiring makes it sutaible where sensing objects are bigger in size. Thus These sensors are used for loop control in decoiller, edge detection in paper / sheet metal etc.
...more
Puls GmbH Power Supplies
Proximon is Authorised Distributor for Puls, GmbH Power Supplies. PULS , power supplies are at the forefront in the market with the smallest and most powerful units. The dimensions are up to 50% smaller than other standard products which enables significant space reductions in control cabinets and machines.
...more
print mark sensors
This is designed for sensing Registration Mark. It continuously scans the presence of registration mark on the moving packaging film. The electronic circuitary is capable of detecting any colours on any background colour. The scanning rate is as high as 2000 packages / minute making it suitable for any type of packaging machine including candy packing machine. WORKING PRINCIPLE A modulated, Green LED is focused on the moving packaging film. A highly sensitive Photo cell continuously accepts the reflections from the film (paper / plastic) and sends the signals to the electronic scanning circuit. On scanning the presence of Registration Mark; it gives transistorised output. A logic controller is also provided which accepts signals from scanning head & other Proximity Sensors to keep correct pouch / bag length by driving correction motor (110V AC, 4 wire) or (230VAC, 3 wire). SALIENT FEATURES » Fully solid state thus making it a totally reliable. » Immune to external light source, electrical interference. » A selector switch provided to choose Dark switching or light switching. » High speed switching i.e. 2000 marks / min. » Detection of different contrast sheds by means of sensitivity pot provision.
...more
Print Mark Sensor
photoelectric switch
Photoelectric Sensor works on the principle of modulated Infra-Red rays. These sensors can sense any opaque, semi-transparent objects which comes in its sensing range. Photoelectric Sensors have large operating distance. These are mainly divided into : Diffused Beam Sensor, Through Beam Sensor with Amplifier Unit, Through Beam Sensor with Built in Amplifier, Retro-Reflective Sensors.
...more
Photoelectric Sensor (Block Type)
These block type sensors are available in Diffused, Through Beam and Retro-Reflective types with sensing range varies from 100 mm to 5 Mtrs. The technical specifications are similar to standard cylindrical sensors but useful when mounting space is a constraint.
...more
photo electric sensors
Photoelectric Sensor works on the principle of modulated Infra-Red rays. These sensors can sense any opaque, semi-transparent objects which comes in its sensing range. Photoelectric Sensors have large operating distance. These are mainly divided into : Diffused Beam Sensor, Through Beam Sensor with Amplifier Unit, Through Beam Sensor with Built in Amplifier, Retro-Reflective Sensors.
...more
length counter
Length counter provides a very cost - effective and reliable solution to many complex counting requirement. » Potential free contacts from limit switch, micro switch.
...more
LED SQUARE PANEL
LED Make : EDISON - 2835 - 0.2 W Light Color Temperature : W-6500K, NW-4000K, WW-3000K Lumens Output : White - 120 lm/W CRI > 80 Driver Efficiency : Typically 85% Driver P.F. : Typically 0.95 Beam Angle : 120⁰ IP Rating : IP 20 Housing : Aluminium Die-Cast
...more

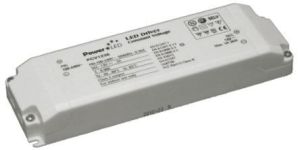

Led Drivers
PROXIMON offers SMPS based LED Drivers to drive High Power LEDs. Today is world of Power LEDs in Lighting Industry due to it's long life and energy saving parameters. These power LEDs needs to drive on Constant Current for the best performance in terms of continuous operation with constant Lumens. Hence , constant current LED Drivers are BACK BONE of Power LEDs. The unique features of PROXIMON's LED Driver are as follows » All protections are available like short circuit , over load , over temp etc. » Low No load voltage ( within the range ) , thus making suitable to use multiple LEDs safely. » I/p & O/p are isolated. » Power device is of high rating , hence completely reliable ( 24h X 7days a week ) » I/p & O/p capacitor are of higher capacity , hence low ripple and very good line & load regulation. Typical application areas for these Power LEDS are Malls , Offices , Subways, Commercial spaces, Hotels, Supermarkets , Highways etc.
...more
Led Driver
These power LEDs needs to drive on Constant Current for the best performance in terms of continuous operation with constant Lumens. All protections are available like short circuit , over load , over temp etc.
...more
INDUCTIVE SENSORS (BLOCK TYPE)
These are constructed in Rectangular, T Type , Slot type Pentagonal and Block type sensors. The technical specification are similar to standard cylindrical sesors and are available in 3 wire DC & 2 wire AC types.
...more
Inductive Sensor (Analog Type)
Inductive sensor with analog output works in similar way as standard 3 wire DC Inductive Sensors. When a metal target comes in vicinity of the sensor , energy is drawn from the oscillator. This energy loss is in proportional with the distance between sensor and the target ; which is converted in analog signal. The analog signal is made linear and then amplified to give 0-10 V output.
...more
Inductive Sensor
Inductive Proximity Sensors are used for non-contact metal sensing. Being contactless sensors these can be used for position sensing, speed measurement, counting, etc. They can be used in extreme conditions, such as oily, dusty, corrosive environment. Their application ranges from automobile industries to steel industries, from CNCNC machines to material handling equipments, process automation, conveyor systems, packaging machines.
...more
Inductive Proximity Sensors
Inductive Proximity Sensors are used for non-contact metal sensing. Being contactless sensors these can be used for position sensing, speed measurement, counting, etc. They can be used in extreme conditions, such as oily, dusty, corrosive environment. Their application ranges from automobile industries to steel industries, from CNC/NC machines to material handling equipments, process automation, conveyor systems, packaging machines. Operating Principle An inductive proximity switch is designed to detect, and react to any metal object which moves into the operating zone situated immediately in front of its sensing face. This sensing face comprises a coil, the winding of which is fed from an oscillator, the whole creating an alternating magnetic field in front of the coil. Whenever a metal object moves into this field, the resulting induced currents form an additional load, and the oscillations cease
...more
Hohner Encoder
Proximon is Authorised Distributor for Hohner, Italy ( a well known European Brand ) for their Incremental (Shaft / Hollow Shaft ) and Absolute Encoders. The typical applications are x/y Indication, AC Drive Feedback , Robotics, Ultrasonic Welding , Door Closing Devices etc..
...more
DIGITAL REVERSE CONTROLLER
Digital Forward/Reverse Controllers are with built in Production Counter & Speed Indicator makes these Controllers most cost effective. Available with us is an extensive range of Digital Forward/Reverse Controllers that are acknowledged for their attributes of flawless advance design and perfection in functionality. These qualitative forward controllers come with built in Production Counter & Speed Indicator, that make these controllers cost effective.
...more
DIFFUSED BEAM SENSORS
This device consist of a transmitter and a receiver together. This look alike Inductive Proximity Sensor and hence is also known as IR Proximity Sensor. The emitter emits Infra red rays which are reflected on the receiver through the object to be registered. In the use of these sensors, it is important to bear in mind the colour of the object. Light colour corresponds to the maximum distance and vice versa. In case of shiny object; the effect of surface of object is more important than the colour. ADVANTAGES - Transmitter and receiver are housed in the same housing. - As the self reflection of an object is used for detection; Dark & Light marks can be distinguished. FIELD OF APPLICATION These Sensors are particularly used for position sensing and counting of non metallic objects. It is also used for Bottle sensing, Label sensing, Level sensing, Height sensing, Plastic film sensing, Edge detection of paper or sheet metal etc.
...more
DC Type (3 Wire Version)
Inductive proximity sensors can be used for position sensing, Speed measurement, Counting & in condition such as oily, dusty, corrosive enviroment. Their applications are in Automobile, Steel Industries, CNC/NC machines, Conveyor systems, packaging machines etc. These 3 wire DC sensors are with NPN or PNP transistorised output and the load is connected in parallel.
...more
DC Type (2 Wire Version)
These Sensors are designed to work as solid state DC limit switches. The Sensors are connected directly in series with the load and have a bridge rectifier so they are not polarity conscious. The circuit design is such that, when in off state, it allows very low current to flow through the load. However, the output load (such as relay) should be chosen, considering the voltage drop across the switch in the ON State. These sensors find wide application in electric control circuits and PLC’s.
...more
Programmable intelligent Counter
PRiCO (Programmble intelligent Counter) PRiCO provides a very cost - effective and reliable solution to many complex counting requirement. What sets PRiCO apart from the convention facet. SPECIFICATIONS : Counting modes » Up counting » Down counting » Quadrature counting » Bi-directional counting Display 7-digit, seven segment LED display (10mm height) » Counter/Totaliser/Batch: 7- digit display » Rate : 5- digit display » RPM : 6- digit display Range » Counter/Totaliser:Selectable least count 0.000001, 0.00001, 0.0001, 0.001, 0.01, 0.1, 1 » Rate: Rate per minute (RM) / Rate per hour (RH) user selectable. (minimum frequency for Rate mode is 10 Pulses/minute) » RPM: 10 RPM to 360000 RPM Set points » 3 user programmable set points. » SET1 , SET2 :Dedicated for COUNTER mode. » SET3 : User programmable for any one of COUNTER / TOTALISER /BATCH / RPM. Relay operating mode » Relay ON mode » Relay OFF mode » Pulse time mode a) Time pulse repeat mode b) Auto-reset mode Count inputs » Voltage pulse : 8 to 30 V DC amplitude from proximity switch, encoder. » Potential free contacts from limit switch, micro switch. Input frequency » 0 to 6 KHZ: In up / down mode » 0 to 3 KHZ: In quadrature mode / bi-directional mode. Sensor supply » 12 V DC, 60mA (+/- 10 %) Scale factor » Programmable » scale factor = X x 10Y X = From 0.000001 to 9.999999 Y = 0, 1, 2, -1, -2, -3, -4, -5 Reset input » Manual / Front panel reset: with enable / disable facility » Remote/ Back panel / Electrical reset: User selectable ( minimum time for remote reset is 10 ms. ) » Reset through programming mode: User selectable Relay outputs » Three Relays ( one relay for each set point ) » Relay1/ Relay2 for set1/set2 operation ( COUNTER ) » Relay3 for set3 ( COUNTER / TOTALISER / BATCH / RPM ) – Programmable » Relay ratings: Rated for 5 Amp at 230 V AC Memory retention » Upto 10 years Protection » Parameters a) Password protected b) Hardware protected (Dip switch setting) » Set points a) Software protected (Through program configuration i.e. ‘SdF 3.’) Supply » 230 V AC (+/- 10%) Mounting » Panel mounting Weight » approximately 580 gms Operating temperature » 0° to 50° C Relative humidity » 10 - 95% non-condensing Overall dimensions » (All dimensions are in mm.)
...more
Switch Mode Power Supply
