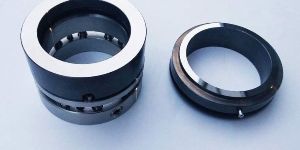

BS1-20SPL Pusher Seals
Get Price Quote
Features Single Seals Unbalanced seals single spring, fixed rotary direction spring coil driven Advantage single end and single spring, unbalanced, fixed rotary direction and spring coil driven. The spring coil driven structure has a fixed rotary direction. The structure of this seal is simple and the cost is low. This seal component has a wide usage and is stable and reliable. Materials Rotary Ring: SiC/TC Stationary Ring: Carbon/SiC/TC Elastomers: NBR/EPDM/FFKM/Aflas/PTFE Springs: SS304/SS316 Metal Parts: 2Cr13/SS304/SS316 Recommended applications Oil Water amorphism acid alkali organic solvents.
Unbalanced Pusher Type Seals
Get Price Quote
"Multiple Spring Unbalance Mechanical Seals" seal are general purpose multi spring unbalance mechanical seals. These seal can be easily assemble or dismantled through circlip provided and can be change to balance version. These seal can be provided with single, double or tandem arrangement with external seal support system & devices Single Acting Cylinders Hetran inc SAS wire drawing machine from Italy Schumag Bhamri. Etc
Best Deals from Pusher Seals

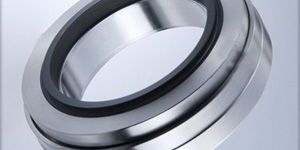

Pusher Seals
Get Price Quote
B700N: The B700N mechanical seal range is designed for universal application and the interchangeable parts concept is ideal for stock rationalization. B100N: Mechanical seals of the B100 range have a short installation length (axial). The B100 is a compact ready-to-fit seal which can be installed in the same axial length as a "lip-seal" and can be used to seal differential pressures of up to 25 bar. B120N: Mechanical Seals of the B120N series are a cost effective version of a balanced seal. They feature the same robust and reliable construction as the unbalanced spring seals in the Sealmatic range.. B740-D: Double seals of the B740-D series have the same design-features as the "B700N" family of single seals. BJ920N: Mechanical seals of the BJ920N series are designed for media containing solids or with high viscosity e.g. sugar, paper, sewage and waste water industry. The spring is not in direct contact with the product. The robust and reliable design avoids sticking and clogging. U200N: The U200N mechanical seal range features a spring loaded solid carbon graphite seal face. They are cost effective for basic applications. U300N: The U300N mechanical seals are popular. Extremely rugged and reliable, they cover a wide spectrum of applications – in water pumps, sewage pumps, submerged pumps, chemical pumps, etc. U700N: The U700N mechanical seal range is designed for universal application and ideally suited for standardization. U740-D: Double seals in the U740-D series have the same design-features as the "U700N" family of single seals
