SAKAV OVENS, DRYERS & FURNACES Navghar Manikpur, Thane, Maharashtra

For annealing, sintering, precipitation hardening, burn off or any other high temperature processing of large or numerous parts. Constructed with an isolated inner oven to eliminate heat transfer and leakage at seams commonly found in standard panel construction. Designed and constructed for long, hard, continuous use with the temperature uniformity required for consistent results at elevated temperatures. FEATURES: Digital, microprocessor based, thermocouple actuated, indicating temperature controller -Modulating burner on gas-fired ovens 2 Adjustable, thermocouple actuated, manual reset excess temperature controller.

Vacuum Shelf dryers provide rapid drying of heat sensitive, air-sensitive & pyrophoric materials, or materials that require drying without agitation. Heat sensitive materials can be dried at low temperatures under vacuum, since the environmental pressure is reduced below the vapour-pressure of the contained water or solvents. Oxidation or Contamination by Air is eliminated. Recovery of expensive solvents can be virtually complete. Hollow Fibers, Medical Devices, Chemical Salts, Fine Chemicals, Dyes, Glandular Products, Pharmaceuticals and Food Extracts (Gluten, Glues, Pepsin), Rubber Explosive, etc. are ideally suited for drying in this manner. Features: Charge temperature measuring facility provides exact picture of the process. It measures the temperature directly at charge (material). A PT-100 Temp. Sensor enters the vacuum chamber via connection at the top Rear.

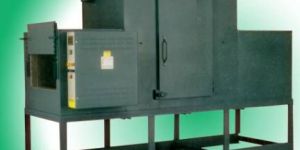

Tunnel ovens are designed to include support points for your conveyor system. Adjustable silhouette dampers are provided on the oven end openings to minimize heat loss. Each Oven is designed for the specific application and can include multiple heat zones and a cooling zone. Units can be provided in sections for easy installation and mating with existing conveyor system. FEATURES: 1 Aluminized or stainless steel interior depending on maximum temperature rating. 2 Welded structural steel, channel base provides a rigid assembly easily moved at any time. 3 Side hinged doors provided along oven length for access to work space and heat chamber.

Hardworking Ovens designed for baking, drying, preheating in Chemical, Food, Dyestuff, Pharmaceutical or any other applications where a dependable sources of heated air to 2600C is required. Complete with temp. controllers that offers the latest in solid state heat sensing technology and built in floor level tracks that make trolley loading easy. Horizontal airflow accommodates virtually any dryer Loading without restricting air passages. Work can be shelf loaded or placed directly on the optional reinforced work space bottom. Five sizes Side mounted control panel minimizes floor space required. Designed for Roasting, Drying, Pre-Heating or any other application where a dependable source of heated air up to 300 degree. FEATURES 1 Thermostatic controller 2 Motor control push buttons

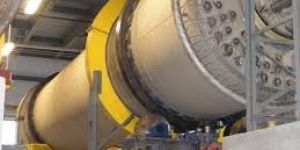

The Sakav Steam Tube Dryer was developed to dry high moisture organic by-products such as brewer's and distiller's spent grain. Today, this dryer serves thousands of applications, drying and processing inorganic and organic chemicals and other bulk solid materials. The steam tube dryer generally operates at a lower temperature than other dryers and rotates at a slower speed. Material tumbles gently around the tubes which rotate with the shell, unlike the friction forces required by other types of dryers to process material. Consequently, it enjoys a longer life than most dryers and requires very little maintenance. Sakav Steam Tube Dryers have proved superior to other types of indirect-heat dryer installations in which hot gas, rather than steam, is used as the heat source. Maintenance savings alone have often prompted replacement of other dryer systems with the Steam Tube Dryer

The Sakav Steam Tube Dryer was developed to dry high moisture organic by-products such as brewer's and distiller's spent grain. Today, this dryer serves thousands of applications, drying and processing inorganic and organic chemicals and other bulk solid materials.The steam tube dryer generally operates at a lower temperature than other dryers and rotates at a slower speed. Material tumbles gently around the tubes which rotate with the shell, unlike the friction forces required by other types of dryers to process material. Consequently, it enjoys a longer life than most dryers and requires very little maintenance. Sakav Steam Tube Dryers have proved superior to other types of indirect-heat dryer installations in which hot gas, rather than steam, is used as the heat source. Maintenance savings alone have often prompted replacement of other dryer systems with the Steam Tube Dryer

SAKAV Steam Sterilization Autoclaves find wide use in microbiological laboratories, research institutes, and ambulatory clinics and in all those applications in which high quality reduced overall dimensions are required. Equipment's Dimensions and Technical Features allow their installation inside the laboratory with no particular difficulties in positioning and connection.

Pit furnaces are used for a variety of heat treating applications including those requiring inert atmospheres where overhead handling equipment is used. Full opening door exposes entire workspace for easy loading. Precision microprocessor based temperature controls and energy-saving insulation maximize the cost efficiency and performance of these rugged units. Nine standard models from 3 to 45 cubic feet built for long, hard, continuous use FEATURES; Digital, microprocessor based, thermocouple actuated, indicating temperature controller. 2.Modulating burner on gas furnaces

Pit furnaces are used for a variety of heat treating applications including those requiring inert atmospheres where overhead handling equipment is used. Full opening door exposes entire workspace for easy loading. Precision microprocessor based temperature controls and energy-saving insulation maximize the cost efficiency and performance of these rugged units. Nine standard models from 3 to 45 cubic feet built for long, hard. FEATURES 1 Digital, microprocessor based, thermocouple actuated, indicating temperature controller. 2 Modulating burner on gas furnaces.

Furnaces are used for a variety of heat-treating applications including those requiring inert atmospheres. Recirculating blower provides high velocity vertical down airflow for excellent heat transfer from 4250C to 7500C. Precision microprocessor based temperature controls and energy-saving insulation maximize the performance of these rugged units. FEATURES; 1 Digital, microprocessor based, thermocouple actuated, indicating temperature controller 2 Modulating burner on gas furnaces. 3 Motor control push buttons and on-off heat switch

In Fluid Bed Dryer, the material comes in close contact with the drying air at low temperature and for a short period and hence there are less chances of the physical and chemical properties of the productsmaterials changing during the process of drying as compared to Tray Dryer where the material is not in close contact with the Drying Air.

Top plate made from S.S. Heavy Sturdy Cast Iron Casting and coated with epoxy base resistive coating that does not chip off as ordinary paint even at higher temperatures. Maximum temperatures with thermostat 2750C and 3500C with energy regulator.

Conveyor drying uses a perforated belt to transfer feed materials through the dryer. Heated air is either passed under and through, or over and through the belt and product bed before being reheated and re-circulated. Units are normally multi zoned and may have differing airflow's in successive zones. Additionally each zone may use a different temperature profile and control. Saturated or close to saturated air is exhausted from the dryer via a central exhaust duct. Conveyor dryers may be multi pass units, in which the feed is transferred from one belt to another belt below it by gravity. These dryers are usually two or three pass machines. Additionally certain conveyor dryers, such as those used in vegetable dehydration have multiple belts in line, and the feed is transferred from one belt to another. features Very intimate contact with airgas stream Excellent transfer of energy Gentle handling of product

Furnaces are used for a variety of heat treating applications such as hardening, sintering or firing including those requiring inert atmospheres. Precision microprocessor based temperature controls and energy - saving insulation maximize the performance of these rugged units. Eleven standard models from 6.7 to 96 cubic feet, built for long, hard, continuous use. FEATURES; Digital microprocessor based, thermocouple actuated, indicating temperature controller. 2.Modulating burner on gas furnaces 3. Motor control push buttons and on-off heat switch.

Conveyor drying uses a perforated belt to transfer feed materials through the dryer. Heated air is either passed under and through, or over and through the belt and product bed before being reheated and re-circulated. Units are normally multi zoned and may have differing airflow's in successive zones. Additionally each zone may use a different temperature profile and control. Saturated or close to saturated air is exhausted from the dryer via a central exhaust duct.Conveyor dryers may be multi pass units, in which the feed is transferred from one belt to another belt below it by gravity. These dryers are usually two or three pass machines. Additionally certain conveyor dryers, such as those used in vegetable dehydration have multiple belts in line, and the feed is transferred from one belt to another.

Batch Type Dryers uses a perforated belt to transfer feed materials through the dryer. Heated air is either passed under and through, or over and through the belt and product bed before being reheated and re-circulated. Units are normally multi zoned and may have differing airflow's in successive zones. Additionally each zone may use a different temperature profile and control. Saturated or close to saturated air is exhausted from the dryer via a central exhaust duct. Batch Type Dryers may be multi pass units, in which the feed is transferred from one belt to another belt below it by gravity. These dryers are usually two or three pass machines. Additionally certain conveyor dryers, such as those used in vegetable dehydration have multiple belts in line, and the feed is transferred from one belt to another. FEATURES; Very intimate contact with airgas stream Good for heat sensitive products and products requiring long residence times Excellent transfer of energy

Steam Sterilization Autoclaves find wide use in microbiological laboratories, research institutes, and ambulatory clinics and in all those applications in which high quality reduced overall dimensions are required. Equipment's Dimensions and Technical Features allow their installation inside the laboratory with no particular difficulties in positioning and connection. FEATURES 1.All Autoclaves are provided with Two SS 304 Springload safety valves as stand by. 2.Audio and Visual Alarm for overtemperature
