Santoshi Mata Eng. Works Bhiwandi, Thane, Maharashtra

Technical specification• Diameter of Turn table platform :- Dia 915 mm.(36”) or 736mm(29”);• Turn Table Height :- 850mm (Adjustable) • Turn table material :- S.S.304

Single chamber Vacuum Packing machine     Standard Features: • PLC based control panel with 4 Line LCD display from "MITSUBISHI" - JAPAN. • Stainless steel housing. Noo sharp edges. Easy to wipe. • Cutout of toughned glass to view the packaging process from the top. • Entirely made from stainless steel, cast aluminium & other non ferrous materials. • Oil mist separator to remove the oil mist from vaccum pump exhaust • Soft ventilation - a gradual air influx for ventilation process to compensate pressure to save the product apperance and material.     • Optional Features: • Inert Gas Flushing Unit. • Gas pressure monitoring device for nitrogen & carbon dioxide.

Servo Based Powder Filling Machine       Technical specification01. Output Up to 60 BPM depending on the size of the bottles and the fill quantity. 02. Main Motor Make: -Hindustan /  Remi 03. Main Gear Box Make: Shreeji / Bonfiglioli / Rotomotive 04. Clutch Yes, for protection against overload 05. Number of Filling station 1 06. Filling Through servo 07. Servo 2 K.W, 2000RPM, Make: Panasonic 08. Hopper MOC: SS304 09. Powder Contact parts SS304/As per URS 10. Non-Contact Parts MS/Aluminum/Plastic11. PLC Make: DELTA 12. HMI Make: DELTA13. Stirrer Motor Make: Hindustan / Remi 14. Stirrer Gear Box Make: As per URS JPM/Shreeji/Bonfiglioli/Roto-motive15. Conveyor : 82mm (w) X 2000mm (L) X 850mm (H)   Mechanical pouch packing machine (milk,lassi,chaas,butter milk)Dimensions:2.5 mtrs (H) x 1.35 mtrs (W) x 1.35 mtrs (Depth)Input power supply: 3 phase with regulated voltage and neutral• Power consumption : 4.5 Kw/hr• Cooling water: 180 lt/hr at 15 to 20 deg. C• Accurarcy : +0.5% of Qty packed• Filling range : 2000ml to 6000ml• Float balance tank: 70 ltrs• Pouch width: 280 mm• Min and max pouch length: 200 to 420 mm• Film width:590mm• Film roll dia(max) 350 mm• Film : LDPE• vertical seal: 4.0mm band• horizontal seal: 4.5mm band

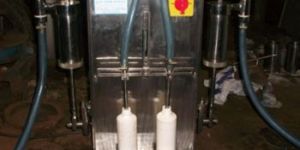

Semi Automatic Volumetric Liquid filling machineThe filling machine will be operated Semi automatic type with preferably 2 or 4 heads with diving nozzle type to avoid foaming during filling process. •Filling Heads - 2 Heads• MOC - SS 304• Machine Body Frame-MS Frame Cladded with SS 304• Bottle placing Platform - Sheet SS tray provided with adjustable clamp for bottle placement during filling operation.• Output / Minute -For 1000ml – 2 to 4 fills per minute (Depending on the nature of liquid and its fill size or volume & Operator Skill ) • Power Characteristics-440v 3 Phase 50Hz 4 Wire System• Input (Container Dia / Height)-16mm Dia to 30mm Dia/ Height 100mm Max.• Filling Volume Capacity - 1000 ml• Filling Accuracy - ±1 %• Net Weight - 100 kgs• Machine Length - 500mm• Machine width - 600mm• Machine height - 680mm

SEMI-AUTOMATIC SINGLE HEAD SCREW CAPPING MACHINE Semi Automatic Capping Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of Process OperationBottles to be capped are manually fed & manually unloaded ,In the capping process bottles are placed exactly below the rotating capping head along with the caps on it.The sealing head has inbuilt vertical movement by virture of which the bottle with cap placed below it gets tightened.Machine Specification• Output/Hour - 1000 to 1400 bottles (depends upon operator skill)•No. of sealing head - 1 Nos.• Electrical Motor - 1 HP / 440 Volts / 3 Phase / 50 Hz • Overall Dimension - 1100 mm (L) x 740 mm (W) x 1320 (H) Approx.• Net Weight - 180 Kgs. Approx.• Change parts required - Cap Die,Star wheel,Shute if cap diameter change.

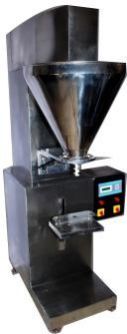

Semi Automatic Milk powder filling machine is used in packing flour, spices, milk powder, dyes powder and detergent powder. Semi Automatic milk powder filling machines are of precise engineering with low maintenance and long working life. Semi Automatic milk powder filling machine is highly accurate and offered in various specifications to fulfill varied requirements of clients. Application :• Flour, Spices, Milk Powder, Dyes Powder, Detergent Powder etc.Specification : • Range 10 grm to 1000 grm.• Speed 100 to 400 fills / hours• Fill Control Timer based / Weight based• Packing material Bottle, Jar, PouchFeature : • Simple in design, Easy to operate & maintain, Highly accurate, Stainless Steel Covering (Optional)

• Machine name - Pneumatically operated semi automatic lug capping machine• Capping capacity - Upto 55 mm dia. Cap• Output - 20 cpm• Air Consumption - 2cfm@5.5 bar• No of Cylinders - 2 nos.• Power consumption - 230 vac,50 hz,0.5 Kw• Machine size - 15”(L) x 15”(W) x 25”(H) Technical Specification: • Direction of Movement Left to Right•No. of Sealing Head 1 No.•Electrical Main Motor 1 HP / 415 Volts / 50 Hz.• Specification - Cap Feeding Bowl 300 Watt.Height of Conveyor**850 mm to 950 mm.1)Depends on bottle size, cap size and type of cap.2)Can be customized to suit customer requirement3)With the help of change parts.Speed 10 per minute. Salient Features:• Adjustable height of conveyor belt.• All contact parts are made out of stainless steel.• Adjustable Torque . Low noise & power consumptions

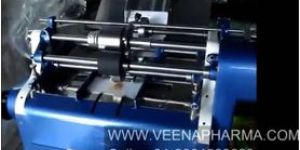

• Output: 30-40 bottle per minute depending on product & label size• Label Height: 8 mm. To 70 mm• Label Length: minimum 12 mm. To unlimited• Core Dia: 75 mm• Label roll dia: 300 mm• Gap between two labels: 3 mm. Approx.• Electrical load: 220 VAC single phase power supply (50/60 hz)• Power: 1. 2 amp•Batch coding with 3 lines characters available.

SEMI-AUTOMATIC SINGLE HEAD SCREW CAPPING MACHINE Semi Automatic Capping Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is motorized incorporating rotating threading & sealing rollers, for threading & sealing of Process OperationBottles to be capped are manually fed & manually unloaded ,In the capping process bottles are placed exactly below the rotating capping head along with the caps on it.The sealing head has inbuilt vertical movement by virture of which the bottle with cap placed below it gets tightened.Machine Specification• Output/Hour - 1000 to 1400 bottles (depends upon operator skill)•No. of sealing head - 1 Nos.• Electrical Motor - 1 HP / 440 Volts / 3 Phase / 50 Hz • Overall Dimension - 1100 mm (L) x 740 mm (W) x 1320 (H) Approx.• Net Weight - 180 Kgs. Approx.• Change parts required - Cap Die,Star wheel,Shute if cap diameter change.

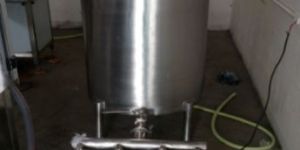

Milk Feeder tank is sturdy built in complete SS 304 with wall thickness 1.5mm and has SS lid as top cover.The tank has a capacity of holding 500 liters milk.At the bottom of the tank a T-connector is attached having six outlet valves with individual valve control knob."Technical specification:• MOC: SS 304•Tank size: 800mm(Dia) x 1500mm(H) X 1.5mm(Thick)• Outlet valve size: ¾" four valves• Note : The tank can be customized for 2/4/6/8 head filling machines or as per customer requirement.

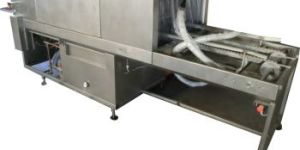

Capacity : 1800 Crates per hour Used Water from Bottle Washer duly filtered: • Length : 1700 mm • Volume (Direct from Bottle washer) : Nil • Nozzles : 24 No. • Pump : 10 HP (Client supply) Hot Water Treatment Area : • Length : 1650 mm • Volume : 360 Lts. •Nozzles : 24 No. • Recirculating Pump : 10 HP Drive System: • Main Tunnel Motor : 0.75 hp • Outfeed Conveyor Motor : 0.75 hp (CLIENT SCOPE) • Infeed Conveyor Motor : 0.75 hp (CLIENT SCOPE) Dimensions :• 7500 mm (L) X 1650mm (W) X 2750mm (H) • Infeed Height Inclined (from – to) : 900 / 2400 mm • Outfeed Height : 600 mm Fresh Water Temp. : Ambient Washing Tem. : 52o C. Hot Water

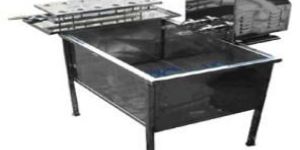

semi automatic bottle brushing and washing/rinsing machine is suitable for all kinds of bottles, vials, jars etc. It consists of following units.brushing unit: available in 2 or 4 heads. Have ss covered body and robust construction. Rotating chucks are provided to hold the brushes of suitable size for brushing the bottles.rinsing unit: each unit is made out of ss304, consists of 12 ss rinsers. Valve is provided for controlling flow of water. Leak proof construction. Whole unit is constructed over a drainage tray to avoid spillage of water out of tank. Rubber corks are provided over rinsing tray to avoid chipping of bottles.ss tank with sink: brushing and rinsing units are fitted on the ss tank. Waste water is stored or can be drained out by using sink. The whole structure is made out of 16 gauge ss.motor drive: 1hp, single phase.output: up to 30 bottles with 2head, 1 rinsing unit.

We deals in lug capping machine, Specifications: • Machine name - Pneumatically operated semi automatic lug capping machine • Capping capacity - Upto 55 mm dia. Cap • Output - 20 cpm • Air Consumption - 2cfm@5.5 bar • No of Cylinders - 2 nos. • Power consumption - 230 vac,50 hz,0.5 Kw • Machine size - 15”(L) x 15”(W) x 25”(H)

Semi-Automatic Rotary Curd/lassi/Yogurt/Water Cup Filling & Sealing Machine ( Timer Based )• Machine is suitable to fill upto 700-900 cups per hour, of 100 cc. to 500 cc.• The machine is suitable for filling various products like yogurt,Curd,water,Lassi (All Free flowing material without any particles can be packed on weight basis.)The machine is designed with splash proof filling nozzle.• Filling speed is adjustable to avoid tail/Splashing of the product.• Filling quantity can be adjusted with help of time base flow control device.The cup filling machine is equipped with following stations:• Cup Feeding station- Manual• Filling station ( Gravity Filling) - 1• Foil placing station - 1• Heat sealing station - 1• Ejecting station - 1Optional Facility if required at an extra costAll contact parts are made of SS-304 or food grade material.• Filling Quantity :100 cc To 500 cc• Output :700-900 cups/hr.NOTE: Output depends upon product, quality of cup and foil.• Round Cup : Max Rim 75 mm & Height 90 mm.• Drive : Mechanical Cam Driven• Power Reqi. : 3 ph, 415 V AC, 350 Htz.

Model available in various capacities per batch as follows:• 480 bottles - 30 bottles in a basket, 4 basket in a row,top 2 rows, bottom 2 rows,(120 X4 Rows) • 720 bottles - 36 bottles in a basket,5 basket in a row,top 2 rows, bottom 2 rows,(180 X 4 Rows) • 1080 bottles -36 bottles in a basket,5 basket in a row,top 2 rows, middle 2 rows,bottom 2 rows,(180 X 6 Rows)   • 1512 bottles - 36 bottles in a basket,6 basket in a row,( 216 X 7 Rows)

Flavored Milk Bottle Washing Machine

Double Side Sticker Labeling Machine For Flat Bottles

Customer satisfaction and timely deliveryTraining all employees at all levels and getting the work done right for the first and every time Understanding every employee potential and train him with the best in his domain Matching pace with the changing trend in technology and continuously update quality and performance of our products Planning of manpower,available resources & technology efficiently to match customer requirement.

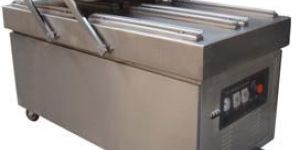

Double Chamber Vacuum Packing machine

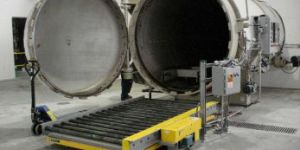

We are dealing in bottle sterilizer, Model available in various capacities per batch as follows: • 480 bottles - 30 bottles in a basket, 4 basket in a row,top 2 rows, bottom 2 rows,(120 X4 Rows) • 720 bottles - 36 bottles in a basket,5 basket in a row,top 2 rows, bottom 2 rows,(180 X 4 Rows) • 1080 bottles -36 bottles in a basket,5 basket in a row,top 2 rows, middle 2 rows,bottom 2 rows,(180 X 6 Rows) • 1512 bottles - 36 bottles in a basket,6 basket in a row,( 216 X 7 Rows)

The volumetric filling machine is designed preferably with 2/4/6/8/12 heads with diving nozzle type to avoid foaming during filling process.• Machine MOC - SS 304 Conveyor has inlet & outlet ends of the machine with variable speed to synchronize with the filling machine speed.• The conveyor tailing width is adjustable.• Cladding of the machine is in S.S.304• Filling accuracy range - ± 1 % on volume• Filling head height - adjustable.• Main motor 1 HP,440Volt Conveyor Motor ½ HP. with suitable Gear box of std. make• 4 head speed will be 14-16 bottles per minute on 1 litre• 4 head speed will be 22-24 bottles per minute on 500 ml• 4 head speed will be 28-30 bottles per minute on 250 ml• 4 head speed will be 35-40 bottles per minute on 100ml

• Label Height: 15-90mm• Label Length: 20-180mm• Gap between Two Labels: Min. 5mm • Label Roller Diameter: 300mm • Max Core Diameter: 75 mm to 76 mm • Container Diameter: 20 mm to 90 mm
