Self Priming Pump Dealers in Thane

• Type: Automatic
• Weight: 50-100kg
• Voltage: 220V
• Power: 1-3kw
• Warranty: 1 Year
• Pump Power: 5Hp
• Pump RPM: 1400, 2800

• Brand Name: grey
• Storage Capacity: 100 - 40000 L

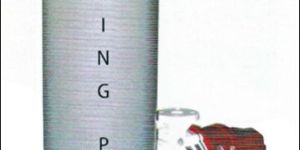

Details : Suitable for 3 to 5 mtr. negative suction lift. Fabricated from PPH for higher strength. Top cover makes maintenance easy. Fabricated with in-buift strainer to arrest coarse impurities. Inlet & Outlet size to match pump suction flange size. Special Size and High Capacity Pot On Request.

• Impeller: Cast lron/ SS - 316,SS - 304 / Bronze or as per request
• Pump Casing: Cast Iron/ SS - 316, SS - 304 Bronze or as per request
• Shaft: EN-8/SS - 316, SS - 304 or as per request
• Mechanical Seal: Carbon Vs. Ceramic / Tc Vs Te with NBR / Viton / PTFE
• Capacity: UP 270 M3 /Hr.
• Suction Head :: UP TO 8 MTR
• Head: UP TO 57 MTR
• Solids: UP to 24 MM Dia

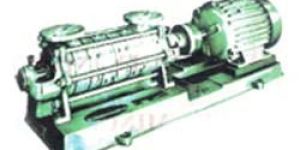

The htc range of pumps are lateral channel pumps with open impellers. The impellers run between two intermediate casings of which one is plain disk with suction opening and other incorporates a lateral channel ending in the discharge opening, it also incorporates a small de airing channel. This principle has the effect of the handling medium being transported in a screw like manner from suction to delivery, this movement is accelerated with the discharge head increasing. The higher the discharge head, the more frequent liquid enters the cell of the impeller and levels on the other side. Between the liquid in the impeller (in the impeller cell) and the liquid in the lateral channel, a steady impulse takes place until the liquid leaves through the discharge opening. The principle of energy absorbed by the liquid in a lateral channel pumps gives us a characteristic of linear curves and is several times that of a true centrifugal pump.

• Capacity: Upto 250M3/hr
• Delivery Head: upto 48 mtr
• Sunction head: upto 9 mtr
• Discharge Size: 40 to 150 mm
• Solid Size: Upto 25 mm
• Temperature: Upto 65° C
• Speed: Upto 3000 / 1500 rpm(50 Hz)
• M. O. C.: CI.,CS.,SS 304 / 304L, SS 316,316L, Bronze
• Voltage / Phase: From 180-240 volts for single phase & From 380-440 volts for three phase
• Mechanical Seals: Double

• Motor Phase: Single Phase
• Material: Cast Iron
• Weight: 5 kg
• Warranty: 12 Months

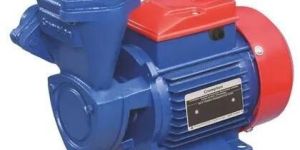

• Model Name/Number: Mini Xtraa
• Brand: Crompton
• Phase: Single Phase
• Power Source: Electric
• Speed: 2000RPM
• Voltage: 240 V
• Engine Horsepower: 1 HP
• Mounting Type: Floor Mounted
• Frequency: 50Hz
• Maximum Discharge Flow: 1800 LPH
• Maximum Head: 54 m
• Operating Temperature: 65 DegreeC
• Pipe Size: 25x25 mm

Investa Pumps offers its Self Priming Pumps in Vertical Construction for majorly solvents transfer handlings from the Tank Farms to the Charging vessels. This is majorly found in a lot of Active Pharma Ingredient Units. Advantages of Self Priming Pumps » A large vertical pump chamber acts as a Self-Priming Pot. It has turbine type of fully open impeller for very efficient clear solvent handling. Can be kept in a flameproof environment. Can take a negative suction lift up to 3-5mts. Investa offers them with a trolley mounted arrangements and so can be mobile in operations. Can cover a horizontal distance of 40-45mts. Comes with a drain valve arrangement. A fully SS-316 body can be provided for various solvents (methanol, toluene, xylene) handling. Since its construction being vertical in-line with suction and discharge in one line there is no use of axial or thrust bearings and can be used for a very efficient horizontal transfer of Bulk Drug operations. Investa offers these pumps out Investment Casting processes to have minimum casting rejections in heavy walled Casting chamber so as to deliver much quicker to the customers. As the production of Bulk Drugs increases day by day and Project completion time for these companies worldwide reduces every day, the Investa Vertical Self Priming Pump helps in the fastest way whether it is Solvent Tanker Loading Unloading operations or transferring solvents from the Tank farms to the Charging Vessels.

• Pressure: 40 M Head
• Brand Name: CNP
• Max Flow Rate: 200 LPM - 5000 LPM
• Liquid temperature: 5C to 40C
• Frequency: 50/60 Hz
• Material: Cast iron body
• Spherical clearance: 80 MM

Head Range UP TO 6 - 45 METERS   Flow Rate UP TO 1800LPM - 800LPM   Delivery Size UP TO 0 - 40   Bore Size 15 X 25MM   Power Rating 0.37 - 1.10 KW (0.50 - 1.50 HP) 1 PHASE

• Capacity: 50-1100m3/hr

 Minivac SVR & SVRD series Side Channel Blowers are well known names in fields like Plastics, Printing, Packaging, Pharmaceuticals, Foods, SPM and many more.  The impeller rotors without any contact with the casing thus, eliminating wear & has thereby making their models.  Any lubrication 100 % maintenance free & ideas for round the clock operations.  SVR & SVRD Series & Blowers do not requires any lubrication thereby making them environmental friendly.  Blowers available with single & double stage opinion.  Flameproof models available at request of the clients.  Additional accessories like air filters, tape, starters, vacuum & pressure relief valves available.
