Shital Enterprises Thane West, Maharashtra

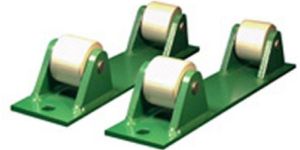

Trunnion Roller Support helps in the proper placement of tonners and to rotate the ton container easily for positioning the gas valve. The tonners are to be placed in such a way that both the valves are in vertical alignment. Roller support help in emergency condition to rotate the tonner.

Size : Standard

Material : Stainless Steel

Thickness : 10-15mm

Length : 100-200inch

Application : Industrial

Grade : ASME, BS, DIN, IS

Finishing : Polished

Self - Contained Air Breathing apparatus are very essential for heavy toxic leaks. Manufactured as per IS: 10245, Part-II. Available in 30 minutes or 45 minutes duration with all Test Certificates.

Application : Breathing Use

Warranty : 1yrs

Ambient : 0-180 Deg C 180-360 Deg C

The switches are specially designed for Chlorine service. Range : 1.5 to 15 bar and 0.4 to 04 Kg/Cm². Vacuum Switch range : -01 to 0 bar and -1000 to 0 mm WC. Also available for water service ; Range : 0.6 to 06 Kg/Cm2.

Packaging Type : Box

Application : Compatible Gases

Specialities : Precisely Designed, Durable

Material : Metal

Surface Finishing : Polished

Media Type : Gas

The container pressure of chlorine varies between 8-10 Kg/Cm2, which is very high to either meter or doze accurately. Hence a pressure reducing valve is used in the system. This valve is capable of reducing the pressure of chlorine to manageable limit of approximately 2 Kg/Cm2. The pressure reducing valve is spring loaded with PTFE diaphragm. This valve prevents the reliquification in the system.

Material : Metal

Application : Gas Fitting

Feature : Casting Approved, Durable

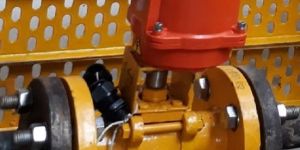

These are electrically operated ball valves. The actuator is quarter turn rotary type fixed on the ball valve.

Material : Metal

Application : Industrial

Power : Electric

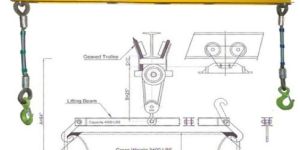

The lifting beam is very essential for safe handling of chlorine container. This can also be lifted with a dynamometer to weigh the ton container. It is made of ISMC 125 and solid steel hook. High tensile bolt hold the hook. It has maximum load capacity of 03 tons.

Application : Industrial

Feature : Easy To Use, Heavy Weight Lifting

Surface Treatment : Powder Coated

Load Capacity : 3 Tons

Warranty : 2years

The blower shall suck the leaked chlorine gas along with air and deliver the same to the Absorption Tower. The Pump shall pump the 20% caustic solution to the top of the Tower. The caustic flows down through the Pall Ring dumped packing. The chlorine gas that flows up, meets the caustic counter-currently in the packing area. Chlorine is absorbed in this process.

Material : Metal

Feature : Accuracy, Durable

Warranty : 1Year

Gas Type : Chlorine Gas

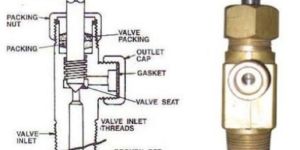

It is strongly recommended that isolation valve assemblies be used on all container connections. This will greatly reduce the chances of chlorine leaks and increase the lifetime of the flexible connectors. Isolation valves are also used to prevent air and moisture from entering the flexible connectors and manifold piping. If moisture is allowed to enter the manifold (usually during changing of containers) this can lead to serious corrosion inside the manifold which then causes equipment failures and additional maintenance.

Packaging Type : Carton

Specialities : Durable, Casting Approved

Material : Metal

Finishing : Polished

Warranty : 1 Year

Type : Isolation Valve (IS-3224 Header Line Valve)

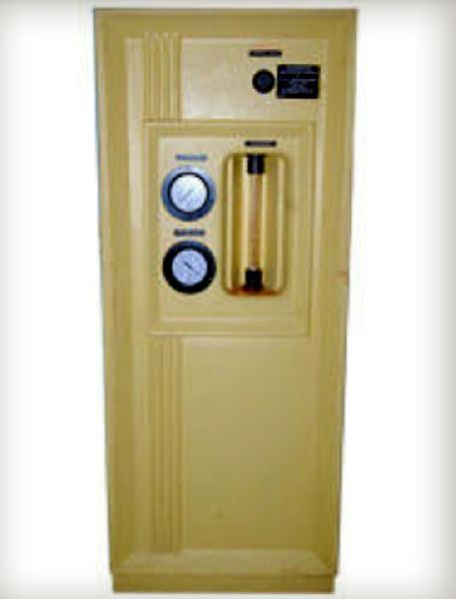

Shital Model No (Ranges from FMR-1000 to FMR-3000) is the advance technology Chlorinator designed to feed chlorine gas at a controlled rate. The flow rate of gas is maintained by constant positive acting spring-opposed diaphragm regulators.   Vacuum Regulators Operate on diaphragm backed by Monel spring vacuum regulator remotely mounted on manifold consisting of electrically operated heater for smooth flow of gas in cold climate; and as such, system remains under vacuum condition till dosing point.   Differential Regulator (optional): Maintains stedy flow rate and maintains constant vacuum beteween rate valve and flow meter.   Rate Setting : Manual adjustment at the rate valve located on differential regulator body along with flow indicator.   Capacity : 10 Kg/hr to 120 Kg./Hr. or 10,000 P.P.D. (Pounds/Chlorine per 24 Hours)   Range : Within the basic 120 Kg./Hr. Capacity, the SHITAL Chlorinator is capable of operating overflow ranges from 20 to 1,which are dependent upon the type of flow meters used.   Water Requirement : The water supply flow rate and pressure requirement depend upon the maximum Chlorine capacity and back pressure at the outlet of the ejector. Back pressure includes the pipe functional losses between SHITAL Chlorinator and the point of application, plus existing back pressure at the point of application.   Semi Automatic Operation : The Chlorine regulator will permit gas flow only when the ejector furnishes sufficient vacuum. To operate the Chlorinator, it is necessary to initiate the ejector water flow. To stop Chlorinator, it is necessary to interrupt the water flow. This 'On/Off' operation makes Chlorinator semiautomatic. it can be accompanied by opening and closing of a solenoid valve in the injector water line.

Feature : Durable, Stable Performance

Frequency : 50Hz, 60Hz

Warranty : 1Yr

Brand Name : Shital

Highly Precise Electronic weighing scale for chlorine tonner with 6 Digit LED Display An ISO 9001:2008 Approved (Export Quality Material) & Advance microprocessor based design with weight and Measurement approved with GOVT CERTIFICATE Hook type Load Cell Platform type Load Cell

Application : Chlorinator

Weight : 10-20kg

Feature : Durable, High Accuracy

Display Type : Digital

Power Source : Electric

Material : Metal

Application : Gas

Feature : Durable, Easy To Handle

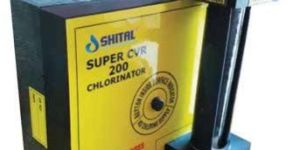

Remote Meter A gas flow meter shall be provided to indicate the gas flow rate. The gas flow meter shall be suitable for wall mounting. This gas flow meter shall be equipped with a control valve for manual feed rate adjustment. Flow meter tubes shall indicate flow rates up to _______ and down to a minimum of 1/20 of the maximum value.   Shital Model System SUPER CVR 700 - 0-2 kg/hr (100 PPD) SUPER CVR 500 - 5 kg/hr (250 PPD) SUPER CVR 200 - 10 kg/hr (500 PPD)

The flexible copper connector is used with Cylinder, Tonner , Header and Chlorinator to form the required connection. This connector comes with a standard length of 1.5 Mtrs. with end fittings suitable for ton container valve. The silver brazing of end connectors offer a long corrosion free service.

Material : Copper

Application : Fittings Use

Grade : DIN, ETDC

Feature : Easy To Connect, Superior Finish

Warranty : 1year

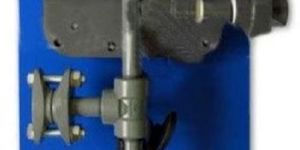

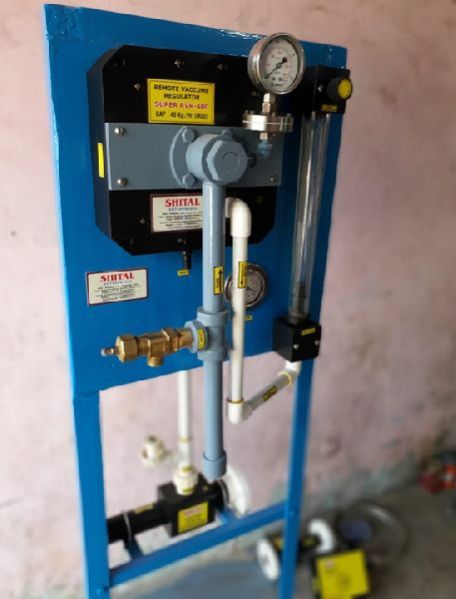

Remote wall panel mounted Vacuum regulator, Vacuum is controlled by a spring opposed diaphragm via which via the throttling action of the inlet connected valve, reduces the gas from a varying supply pressure to constantly regulated vacuum for safe transport to the point of application.   Pressure relief is provided by a spring loaded diaphragm actuated pressure relief valve The Pressure relief Valve Will be open when the inlet Pressure is excessive. The inlet Valve does not shut off and no vacuum is being Created or is over come. The pressure relief Valve is Connected to the vent. The regulator is equipped with a gas pressure gauge to provide local indication of gas supply status. The pressure gas inlet connection incorporates a lead seal, filter assembly and liquid trap with pad heater

Material : Metal

Brand Name : Shital

Type : Remote Vacuum Regulator

Warranty : 18 Months

Capacity : 1-120 Kg

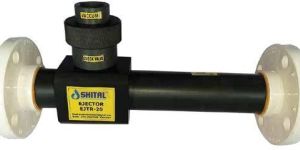

Brand Name : Shital

Model Number : EJTR-20

Body Material : Metal

Surface : Polished

Packaging Type : Box

Application : Industrial

Voltage : 220V

Display Type : Remote

Automatic Grade : Automatic

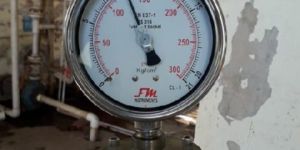

The gauges are specially designed for Chlorine service. Great Chlorine resistance Material with Hestalloy-C Range : 0-16 Kg/Cm² & -760 mm Hg to 0. Also available for water service ; Range : 0-10 Kg/Cm2

Packaging Type : Corrugated Boxes

Connection : Bottom Connection, Back Connection

Dial Size : 2 Inch, 4 Inch

Application : Measuring Gas

Specialties : Robust Construction, Measure Fast Reading

Material : Metal

The manifold is constructed out of ASTM A 106 Gr. B 20 NB seam-less carbon steel pipe with forged fittings and flanges of ASTMA grade. The manifold is supported on an angle iron which is firmly grouted to the floor. The manifold is fitted with manifold valves which are as per IS 3224. The manifold valves are used to connect the tonner in use or isolate the tonners which are not in use. The manifold is also provided with a pressure gauge with an isolating valve.

Application : Gas

Feature : Long Life, Rust Proof

Warranty : 1year

Finish : Polished

Material : Stainless Steel

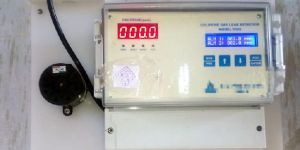

The Chlorine gas detection system consists of a control unit and a sensor. The Sensor mounted remotely senses the gas present in the room, which is indicated on the panel. Apart from the audio visual alarm present in the panel, there is a potential free contact which can be used to trigger a remote alarm or actuate the exhaust fan.

Material : Metal

Application : Industrial Use

Feature : Accuracy, Durable

Display Type : Digital

Warranty : 1Year

Gas Type : Chlorine Gas

Type : Single Sensor Leak Detector, Double Sensor Leak Detector

A filter is always mounted on the gas phase of the chlorination system to eliminate the carry over of Ferric Chloride and other impurities. The filter has a glass wool insert. The gas filter is constructed out of seamless carbon steel , Monel Mesh & SS-316L Pipe

Packaging Type : Carton Box

Overall Weight : 50-80 Kg

Specialities : High Quality, Durable

Material : Metal

Application : Chlorinator

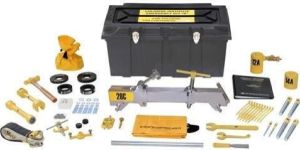

Emergency General Tool Kit to stop gas leakage from Tonner /Cylinder inclusive of all the parts as per our catalogue (detailed in separate part list ) collectively packed in steel box size: 36” X 16” X 11” weighting 70 K. g. approximately (Use for Hazardous Gas i.e. Chlorine, Ammonia & Sulfur Dioxide etc.)

Type : Cylinder Kit

Packaging Type : Carton

Valve Size : 1.1/2inch, 2inch, 3/4inch

Specialities : Investment Casting, Durable, Casting Approved

Material : Metal

Finishing : Polished

Mounting Type : Vertical

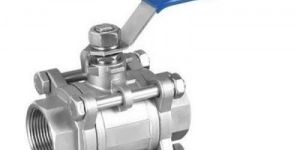

Manufactured as per BS EN ISO 17292. These valves are of three piece design. The end connection is socket weld. The body is made of carbon steel and the ball is made of Hastelloy “C” / Monel 400. The stem is bottom entry, providing maximum safety. This design ensures that stem blow-out does not take place, safe guarding personnel working in its vicinity and preventing chlorine gas from leaking out.

Material : Carbon Steel

Application : Water Fitting

Feature : Casting Approved, Durable

The Gas Mask with Canister is designed to enable the wearer to breathe fresh air in a contaminated atmosphere. These are applicable for small leaks only. The gas mask incorporates exclusive design features conforming to IS: 8523: 1977. Canister type respirators must never be used in atmosphere containing less than 16% oxygen.

Application : Industrial

Feature : Adjustable, Comfortable

Pattern : Headloop

Material : Plastic
