Shrink Wrapping Machines Dealers in Thane

Machine Features Roller Conveyor Accurately Controlled Tunnel Temperature Compact Size Fixed/Varible Conveyor Speed Suitable for SHRINK PVC / LDPE ect film   Application Pesticide Bottles Pharmaceutices Bottles Textile Yarn / Cones / Cheese & Fabric Rolls Sewing Thread Plastic House-holdware

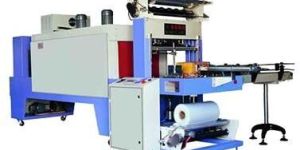

Infeed section The products are fed to the infeed conveyor of the machine . As the products collate at pusher area, the line stopper stops the product and the line sensor get actuated. Once the system assures enough accumulation of products, signaled by the product accumulation sensor, the gate valve actuates and holds the upcoming products and clear the infeed gate. After a delay the pusher pushes the collation through the curtain of film to make the sleeve. Sealing and Film Feeding Section The Sleeve Wrapper uses two rolls of single wound. The film unwinding is by motorised with dancing bar arrangement. The sealing system consists of a Special sealing system suitable for P.E.films. Once the product reaches sealing zone, the top hold down plate will come down and holds the product and then the vertical sealing arm will get actuated to seal the film and completes the wrapping operation. Once the seal is made, the sealing arm get retracts. The product is pushed into the infeed conveyor of the Shrink Tunnel by the driven outfeed conveyor. Shrink Tunnel The shrink tunnel is used to circulate hot air around the pack as it moves on the conveyor. The air from inside of the tunnel is sucked and blown on the heater (finned type). This re-circulated air comes on the pack from all sides, top bottom thereby giving a uniform shrink to the pack. During the first quarter of the tunnel, the film gets hot air only from the bottom and then from all sides. This helps in shrinking PE film well and helps to pull the seal to bottom of unit. Once the unit moves out of the hot chamber, then cool air is thrown on the unit to achieve a tight cling on the unit and it cools the unit.

• Brand Name: Hilda Automations
• Capacity: Multiple
• Color: Silver
• Usage/Application: commercial
• Packaging Material: Plastic
• Automation Grade: Automatic

• Specialities: Eliminates the need for paper box to cushion the bottom of products being packed.

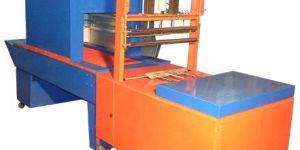

We offer a comprehensive range of fully automatic PLC based shrink wrapping machines, which is used in shrink wrapping applications across industries. Available in fully automatic operational specifications, we can also customization our range to meet specific requirements of our clients. These PLC based shrink wrapping machines are used for packaging of number of products. Big single products.ther will be one roll on top and another roll on bottom. Both roll will be sealed manually , then put into automation . product will be pushed one by one through the film and will be sealed , and will enter into shrink tunnel automatically, for skin tight wrapping finish.

• Size: 20” X 16” X 16”

Total machine body will be made in M.S. control panel given for websealer and shrink machine.LDPE Shrinkable Film Roll of Single Layer 70 TO 90 microns 550mm width.1 no PMDC motor, 1 no Gear Box, 1 no Speed Drive, 1 no AC Blower Motor, Variable Speed approx 5 to 8 job per minute.

Salient Features :   Shrink wrapping machine is majorly used to wrap objects with film Shrink tunnels are of different sizes to apply on various product sizes Shrink wrapping machine is consited of shrink tunnel of 8 to 36 “ tunnel size in width. Shrink tunnels are widely used to wrap objects with shrink sleeves. Shrink warpping machine can be used as sleeve labelling machine to apply sleeves on packaged drinking water,glass bottles. Shrink sleeve labelling is major use of shrink tunnel to get better labelling machine accuracy. Different types of shink tunnels can be designs to apply sleeves on bottles with various shrink wrapping machines. Shrink packaging is a method of applying skin tight labelling on bottles. Shrink wrapping equipments are widely used in food packaging & pharmaceutical packaging. PVC shink labelling machine and Pvc shrink sleeve applying is similar machine applications. Shink tunnel is suitable for PVC shink labelling and Pvc shrink sleeve applying .   Applications :   Boxes, jewel boxes, bottles, jars, metal components, stationary, can etc.

• Type: Shrink Wrapping Machines
• Voltage: Standard
• Condition: New
• Usage: POF films only
• Film: Customized
• Packaging Material: Paper
• Automation Grade: Automatic

For pallet loads which would be stored outdoors it is necessary that the entire pallet is made dust & moisture proof. Machines are custom built depending upon pallet dimension with respect to lenght, width, height & weight

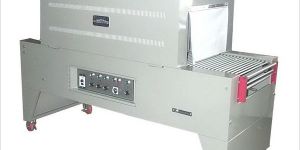

Place the bottle with the printed sleeve inserted on it, on the roller of the machine. This roller will take the bottle inside the shrink wrapping tunnel. Here the label/ sleeve will be shrink wrapped to the bottle by using the heating principle. After which the bottle will out of the machine from the other side.   SALIENT FEATURES : *   Over backed heat resistant power coated used. *   Heavy duty turbo blower for effective and efficient hot air circulation. *   Teflon mash conveyor idol for group shrink wrapping.(Bottle,box,etc) *   Auto temperature control. *   Fully Heavy duty power coated tunnel covers and electric panel board. *   Class insulation provided with glass wool and asbestos/calcium silicate, sheet for machine panel and silicon tubing for conveyor rods. *   Lading and cooling zone provided as standard feature as outlet. *   Specially designed S.S Tubular finned heater for heater for minimum power consumption and maximum heat transfer. TECHNICAL SPECIFICATIONS : APPROXIMATE M/C DIMENSION :   1.6 L X 1m W X 1.2m H POWER REQUAIREDMENT :   1HP/380V/3PH TURN TABLE GEARED MOTOR :   0.25HP Non-flameproof MAIN DRIVE GEARED MOTOR :   0.5HP Flameproof AIR REQURIED :   80PSI/6KG BAR MOC :   ALL Contact Parts made out of S.S304 l and other by S.S304 PRODUCTION CAPACITY :   35-40 BPM APPROXIMATE TOTAL WEIGHT :   200KG. CAPING MOTOR :   Pneumatically Operated FILLING CAPACITY :   2-25ml OPERATORS REQUARIED :    3 person a) One person for placing empty on turn table &    collect Ready bottles.b) One person for ball placing.c) One person for cap placing.

Semi Automatic Shrink Wrap Machine is more suitable to any form or type or design like box, bottles irrespective of shape. The semi automatic shrink wrap machine is more suitable for low speed production lines for both pharma and food industries and for other respective applications. The required collation and matrix forming will take place on collation plate which placed near to web sealer section. Once the required matrix formation gets completed ,manually push the matrix pusher on to  welding area and take back the pusher . The delay signal gets activated by sensor and gives the signal to  seal bar accordingly seal bar comes down and sealing and cutting operation gets completed After the sealing and cutting operation seal bar ascends, the manual pusher advances to transfer the  collation into the welding position, at the same time displacing the previously wrapped collation onto continuously moving shrink tunnel conveyor. The wrapped collation soon enters the shrink tunnel chamber where recirclulated hot air causes the wrap to shrink and tightly conform to the contours of the contents. Once the pack is out of the hot chamber , forced air cooling is used to tighten sleeve wrap to achieve a strong, secure pack ready for stacking on pallet or a placing on a shipping carton.

We are engaged in offering a comprehensive range of Shrink Tunnel that offers superior performance, easy operation and precise functioning to our clients.

We are engaged in manufacturing and supplying of automatic shrink wrapping machine.
