Special Purpose Pump Dealers in Thane

• Brand Name: SUTECH PUMPS
• Material: PP
• Application: LIQUID TRANSFER
• Power: 4 BAR
• Pressure: 4 BAR
• FLOW RATE IN LPM: 25
• MAX HEAD IN METER: 30
• OUTLET AND INLET SIZE: 1/2 INCH

max flow rate :      23lpm (6gpm)port size :     inlet: 12.70mm (1/2" bsp)discharge: 12.70mm (1/2" bsp)air inlet: 6.35mm (1/4" bsp)air exhaust: 12.70mm (1/2" bsp)suction lift : dry: 1.45m (4.75') wet: 2.83m (9.28')teflon : dry: 0.05m (1.64') wet: 0.90m (2.95')max particle size (dia) : 2mm (0.078").

• Type: Air Operated Diaphragm Pump
• Application: Acidic Material, Barrels, High Viscous Liquid, Slurry Transfer
• Weight: 6 - 68
• Color: Grey, White
• Condition: New
• Driven Type: Air Operated
• Pressure: 0-10Bar
• Warranty: 1yr
• Pipe Size: 0.5Inch, 1.5Inch, 1Inch, 2Inch
• Automation Grade: Manual
• Flow Rating: 0-500LPM
• Brand Name: Airtech Pumps
• Material: SS/PP/PVDF / Aluminium

We good design more power saving pump parts design seal used in pump is from very good brand life of plastic parts are more due to injection moulding.

The Fluorinated Polymer are widely appreciated for their remarkable chemical inertness and their excellent resistance to ageing. POLYVINYLIDENE FLUORIDE (PVDF) offers the specific advantage of easy processing in accordance with all the convection methods used in the plastic industry. PVDF, polymerized, according to its own special process, offers a high degree of crystallinity to that by other processes, resulting among other things, in superior thermomechanical properties. The intrinsic technical superiority is one of the reasons for the success which PVDF has achieved on the world market for more than 20 years. Easy processing by : extrusion, injection, compression, rotational moulding, blow moulding etc. Chemically inert to most acids, aliphatic and aromatic organic solvents, alcohals etc. Very high purity. Excellent mechanical properties over a wide range of temperatures : tensile yield strength up to 55 MPa at 23°C and 10 MPa at 150°C. Abrasion resistance comparable to that of polyamides, and relatively low coefficient of friction. Continuous use at temperatures as high as 150°C for the homopolymer grades (without mechanical stress). Excellent thermal aging resistance : tensile yield strength retention over 90% after 25,000 hours at 150°C in a ventilated oven. Unaffected by UV (>232nm) and good resistance to gamma radiation. Excellent intrinsic fire resistance. Very easily joined by welding and good capability for thermoforming. Physiologically harmless and approved for contact with food products (FDA).

• Type: Automatic
• Certification: CE Certified
• Pressure: 21 Bar
• Flows: 340 M3/h
• Heads: 153 m
• Temperature: -29 Deg. C

• properties: Resistance to most chemicals and solvents

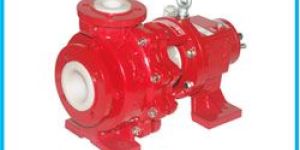

The thick walls casing liner and back plate is of Poly Vinyli Dene fluoride [PVDF] Casing liner is covered in a standard shell of cast iron. Casing Liner and Back Plate are solid injection molded in our factory at Valsad. The impeller provided is semi-open type. A large metal insert in the PVDF impeller greatly increases its mechanical strength and provided long life of service. Bearing Pedestal includes a rigid shaft of high strength Stainless Steel EN-8 EN-19EN-24EN-41 and a double row ball bearing with extremely high load capacity. Envelope gasket provided is of Poly Tetra Fluoro Ethylene [PTFE] with EPDM rubber insert to ensure maximum sealing.

• Pressure: 30 bar
• temperature: up to 400° C

Type HT high temperature pumps are high temperature pumps suitable up to 400° C. These pumps differ in construction from basic pumps, as pump and motor are separated thermally by an adaptor which prevents heat transfer from the pump to motor area. In these pumps, an independent circulating system using same liquid being pumped with cooling jacket and heat exchanger is provided. The circulation is achieved with the aid of an auxiliary impeller mounted at the fore end of the motor chamber. The cooling arrangement permits the motor and bearings to operate at temperatures much lower than the processed fluid.

• Brand Name: CNP
• Head: Max. 60 m
• Max Flow Rate: 0.5 to 28.0 m3/hr
• Liquid Temperature: 15 C to 110 C
• Voltage: 220V / 415V
• Material: Stainless Steel 304 / 316
