starter panel Dealers in Thane

• Condition: New
• Power Source: Electric
• Type: Soft Starter Panels
• Input Voltage: 110V
• Country of Origin: India
• Benefit: Low Power Consumption
• Usage/Application: Motor Starter

• Brand Name: GLOBAL
• Material: MS
• Application: ELECTRIC CONTROL PANEL
• Packaging Type: PLASTIC WRAPPING
• Customization: YES
• Usage/Application: ELECTRIC CONTROL PANEL

In the world of electrical engineering and industrial automation, the star delta control panel is a fundamental component. This sophisticated system plays a pivotal role in managing the operation of electric motors, particularly in scenarios where there is a significant difference between the motor's starting and running currents. In this descriptive exploration, we delve into the essence, functions, and applications of the star delta control panel, highlighting its importance in ensuring efficient and safe motor operations. Introduction to the Star Delta Control Panel: At its core, the star delta control panel is a control mechanism employed for electric motor starters. Its purpose is to reduce the high inrush current drawn during the motor's startup phase. This transition from a "star" connection during startup to a "delta" connection during continuous operation is what distinguishes this panel from other control systems. By doing so, it optimizes the motor's performance, minimizes stress on electrical components, and increases overall system longevity. Key Components and Operations: The star delta control panel comprises several critical components that work in unison to facilitate seamless motor operation: Main Contactor: This is the heart of the system, responsible for connecting and disconnecting the motor from the power supply. During startup, it connects the motor in a star configuration to reduce inrush current. Delta Contactor: Once the motor has reached a certain speed, the main contactor switches the configuration to delta. This minimizes voltage drop and ensures efficient, lower-current operation. Timer: An adjustable timer is a crucial element in the star delta control panel. It determines the duration of the star connection, allowing the motor to reach a sufficient speed before transitioning to delta. Overload Relay: This component provides motor protection by monitoring current and activating a protective shutdown in case of excessive current flow. Control Circuit: The control circuit, often designed using relays and push buttons, enables manual or automatic operation, depending on the specific requirements of the industrial process. Operating Sequence: Understanding the operation sequence is essential for comprehending the star delta control panel's function: Start: When the motor is initiated, the panel connects it in a star configuration. This allows the motor to start with reduced current and, consequently, lower mechanical and electrical stress. Acceleration: During the star configuration, the motor accelerates. The timer ensures that this phase lasts long enough for the motor to reach a certain speed, typically around 80% of its rated speed. Switch to Delta: Once the timer elapses, the system switches to the delta configuration. This configuration offers higher torque, making it suitable for the motor's continuous operation. Running State: The motor continues to operate in delta configuration until it is manually stopped or encounters an abnormal condition detected by the overload relay. Applications: The star delta control panel is employed in various industrial settings and applications: Heavy Machinery: It is commonly used in industries with heavy machinery like conveyor systems, crushers, and compressors where motors require reduced starting currents to prevent electrical and mechanical stress. Pumping Stations: Water and sewage treatment plants often use star delta panels to control pumps and ensure a smooth start to prevent pipe bursts or other mechanical issues. Air Conditioning and HVAC: In air conditioning systems, the panel helps manage the startup of large compressor motors, improving system efficiency and reducing voltage fluctuations. Manufacturing: Industries with conveyor belts, mixers, and other machinery benefit from this panel to reduce wear and tear on equipment.

An Auto transformer starter uses an auto transformer to reduce the voltage applied to a motor during start. The auto transformer may have a number of output taps and be set-up to provide a single stage starter, or a multistage starter. Typically, the auto transformer would have taps at 50%, 65% and 80% voltage, enabling the motor to be started at one or more of these settings. The slip ring induction motor has two distinctly separate parts, one is the stator and other is the rotor. The stator circuit is rated as same in the squirrel cage motor, but the rotor is rated in frame voltage or short circuit current. These motors are usually started with full line voltage applied across its terminals.

• Country of Origin: Made in India
• Power Source: Electricity
• Type Of Motor: 3 Phase
• Brand Name: Schneider
• Body Material: Mild Steel
• Application: Industrial
• Color: Ral-7032/7035
• Voltage: 220-380 V
• Frequency: 50-60Hz
• Automation Grade: Automatic

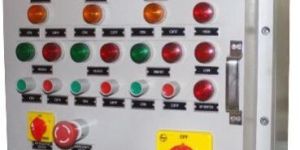

FLAMEPROOF / WEATHERPROOF STAR DELTA STARTER PANEL

dc motor starter panel, Instrumentation Panel, Intelligent mcc panel

soft starter panels, Motor Control Centre, power control centre

dc filter chokes
