STEEL-SMITH Vasai, Thane, Maharashtra

we offer Toggle Clamps.

We offer Toggle Clamps. What is a Toggle Clamp? Toggle clamp is a simple Mechanism which holds instantly. The Toggle Clamps Consist of a handle to operate, a Clamping Arm to Reach the work piece, linkages for multiplying the applied force, and a base for mounting at the workplace on it’s base. The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively.

We are manufacturing more than 1200 Toggle Clamps & other Clamping devices .

We offer swing clamp. Steel-Smith introduces India's biggest range of Swing Clamps having clamping capacity range from 20 kgs. To 1600 kgs. The unique single cylinder design powers both the swing & force cycles eliminating the bulkier, two-cylinder concept that requires one cylinder for the swing motion and another cylinder for the force cycles. Gives you more force in less space with less parts. Loading and unloading of the job is very easy due to the swing action. Cross Section View of Swing Clamp Direction of Rotation Clamping arm Profile Pin Port for unclamping Port for Clamping Clamping Force 90 �°CW (R) Clamp in Open Condition 90 �°CCW (L) Clamp in Open Condition Clamp Condition Work Piece Clamping arm 2 Ports for Clamping & Unclamping Clamping Force Cross Section View of Link Clamp Stroke to swing Stroke to clamp Swing Stroke Clamp Stroke Features Opening of Link Clamp In Vertical Swing clamping cylinders the clamping arm swings vertically to give the required clamping and unclamping action. Can be used to clamp low profile work pieces. Can produce larger clamp force than Swing Clamps in the same bore size. There are two types of Clamping Cylinders.

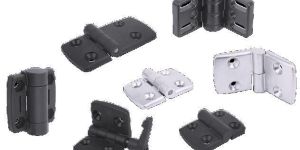

We are manufacturing Hinges in aluminium , plastic . & other metal object .

We are the main supplier of this product.

Material : Metal

Length : 2inch, 3inch, 4inch, 5inch

Color : Black, Silver

Feature : Fine Finished, Rust Proof

Appearance : Antique

Application : Cabinet, Doors, Window

Finishing : Polished

We offer Heavy Duty Toggle Clamps. Model No: HV - 1200 - 1A Arm: Solid Arm with weldable bush. Base: Straight Nominal Holding Force: 1200 Kgs. Weight: 1.800 Kgs.

Brand Name : kipp

We offer Pneumatic Toggle Clamp. What is a Pneumatic Toggle Clamp? A Pneumatic Toggle clamp is a basically a Toggle Clamp actuated with a double acting pneumatic cylinder. The Clamps consists of a double acting cylinder, a clamping arm, linkages for multiplying the applied force, and a base for mounting at the workplace on its base. Air pressure in applied in the clamping port, which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively. To unlock the clamp the air pressure is applied in the unclamping port.
