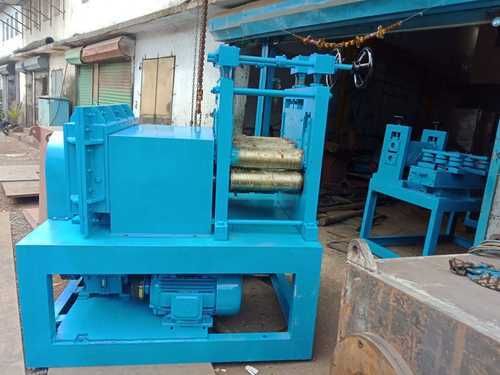

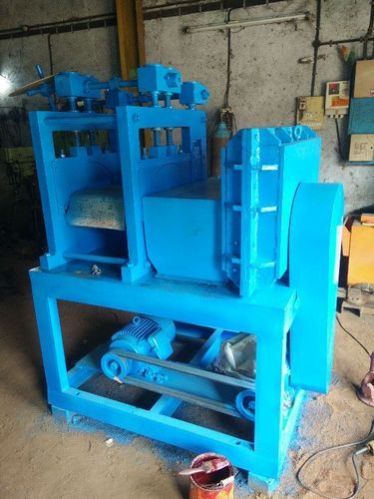

COIL STRAIGHTENER
Get Price Quote
We are offering coil straightener.
Features
* the units are fabricated from steel and the straightener rolls are properly fixed and aligned in machine and ground housing.
* onetwo sets of drive pinch rolls are provided as required.
* all the feed rolls & bottom rolls are driven, while top rolls have individual adjustments.
* all the rolls are made of special alloy steel material hardened, ground, chrome plated & are housed into precision needle bearing sealed at both ends.
* upper straightening rolls are independently adjustable and once set, gang adjustment can be done for repeat operations.
* gang adjustment of top roller blank for straightener with more number of rolls & for straightener of lesser thickness range.
* roll setting scale on side platesdial gauges in some models.
* entry guides.
* exit cascade rolls.
* control panel with suitable loop control system to maintainloop of coil for the machine via antenna type loop controls limit arm through limit switches.
* fixed line speed variable line speed above 15 mtr. min.
