Suyog Scientific & Electricals Thane West, Maharashtra

We provide a wide range of Water Still which has been manufactured from highly updated technologies with a great care known for features like long life and corrosion resistance. Our offered products are in high demand due to their qualities like ease of installment, reliability and long lasting nature. Features : • This unit is made up of complete S.S. 304. • Designed to provide pyrogen free distilled water of very high degree of purity. • Ease wall mounting Condenser cave be opened easily for periodic cleaning. • The still is fitted with immersion type heating element. • It is provided with iron bracket to be fixed on the wall. • Easy replaceable heating elements. • The lid perfectly rest and get inside the collar on head of the tank. • Which avoids loss of steam and jumping of lids. Application : • General laboratory purpose water distillation plant.

Our superior water bath is highly efficient in which water is used as medium of heat transfer and heating is conducted through electric heaters. We are identified as one of the reputed water bath manufacturers. We provide water bath with separate digital temperature controller cum indicator or flameproof digital temp controller or as per the requirement of the clients. specifications :  these bath are combination of high heat transfer with excellent in heat capacity & uniformity of behaviour.  double walled in construction with inner of heavy gauge s.s. & exterior of g.i. Sheet finished in epoxy powder coated shade.  available in construction with inner & exterior with heavy gauge s.s. Matt finished in gmp model.  high grade glaswool insulation in between the walls to minimize the heat loss.  heating is by immersion heaters.  temperature controlled by energy regulator control or electronic digital temperature contoller cum indicator.  temperature range : 500c to 3000c.  working on 230 volts, single phase, 50 hz. capacity rating 10 ltr 2.0 kw 20 ltr 3.0 kw 50 ltr 6.0 kw 100 ltr 8.0 kw 200 ltr 12.0 kw

We are offering vacuum oven applications : the units are improved with excellent uniformity for drying & heating under carefully controlled conditionsfrom atmospheric pressure to vacuum upto 30” hg. They facilitate powder drying, desiccating, vacuum embedding & electronic component processing. technical specificatons :  heating elements are made from best quality nichrome wire are given around the chamber for uniformity of temperature covered with blankets.  a door with thick toughened glass giving superb visibility into the chamber which is sealed with silicon gasket.  high quality glass wool insulation is provided to minimize the heat on the body.  available in standard model and gmp model.  inner chamber made of stainless steel 304 & exterior made of g.i. Sheets powder coated in standard model.  inner & exterior made of stainless steel 304 matt finish in gmp model.  temperature controlled by electronics microprocessor based pid digital temperature controller.  vacuum levels are controlled between 1” and 30” hg.  long lasting silicone gasket for perfect sealing of door.  temperature range : 500c to 2000c  temperature resolution : 10c  accuracy : +/- 20c vacuum oven (round) : chamber size temp range 9”dia x12” (depth) 500c to 2000c 12”dia x15” (depth) 500c to 2000c 15”dia x18” (depth) 500c to 2000c vacuum oven (rectangular) : chamber size in inches no. Of shelves 12”x12”x12” 2 14”x14”x14” 2 14”x14”x20” 3 18”x18”x18” 3 18”x18”x24” 4

We are offering flexible heating tape. these are used to maintain temperature of liquids flowing through pipelines. specifications :  electrical heating tape is used to maintain temp. In pipes, glass columns, condensors etc.  maximum working temp. 2500c.  heating tape size : 45 mm in width, 12 – 15 mm thich.  length : in metrick length.

We are offering heating jacket. these jackets are used for processing kettle, storage tank, drums etc. It can heat liquids upto 3000c. The heating elements of the jackets is perfectly insulated by glass sleeving. Fiberglass cloth is used for heating surface, thick gauge m.s. Sheets is used for outer casin, heating jacket is lagged with glasswool insulation with maximum thickness to achieve high efficency. a separate temperature control unit is provided with temperature control regulators, switches and pilot lamps etc. Electric heating jackets are tailor made as per requirement. Send us the following details about your requirement. over all size of the vessels – height, length, diameter etc. Of the same the liquid to be heated in the same the maximum temperature to be heated in the jacket. heating jacket used in the chemical plant for the s.s. Vessel capacity 300 lit. The jacket has three heating parts. a separate temperature contrl unit with electronic digital temperature controller with pt 100 as sensor is also provided.

We are offering laboratory vertical autoclave. construction double walled construction fully made of stainless. Steel top cover is die pressed to domed shape, supporting flange is made of thick s.s. Flat entire joint argon arc wielded & grounded to smooth bur free finish. The autoclave is supported on the s.s. Legs. It is supplied with two safety valves, pressure gauge, steam release valve & s.s. Basket & drain valve at bottom. The autoclave is supplied digital temp controller with inbuilt timer, low level cut off device, with auto purging system with solenoid valve. The autoclave is hydraulically tested for one & half times the operating pressure. temperature range: upto 1230c. operating pressure: 15 & 18 psi. working size rating 12” dia x 20” ht 3.0 kw 12” dia x 20” ht 3.0 kw 12” dia x 20” ht 4.0 kw 12” dia x 20” ht 6.0 kw optional accessories  three point temperature scanner with data logger and printing arrangement  digital indicator of pressure.

We are offering drum heaters drum heater provide an easy, efficient, clean & economical way for the handling of viscous or low melting point solidified materials in drums. Such materials include asphalt, bitumen, fats, gelatin, glucose, grease, lubricating oils,paints, petroleum jelly, phenols, plastics, sodium tar, vegetable oils, varnishes, waxes etc. drum heaters are mobile ovens heated by flexible surface heaters made from imported nichrome 80/20. They are made in rugged designs and stand normal usage in chemical industries. They can be used for heating the contents of drum kept in the vertical or horizontal positions. The content may either be melted completely and rmoved as a liquid, or they may be melted only at the surface touching the drum walls and removed as a solid block by tilting the drum. the heating in drum heater is gentle and uniform, and there is no chance of local overheating. base heater for drum is also available. technical specification : • inner dimeter : 2 feet • maximum surface temperature : 2500c • capacity : 200 ltr. • type of control : energy regulator or digital contoller • input power : 9 kw • input supply : 440 v three phase ac application : • chemical industry • oil heating • tar heating

We are offering bacteriological lab incubator. with the assistance of skilled and dedicated professionals, we bring forth comprehensive range of technically upgraded range of bacteriological incubators. our products are available with adjustable controllers and are used in biological activities. These products are available with customized and standardized options and are specially designed to keep the diverse requirements of scientists and research scholars. features: • double walled construction inner chamber made of stainless steel ss 304 and outer chamber made of mild steel duly powder coated surface. • in between two walls sufficient glass wool insulation to minimize the loss of temperature. • temperature range 50c above ambient to 600c • temperature control accuracy +/- 0.50c • temperature is controlled by thermostat / microprocessor based digital temperature controller with pt 100 sensor • heating by the aid of micrometer wired elements fixed at the inner bottom side of the unit. • main door with glass window to view the samples kept inside fitted with ball & latch type lock. • removable type stainless steel perforated trays will be supplied along with the unit. • power supply 220-230 volts ac single phase chamber size in inches no. Of shelves 12”x12”x12” 2 14”x14”x14” 2 18”x18”x18” 3 18”x18”x24” 4 24”x24”x24” 4 24”x24”x36” 5 highly recommended: motorized blower for air circulation ensure the uniformity of the temperature throughout the chamber. documents provided: nabl calibration certificate for temperature controller. memmert models: specifications same as above, but the heating elements are fixed at two vertical sides of the inner working chamber. gmp models: specifications same as above, but with inner and outer chamber both made of stainless steel ss 304 grade.

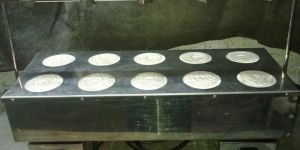

We are offering Soxhlet extraction type heating mantle for research laboratories. This type of apparatus consists of independent heating manthesof multiple sizes flasks 50 ml, 100 ml etc. specifications :  this mantle has individual on / off switch and pilot lamp with individual energy regulator is provided for temperature control.  glasswool is used for the insulation.  working on 230 volts, single phase, 50 hz.

We are offering muffle furnace is light weight with ceramic fibrewool insulation and fast heating equipment. This muffle furnace is mostly used for ashing, fashions, lgniting and heat treating of small parts in chemical, industrial field and colleges. specifications :  outside body made up of heavy gauge m.s. With powder coated and inner muffle with high temp. Insulating material.  maximum working temperature is 9300c/11300c.  temp. Controlled by digital temperature controller cum indicator.  heaters are made of nichrome wire, uniformly wound on the muffle.  control panel fitted on bottom of the units with indicating lamps, switches, digital controller and sensor.  a special solid state silver fuse is used for protection to heater in case of overheating.  working on 230 volts, single phase, 50 hz. size in inches rating 9”x4”x4” 1.6 kw 10”x5”x5” 2.0 kw 12”x6”x6” 3.5 kw 18”x9”x9” 6.0 kw

Our superior laboratory oil bath is highly efficient in which thermal oil is used as medium of heat transfer and heating is conducted through electric heaters. We are identified as one of the reputed laboratory oil bath manufacturers. specifications :  these bath are combination of high heat transfer with excellent in heat capacity & uniformity of behaviour.  double walled in construction with inner of heavy gauge s.s. & exterior of g.i. Sheet finished in epoxy powder coated shade.  available in construction with inner & exterior with heavy gauge s.s. Matt finished in gmp model.  high grade glaswool insulation in between the walls to minimize the heat loss.  heating is by immersion heaters.  temperature controlled by thermostate or electronic digital temperature contoller cum indicator.  temperature range : 500c to 3000c.  working on 230 volts, single phase, 50 hz. capacity rating 1 ltr 1.0 kw 2 ltr 1.0 kw 3 ltr 1.5 kw 5 ltr 1.5 kw 10 ltr 2.0 kw 20 ltr 3.0 kw

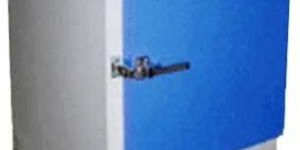

We are offering hot air oven. Specifications :  double walled construction inner chamber made of mild steel / st. Steel and exterior g.i. Sheets powder coated.  the gap between two walls filled with glasswool insulation to avoid heat loss.  temperature controlled by electronic digital temperature controller cum indicator with pt 100 as sensor.  supplied with g.i. Wiremesh shelves.  temperature range : 500c to 4000c accuracy +/- 20c.  working on 230 volts, single phase, 50 hz. chamber size in inches no. Of shelves 12”x12”x12” 2 14”x14”x14” 2 18”x18”x18” 3 18”x18”x24” 4 24”x24”x24” 4 24”x24”x36” 5 optional accessories : • forced air circulating system with fan for better uniformity. • s.s. Wiremesh shelves.

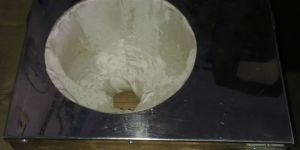

We offer a comprehensive range of heating mantles that are widely used to heat flask containg a sample. Fiberglass cloth is used for heating surfaces and fitted with heating element. Insulated with glasswool to reduce heat loss. technical specification :  this mantle provides maximum surface temperature of 4000c.  heating element are insulated with glasswool to reduce heat loss.  temperature controlled by energy regulator.  working on 230 volts, single phase, 50 hz. size watts 50 ml 60 100 ml 85 250 ml 150 500 ml 200 1 ltr. 300 2 ltr. 450 3 ltr. 450 5 ltr. 600 10 ltr. 1200 20 ltr. 3000 50 ltr. 3500 100 ltr. 7200 200 ltr. 9000 heating mantles with digital temperature controller is also available.

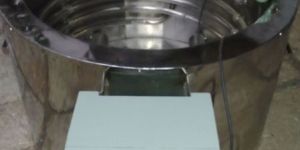

We are offering flameproof water bath, our superior flameproof water bath is highly efficient in which thermal oil is used as medium of heat transfer and heating is conducted through electric heaters. We are identified as one of the reputed oil bath manufacturers. We provide oil bath with separate digital temperature controller cum indicator or flameproof digital temp controller or as per the requirement of the clients. specifications : *these bath are combination of high heat transfer with excellent in heat capacity & uniformity of behaviour. *double walled in construction with inner of heavy gauge s.s. & exterior of g.i. Sheet finished in epoxy powder coated shade. *available in construction with inner & exterior with heavy gauge s.s. Matt finished in gmp model. *high grade glaswool insulation in between the walls to minimize the heat loss. *flame proof material submersible heaters are available for oil bath. *heaters are fabricated flame proof by covering the various heating element with s.s. Tube insulated with m.g.o. Powder. *s.s. Cooling coil is connected to the bath that assures faster cooling of the materials in the bath. *ptr 100 ohms sensor is available in the sensor for the exact measurement of temperature. *digital controller provides exact control and avoids overheating of material that saves the energy. *cooling coil is tested at the 2 kg/sq. Inch pressure. capacity wattage rating 20 ltr. 3 kw 440v 50 ltr. 4 kw 440v 100 ltr. 8 kw 440v 200 ltr. 12 kw 440v

We are offering bod incubator. these incubators are designed especially for close control of incubation/storage temperatures. These are used for bod tests, storage of sensitive cultures, vaccines etc. Culture of bacteria microorganism and plant life, serum incubation studies and immunological work etc. features: • double walled construction • inner chamber made of stainless steel ss 304 (non magnetic, non corrosive) • outer chamber made of mild steel duly powder coated surface • in between inner and outer chamber sufficient glass wool • insulation provided to minimize the loss of temperature • temperature range 50c to 500c • temperature control accuracy +/- 0.50c • motorized blower assembly provided for forced air circulation to ensures the uniformity of temperature throughout the chamber • temperature is controlled by digital temperature indicator cum controller with pt 100 sensor (microprocessor based) • full view inner door (acrylic) to view the samples kept inside without losing chamber temperature • refrigeration system consists of hermetically sealed ‘emerson’ make compressor • condenser fan motor and tubings etc • refrigerant used r 134a non cfc • caster wheels for ease of movement • stainless steel perforated trays removable type capacity internal dimension (l x w x d) 1.5 cu ft 45 ltr 35 x 35 x 35 cms 3 cu ft 90 ltr 45 x 40 x 50 cms 6 cu ft 170 ltr 50 x 50 x 70 cms 10 cu ft 280 ltr 55 x 55 x 90 cms 12 cu ft 330 ltr 60 x 60 x 90 cms documents provided : calibration certificate for temperature controller, instruction manual & warranty card. gmp models: specifications same as above, but with inner and outer chamber both made of stainless steel ss 304 grade.
