Syrup Making Machine Dealers in Thane

At Shashvath Fabricators and Engineers, we manufacture and supply Liquid Syrup Manufacturing Plants across the country. Only a single person is needed for operating this machine, which helps in saving money, time and labor. Specific heating and cooling vessel are equipped for internal vacuum in order to regulate translocation of sugar syrup. PLC controls are available for controlling various operations in accordance with the parameters including agitator speed, pressure and temperature.   Application & Process : SHASVATH has been designed & manufacturing preparation vessels and has consolidated a process knowledge concerning sterile injectable solution, dispersions, ophthalmic products, syrup and suppositories.   Preparation Vessels & Tank : Extremely hygienic processing. Least manual handling. Design compliance with cGMP Capacity up to 5,000 Liter. Product Contact AISI 316L Atmospheric, Vacuum or Pressure Operation. Jacket for heating & cooling. Vessel Inside Pressure (-1 /+3 Bar) Heating Jacket Pressure (-1 /+6 bar) Heating by steam or hot water circulation. Thermal Insulated. Mechanicals or Electro polishing of internal surface. Welded, flanged or hinged type cover Integrated Cleaning in Place-CIP. Sterilizing In Place-SIP as an Option. Portable execution on request. Validation protocols & Instrumentation celebration.   Variable Speed Agitation : Agitator can be top or bottom driven or magnetically driven. Propeller type, Anchor type provided with High speed disperser or rotor-stator homogenizer. Single or double mechanical seal.   Fully automatic Liquid Syrup Manufacturing Plant consisting of : Sugar Charging / Transfer System. Sugar Melting Vessel with mixing stirrer. Basket Filter & Transfer Pump. Syrup Manufacturing Vessel with stirrer. Inline Homogenizer. Zero Hold up Filter press. Storage Tank with stirrer. Interconnecting pipeline. Transfer Pumps. Integrated automatic control panel. Working Platform.   Turn Key Process Line : For production, filtration, transfer and storage solution. Pre reparation vessels. Inline homogenizer. Inter Connecting Pipe Solid or sugar Charging System Working Platform.   Unique Features Of The Facility : The liquid oral manufacturing plant is designed to be operated by one operator and one helper, saving on precious man-power costs. Sugar syrup and manufacturing vessels are provided with limpet coils for heating and cooling, designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vessel. Sugar syrup is transferred to manufacturing vessel through online sugar syrup prefilter by vacuum. Entry of all propeller agitators are from bottom through a specially designed cartridge mechanical seal with TC/TC seal face. The advantage of the bottom propeller agitator over the conventional agitator is that there are no vibrations of shaft, no couplings in the drive assembly, leading to lower maintenance cost for liquid oral manufacturing plant. Pipes, pipe fittings and valves are of SS 316, seamless, internally electropolished with DIN standard unions and silicon Gaskets. Manhole of all the vessels are equipped with davit fitting and the cover of the manhole slides instead of being lifted.   Automation available, appropriate for the intended process function, including CIP and SIP : Controls of all function by PLC Controls with HMI Touch screen. Level controls by means of capacitance probe or electronic load cells. Digital indication and controls of all process parameters for Process time, agitator speed, temperature, pressure & level.   Capacities Available : 500 litres 1000 litres 1500 ltrs 2000 ltrs 3000 ltrs 5000 litres.

• Condition: New
• Warranty: 2 Years
• Capacity: 1000 Ltr to 50000 Ltr
• Material: Stainless Steel

Details : The plant is designed to be operated by one operator and one helper, saving on precious man-power costs. Sugar syrup and manufacturing vessels are provided with Jacket for heating and cooling, designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vessels. Sugar syrup is transferred to a manufacturing vessel through online sugar syrup pre-filter by vacuum. Entry of all propeller agitators are from bottom through a specially designed cartridge mechanical seal with TC/TC seal face. The advantage of the bottom propeller agitator over the conventional agitator is that there are no vibrations of the shaft, no couplings in the drive assembly, leading to lower maintenance cost. Pipes, pipe fittings and valves are of SS 316, seamless. Internally electropolish with TC unions and silicone Gaskets. Manhole of all the vessels are equipped with davit fitting and the cover of the manhole slides instead of being lifted. Brilliant's Process Control Values like current product temperature are displayed digitally on the electrical control panel. The mechanical seal is equipped with a water circulating system and has a water detection sensor which trips the motor, if the water circulation to the seal is interrupted. Load Cell & PLC System also provided on Client Request

We keep the finished assortment of products in the highly developed and capacious storage unit. This helps us in keeping the products safe and sorted till the final dispatch. We share a forefront with the famed organizations, supplying superior quality Syrup Manufacturing Plant at affordable rates.Salient Features : Extremely hygienic processing Least manual handling. Design compliance with cGMP Capacity up to 100 ltr to 10,000 liters. Product Contact AISI 316L Atmospheric, Vacuum or Pressure Operation. Jacket for heating & cooling. Vessel Inside Pressure Heating Jacket Pressure Heating by steam or hot water circulation. Thermal Insulated. Mechanicals or Electro Polishing of internal surface Welded, flanged or hinged type cover Integrated Cleaning in Place - CIP Sterilizing In Place - SIP as an Option. Portable execution on request.

The liquid manufacturing plant is a set of equipment designs for the manufacture of syrup, liquid oral formulations and other water based pharmaceutical products. The liquid manufacturing plants are ideal tool for the pharmaceutical industries for the production of oral liquid. It is specially designed to take care of two critical factors which directly affects the quality of the liquids. Minimum man-handling of liquid and effective hygiene during manufacturing. It also provides the benefits of the effective manpower utilization.    Key Features           50 ltr. – 30,000ltr. Batch mixers Complete untouchable process CIP / SIP able All wetted parts are of SS316/316 L Quality material. All pipelines are seamless & internally Electro polished. Sugar Changing Done under Vacuum. All transfer done under Vacuum. The Sugar syrup and manufacturing vessel are provided with limpet coils for heating and cooling and are designed with internal vacuum to facilitate transfer of sugar direct from stores to the sugar syrup vessel. The entry of all propeller agitator is from the bottom, through a specially designed mechanical seal face. The advantages of the bottom propeller agitator over conventional agitator are that, it includes no vibrations in the shaft and no coupling in the drive assembly, leading to lower maintenance cost. Inline filters to ensure filtration Inline Homogenizer is provided for making suspensions, with recirculation. Transfer Pump provided to transfer ready products to filling line. Load cell of accurate weighing FLP system can be provided (Optional)   The Facility Consist of       Side Vessel (Premix) Online side Vessel Prefilter Manufacturing Vessel and Storage vessel Vacuum system to transfer contents of side vessels to manufacturing vessels Product Piping Control Panel Transfer Pumps Batch size 50 Ltr. To 30,000 Ltr. Recommended for   Cough Syrup Drop Solutions Expectorant Suspensions

We are renowned for engineering Syrup Manufacturing Plant designed as per CGMP and other international standards. These Syrup Manufacturing Plants are fitted with all the latest machinery and equipment. Our Syrup Manufacturing Plant is also used for the automatic processing of ointments, creams, lotions or tooth pastes, etc. These Syrup Manufacturing Plants are engineered with precision to offer high efficiency. Features Manufactured under CGMP standardContact parts are made of SS316 Easy to assemble, fit and cleanPower and energy saving, as it is designed to be operated by one operator and one helperCrystal clear filtration obtained by zero hold up filter pressEntry of all propeller agitations is from bottom through a specially designed mechanical seal facePLC control panel ensures automatic operationThe sugar melting vessel is designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vesselSugar syrup is transferred to manufacturing vessel through online sugar syrup pre-filter (Basket filter) by vacuum / pumpThe advantages of the bottom propeller agitator over conventional agitators – there is no vibration of shaft, no coupling in the drive assembly, leading to lower maintenance cost, to reduce the overall height of tankPipes, pipe fittings are of SS 316, seamless, internally electro-polished with silicon gaskets Availability Optionally equipped with CIP & SIP facility and load cell for online weighting Inline Homogenizer can also be optionally provided Available In Various Batch Capacities From 500 liter to 5000 liter Documentation Documentation like DQ, IQ OQ, & FAT will be provided with the Machine

Specifications Syrup Plant widely used in pharmaceutical, chemical, food, plastic, sugar, confectionary, etc POWERTECH INDUSTRIAL EQUIPMENTS Offer - Syrup Plant About POWERTECH INDUSTRIAL EQUIPMENTS Powertech Industrial Equipment, have brought in both experience and the requisite skills into the organization. Owing to the hard work and efforts put in by these professionals, Powertech Industrial Equipment are able to design and develop a broad range of Hydraulic Products. Clients can contact us for availing Double Door Autoclaves, Lab Autoclaves Autoclave and Steam Sterilizer, Beveling Machine, Condenser and Boiler Tube Cleaners, Tube Installation Tools, Hydraulic Cylinders, Oil Seal, Bolting Tools, Silicon Rubber Sheet, Rubber Gasket, Rubber Sheet and Steam Sterilizer. In our product line, we also have Hydraulic Products like Hydraulic Nut Sterilizer, Hydraulic CNC Chuck, Hydraulic Cylinders and Hydraulic Power Packs. All these products are appreciated for features like sturdy built, compact design, anti-corrosive body and ease of installation and usage. POWERTECH INDUSTRIAL EQUIPMENTS also deals into: # Machinery and Accessories.

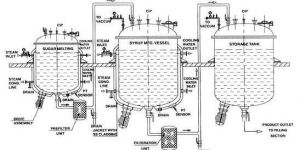

We are major Manufacturer and Supplier of Syrup Manufacturing Plant, based in Maharashtra. These Syrup Manufacturing Plants are being manufactured as per cGMP standards. Syrup Manufacturing Plants is widely appreciated for their high-precision and quality. Moreover, we ensure timely delivery of Syrup Manufacturing Plant that too within the specified timeframe. The Plant Consist Of : Sugar Melting VesselManufacturing VesselStorage VesselTransfer PumpWorking PlatformInline Homogenizer / Colloid Mill (Optional)Pre-Filter (Basket Filter)Complete Piping for PlanControl Panel

The Liquid Syrup Manufacturing Plant, offered by us, is precision engineered and intricately made. It is fabricated by our qualified and experienced team of professionals incorporating premium metal and sophisticated machines. It is provided by us with top entry stirrer. The platform is made up of top quality stainless steel for easy operations. Not only small but we can deliver even the bulk orders within the stipulated timeframe. Highlights : MOC : SS 304/SS 316 /SS 316L Capacity : 50 Ltrs to 10000 Ltrs Plant can be equipped with CIP & SIP system Fully automatic & semi automatic mode can be provided Least manual handling Ss Platform with Railing for Easy Operation
