Tansa Equipments Private Limited Louis Wadi, Thane, Maharashtra

TANSA make Single Limb Well Type Manometer is used for direct reading for the precision measurement of pressure, vacuum, differential pressure, flow and liquid level measurement device ideal for various process applications. These Manometers are general purpose, direct reading and relatively simple instruments. The well type single limb manometer is accurate & reliable as well as highly versatile for many applications. All scales are graduated to correct for the drop in the well level.

Various Materials of Constructions :- MS SS304 SS316 Brass.Clear Acrylic Cover Provides visibility From 3 sides, Suitable for on line Installation, Ranges between - 26 - 260 to 185 - 1850 NLPH of Air,

Orifice plate is the heart of the Orifice Meter. It restricts the flow and develops the Differential Pressure which is proportional to the square of the flow rate. The flow measuring accuracy entirely depends upon the quality of Orifice plate, its installation and maintains.

Very nominal cost compared to other flow elements, First Principle Device - Which never Fails, Proven Solution for Flow Measurement, Suitable for All Pipe Sizes from 12’’ to 36’’ .

Orifice flange it indicates the existence of Orifice plate. Details such as Tag NO Orifice ID Pipe ID Plate Material are stamped on one side of the tag plate which faces upstream side of the pipe line. Outside diameter of the orifice plate equals to PCD-1 Bolt Dia. This ensures the concentricity with the main pipe line. The other method to maintain the concentricity is by using sleeves on the bolts or by providing dowel pins on the Orifice Flanges.

Metal tube rotameter is basically a variable area flowmeter. The diffrential pressure across the annulus area is constant and the Flowrate is measured as a function of the position of annulus area created by float position. The position of the float is sensed by a magnet and indicated On the dial in terms of flow rate.

Accuracy : +/- 2% Of Full Scale

The difference in the height indicates the amount of vacuum. The U Tube Manometer, consisting of two Glass Limbs. Stainless Steel Brass Connecting fittings mounted on a metallic frame, provided with White Acrylic Scale with zero at the center. The U Tube Liquid Column Manometer we provide is used to determine Velocity and Static Pressure, Leakage, Fan Efficiency and Gas Pressure. The Manometer will be protected with transparent acrylic front cover fix with Aluminum frame and external zero adjustment Knob Drain Plug Fill Plug will Be Provided.

It is used to measure the level of fluids. Fabricated using superior quality basic material by employing advanced machinery and sophisticated tools, these products compiled to the defined parameters of the industry in an efficient manner. These magnetic level indicators are mainly used in the hazardous pressurized vessels. Therefore, customers can avail these offered products from us in multifarious sizes and specifications as per their requirement.

Type : Magnetic Level Indicator

Material : Alloy Steel, Brass, Stainless Steel

Application : Testing Water Level

Color : Black, Grey, Silver

Feature : Accuracy, Easy To Fit, Perfect Strength

Condition : New

Display Type : Analog, Digital

Automatic Grade : Automatic

Magnetic level indicators are used to measure the level of fluids. Fabricated using superior quality basic material by employing advanced machinery and sophisticated tools, these products compiled to the defined parameters of the industry in an efficient manner. These magnetic level indicators are mainly used in the hazardous pressurized vessels. Therefore, customers can avail these offered products from us in multifarious sizes and specifications as per their requirement.

Magnetic level gauge to measure the level of fluids. Fabricated using superior quality basic material by employing advanced machinery and sophisticated tools, these products compiled to the defined parameters of the industry in an efficient manner. These magnetic level indicators are mainly used in the hazardous pressurized vessels. Therefore, customers can avail these offered products from us in multifarious sizes and specifications as per their requirement.

Magnetic flow meter virtually approaches the ideal flow meter suitable for wide range of liquid flow measurements even with very low conductivities. The meter offers no resistance to flow hence the pressure drop is almost negligible. The measurement being based on Faraday’s law of Electromagnetic induction, is independent of viscosity, density, pressure & temperature of flowing medium. The measurement is not affected by solid impurities as long as the min. conductivity of 5 scm is available. It is a true volumetric flow measurement. We offer various materials of construction for meter lining & electrodes to cover majority of corrosive liquids.

LT panel board is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution boards. Such panels are used in industries both for internal and external use and, therefore, they are quite rugged to withstand different climatic conditions. Our LT panels are designed to work with low electricity consumption that makes them cost effective.

LT distribution panel this way the critical load need not be interrupted and there is no production loss. During low load we can run any single unit, and synchronize more units as the load increases. This can be manual or automatic.

HT panel is an electrical distribution board that receives power from generator or transformer and distributes the same to various electronic devices and distribution boards. Such panels are used in industries both for internal and external use and, therefore, they are quite rugged to withstand different climatic conditions. Our LT panels are designed to work with low electricity consumption that makes them cost effective

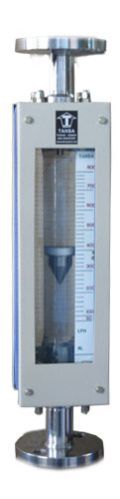

Glass tube rotameter is basically a Variable Area Flow Meter. The differential pressure across the annulus area is constant and the flow rate is measured as a function of the annulus area. This area is displayed as the position of a “Float”.

TANSA make full view sight flow indicators are demanded for its clear flow visualization. It is used for visualization of flow in line having DM water, acids and chemicals having less of particulates in it. The use of toughened borosilicate glass has made our full view sight flow indictors robust and steardy in long run. TANSA make full view sight flow indicators are recommended for vertical flow as well as horizontal flow. We manufacture sight glass flow indicator in varied material of construction suiting the service the best taking into consideration pressure and temperature details of our clients.

Flow transmitters is not affected by solid impurities as long as the min. conductivity of 5 scm is available. It is a true volumetric flow measurement. We offer various materials of construction for meter lining & electrodes to cover majority of corrosive liquids.

Flow switches when the float passes up in front of the switch the switch becomes open. (Break to alarm) Even if the float goes up beyond the level the switch remains open i.e. it latches off. Unless the float comes down and goes below the high level, the switch will not turn on. Thus the switch is Bi-stable with stable states.

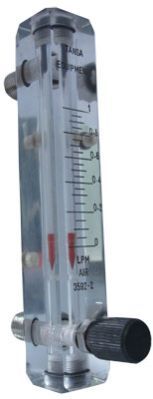

Acrylic Rotameter is basically a variable area flow meter. The diffrential pressure across the annulus area is constant and the Flowrate is measured as a function of the position of annulus area. This area is displayed as the position of the ‘Float’ in terms of flow rate on the scale.
