TRITORC EQUIPMENTS PVT.LTD. Wagle Estate, Thane, Maharashtra

TRISTAR Tube Scrubbers are the ultimate design in the Tube Cleaning Device. They are available in Sizes to fit tubes 5/8" - 1.1/4" (15.9 - 32mm) O. D. All Tube Scrubbers are available in either Soft or Hard Material to cover the complete range of Tube Sizes and most tube Cleaning Conditions. In most cases Hard Tube Scrubbers are recommended on the Lower End of the Hard Tube Scrubber size range, in extreme conditions, the user may have to use Soft Tube Scrubbers.

A very useful portable testing equipment for detecting punctured tubes in Heat Exchanger, Condenser, Chillers etc. The leak detector consists of two tube leak detecting guns which are inserted on each end of the tube to be checked for leaks. Once the trigger on the active tube testing gun is pulled, an air pressure is induced into the tube, causing the seals to expand on both the hand held guns. The pressure gauge will indicate and hold on the pressure, if there are no leaks. A very versatile tool to cover tubes of sizes from ¾” to 1.1/4” OD by a simple change of a set of manifold and seals.

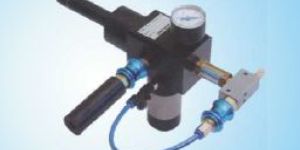

A very useful joint testing equipments, to check tube expanded and welded joints between Tube and Tube sheet. To operate the Joint Tester is inserted into the tube for seal to expand with a push of a button. Vacuum is created between two seals, one expanded into the Tube ID and other seal covering Tube OD. Tube joint leak, if any, is detected as the vacuum shown on the gauge starts dropping. A very versatile tool to cover tubes of sizes from ¾” to 1. ¼” OD by a simple change of a set of manifold and seals.

Consists of aluminium tapered nose with replaceble nylon brush used to guide tubes through tube & support plate holes. Speeds up the assembly operation & prevents tube end damage during assembly. The nylon brush fits in the tube end holding pilot firmly in place

Designed to remove tubes from the tube sheets, available for 1/2” to 1.1/2” O.D. Tubes with 06 shank other sizes on request

are Compact, Self - Contained, roll anywhere Units that can be used in Confined Areas. Operation trough a Foot Switch ensures the need for One Operator. The Brushes or other Cleaning Tools are rotated through the Tube at the Tip of the Flexible Shaft, Water simultaneously Flushes out loosened deposits leaving Tubes cleaned. Nylon Flexible Shaft ensures use in Bend Tubes. All Models are supplied with Mobile Dolly, Tool Storage Box, Single Direction Foot Switch (Optional 2 Direction Foot Switch) Features :  * Stainless Steel Construction - Longer Life. * Interchangeable Cleaning Tools - Versatile. * Simple to Operate - Minimum Training required. * Flexible Shaft can be easily disconnected without need for any Tools. * Large Wheels - easy to move  * Simultaneous Water Flush - remove deposits. * Foot Switch Operation makes it convenient for Operation.

Nylon Flexible Shafts with Galvanized Inner Core.  When Ordering Nylon Flexible Shaft and Accessories, each item should be ordered for Specific Tube / Pipe Size or Size Range. Shafts have Colour Coded durable Aluminum Caps for easy identification. Galvanized Inner Core ensures our Shafts have Longest Life, Flexibility and Resistance for Corrosion. To Order Flexible Shaft's, determine Tube I.D.s and Length of the Longest Tubes. Order Flexible Shafts to correspond with Tube I.D.s and Lengths.

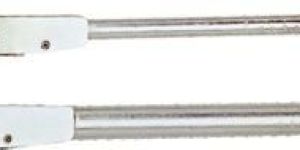

  A PRECISION TOOL CUM INSTRUMENT: Tristar Click type Torque Wrenches are of an innovation design concept, providing consistently accurate readings and rugged, (Trouble Free) Performance. Our Torque Wrenches have a proven performance record and we offer a Free Replacement Guarantee on our complete range of Torque Wenches, against any premature failure.

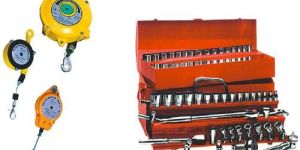

are known for their Best Quality & Durability. The tool kits are fabricated after stringent quality control and each tool kits matches the best of its kind from anywhere in the world. Due to the tool kits the technicians have no problems while concentrating on any job, major or minor. Each tool is designed and manufactured keeping safety factor in mind. The tool kits not only enables the operator to perform skillfully any types of repair and maintenance jobs but it also helps to complete the job in the shortest possible time. The technicians feel proud of being in possession of TRISTAR TOOL KITS and it helps the Technicians to know their true potential and further display their impeccable skills. We are catering to the OEM requirements of companies like Hindustan Motors Ltd., Larsen & Toubro Ltd., Earth moving equipments manufacturers for tool kits that go with their equipments.

High Tonnage Lifting Cylinders Mechanical Threaded Locking for Safe operations Perfect Solution for Construction activities Customized Longer stroke available on special Request

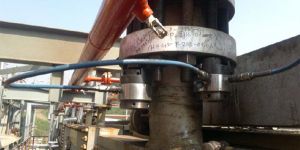

The modular design of Tristar TBT series topside hydraulic stud bolt tensioners enables the user to adapt an existing TBT tensioner assembly to another thread size, within the tensioner range, by purchasing a simple Adapter kit. Comprising of a threaded puller and compatible nut rotating socket, Tristar TBT-AK Adapter kits offer the user even greater versatility at an economical cost.

Mutlipurpose Applications Single Acting Plain Ram Spring Return

Self centred Internal Grooving tool for predetermined size, available for 3/8” to 2.1/2” tube sheet hole sizes

The most versatile cutter. The cutter blade depth can be adjusted. Available for 5/8” to 1” O.D. Tubes.

High Output 2 Stage Pumps 2. Advanced Circuit Technology Fewer components and wiring reduce weight & increases dependability 3. Powerful, Efficient, Compact 4. Lightweight Motor Permanent Magnet Motor is available in 1.125 HP and 1.5 HP versions 5. Operates At Full Pressure On a 20 amp @115 VAC circuit, makes the pump ideal to use with an extension cord 6. Low Profile Design Simplifies Transport Site gauge enables operator to monitor reservoir oil levels. Powder coated reservoirs stand up to the harshest environments. "Easy-Pour" fill and drain hole makes preventative maintenance quick and easy. 7. Enhanced Reservoirs Available in 1 and 1.5 Gallons 8. Quadra-Torc Function Available in single and multi-port designs for running multiple tools simultaneously 9. Lightweight, Ergonomic Pendant Industrial ergonomic rocker switches easy to activate, reducing hand fatigue. Water resistant sealed switches operate on 12 VCD. 10. Roll Cage & Heat Exchangers Available 11. Auto-Dump Relieves all pressure from hoses 12. Replaceable Motor Brushes & Armature Increases serviceablity 13. 10'Pendant Standard On all Torque Poerpump models

Hardened Alloy Steel For durability and long cycle life 2. Bearings Support For loads experienced at the square drive 3. Multiple Stage Planetary Gear System With optimized tooth design 4. Smooth Ball Bearing Rotation Gearbox housing independent from the motor handle 5. Lightweight Aluminium handle Provides drable, slip-resistant textured coating 6. Ultra-Efficient Air Motor Designed for easy maintenance 7. Cartridge-Style Valves Allow easy replacement 8. One Finger Trigger Control For forward and reverse 9.O-Rings Seal grease in while keeping water and dirt out 10.Thrust Bearings Isolate the motor when used in all orientations 11.Bearing Sleeves Low friction, high strength that gears run on 12. Chrome Steel Pins In each gear Stage

  Specially designed to suit the most critical applications with restricted access. These Tools are very rigid, however compact and light weight to facilitate portability and ease of use. A range of 5 models cover Tube size from 20mm to 306mm O.D. Face Tool head can be mounted either on Electric or Pneumatic Tool as per the requirement . Ideal for on-site pipe Facing, Bevelling and Weld preparation. APPLICATIONS * Suitable for jobs in restricted access areas * Useful in shutdown environments on Condensers and Heat Exchangers * Used for maintenance and new Boiler manufacturing * Designed to bevel, face and prepare weld edges for heavy wall thickness tubes FEATURES * Light weight and portable design * Quick interchangeability of locking jaws to suit wide range of diameters * Modular and ergonomic design to suit in toughest working conditions * Suitable for wide range of tube id’s.

Features :  * Compact - easy to use. * Interchangeable Cleaning Tools - Versatile. * Simple to Operate - Minimum Training required. * Flexible Shaft can be easily disconnected without need for any Tools. * Simultaneous Water Flush - remove deposits. * Foot Switch Activation - Safe Operation.   TTC - P is built for Technicians on the move - used to Clean 1/4" - 1" I. D. Tubes in Chillers, Condensers, Evaporators, Heat Exchangers, The Flexible Shaft rotates at 1440 RPM as water feeds through the Nylon Casing to the Cleaning Tool. As the Tool removes the deposits, the water flow flushes them out. A Solenoid Valve ensures that Water flows only when the Machine is running.

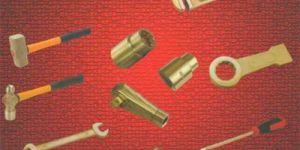

We are one of leading manufacturers of non-sparking tools and will present you with this catalogue an extensive range of products, which can be taiored your special needs. Tristar Non-sparking Safety Tools are used extensively throughout the world in the following industries: * Oil and gas, off-shore and on-shore * Flammable material manufacturing * Public Utilities - Gas, Electric * Aircraft and Missile Factories * Petro-chemical * Explosives manufacturing * Grain handling * Paint Manufacturing * Pipeline Construction * Armed Forces * Pharmaceuticals * Shipyards * Tankeres * Airports * Non-magnetic applicationns     ... and many other where sparks are a potential fire or explosion hazard. Tristar Non-sparking safety tools can provide a vital extra margin of safety under these conditions. This margin could be crucial in protecting personnel and installations from disaster. Features : * Greater safety personnel and installations * Strong and long lasting * Comprehensive standard range * Corrosion resistant * Special tools made to customers own designs   When conventional steel tools are used in potentially combustible steel tools are used in potentially combustible or explosive atmosphers, dangerous sparks may be accidentally created by tools slipping or being struck against hard surfaces.   The only safe way to eliminate fires and explosions in hazardous envirnments is to make sure that NO inflammable materials are present when using metal hand tools. In practice this is rarely possible and therefore plant managers and safety officers insist that SPARK RESISTANT tools are used for low-cost protection. For metallurgical and technological reasons it is almost possible to manufacture spark resistannt tools to the same hardness etc. as high alloy steel. Frequent re-dressing to remove embedded particles of steel or other substances which could cause sparks is essential. Misuse must be avoided, e.g. extending the handle length of wrenches with piping or using air hammer tools as a crow bar. All Tristar Non-sparking safety tools in this catalogue are manufactured from Copper-Beryllium or Aluminium Bronze. Special precautions are to be taken when resharpening and grinding Copper-Beryllium or Aluminium Bronze. Special precautions are to be taken when resharpening and grinding Copper-Beryllium tools. Directions are available upon request. TRISTAR Non-Sparking Safety Tools are guarnteed against defects in material and workmanship. Tools which fail because of misue, international or uninternational, or for any reason other than stated above, cannot be replaced free of charge.

To pull stub ends from tube sheet after internal tube cutting. Available for 5/8” to 1.1/2” O.D. tube size

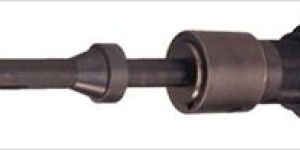

It is designed to cut thick tubes. The clutch mechanism and bevel spring housed in the cutter body provides self feed positive cutting force. This eliminates operator fatigue. This design also increases the life of the cutter blade. Piloting steel balls cover the range of tube I.D. and offer easy replacement and regrinding of tool bit. Depth of cut can also be adjusted.

Patented "Peanut-Shaped" Cylinder Fit both the cylinder and link in confined areas 2. Engagement Rod Automatically engages link on the first stroke 3. Never-Lock Drive Pawl Ensures tool will NEVER lock on 4. Multi-Tooth Ratchet Allows for 27° torque stroke accuracy 5. One Piece Drive Plate Robust alloy provides for small nose radius 6. Link Pin One pin for link to cylinder engagement, no tools required 7. In-Line Reaction Pad Assures torsion free reaction every time 8. Steel Alignment Pin Assures equal load displacement between side plates 9. Completely Flat Design Cylinder and link width are equal for tight fits 10. 3600X 3600 Swivel Allows hose to be cleared on all applications 11. Proprietary Piston Seal Patented technology provides years of maintenance free use 12. Slider Prevents wear of piston or drive I Reduces costly repairs

    Tristar Nut Splitter is supplied Complete with :   1. Hydraulic Cylinder 2. Housing 3. Chisel 4. Set of Allen Keys 5. Spacer Set 6. Packed in a Rugged Steel Tool
