UNITED TECHNOLOGIE Vasai, Thane, Maharashtra

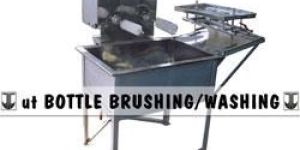

Supplied with SS galvanized soaking tank size 75* 50*  30 cm, 12 SS galvanized rinsing jet & twin head   bottle brushing unit   Recommended Spares Nylon brush - for 10ml,50ml, 100ml& 250ml Brush holding chuck “V” belt

Type : Drive (3-ph)

Optional accessories / attachments SS Trays Bottle centering devise for faster production Product inlet filters with finely perforated S. S. Screen Graduated volume adjustment arrangement Built in non return value to keep filling nozzle and tubes free from air bubbles Vary pitch drive for easy adjustment of numbers of fills per minute Control box Recommended Spares Spare Syringe Teflon / Nylon washers for piston Filling SS Nozzle Plastic Tubes Clamp for plastic tube

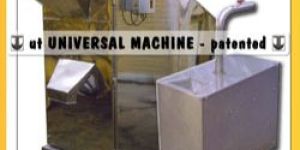

In our special category machineries, we present our PATENTED TECHNOLOGY designed after an in depth study to be the only ‘one of its kind’ having most multi-purpose usage and versatile facility with improved functional simplicity that is to train on, work with and maintain.   ROASTING                                   MIXING BLENDING COATING FLAVOURING WASHING DE-MOISTURIZING SEASONING     Done within minimum time span depending upon the product, procedure & capacity.Easy operation CHARGING …… PROCESS ……. AUTOMATIC DISCHARGESpecial Features1. Total compact machine2. Vibration is completely eliminated. Noiseless3. Maintenance free and easy to operate4. Total operation without body contact with the product. Very HygienicSalient Features1. Model : STD / GMP 2. MOC : S. S. 304 Q. / 316 Q. 2. Drive : 3 phase, 440V, 1440 RPM TEFC electric motor coupled with reduction gear box & sprocket drum etc. with req. speedOptional accessories / attachments 1. Castor Wheels for easy portability2. Starter / control panel 3. Collecting Trays4. Scoops, Scrapers, Stools/ Chairs5.  Auto Timer (for on/off) 6.  Heating arrangement electrical elements 7.  Auto digital control boxProcesses especially for FOOD INDUSTRIES that can be performed in single unitOASTING / WASHINGSeeds, Soya dal, Soya, Nuts, Cashew nuts, Ground nuts, Almond, Spices, Suji, Mong dal, Teel seeds, Dry Fish, Wheat, Velchi, Onion Flakes, Supari, Granules, Tea, Coffee, Saunf, Dal, Dhana, Rice, Chana, Vegetable (except leaves) etc.DE-MOISTURIZER Nuts, dry fruits, seeds, chiwda, farsan, namkeen, wafers, etc.MIXING / BLENDING Powders, Spices, Granules, different kinds of Chiwda-Bhel, Hing (asafetida), Mixed spices

Fabricated in double walled MS / SS Sheet construction mounted on rigid steel frame-work with    insulation & best quality ‘u’ type heaters. For STD model the entire unit is painted with synthetic    enamels with suitable pre-coats. The inside is painted with heat resistance paints to resist    temperatures up to 100 –120 degree Celsius max. GMP Models are totally cladded with SS sheets    form outside.  A suitable motor driven blower circulates the Hot air through the totally enclosed type strip heaters    and is circulated in the drier by means  of a Fan, fitted on the oven. Moist air can be exhausted by    the means of dampers provided.   Control Panel Compromising Thermostat (temperature controller), Lamp Indicators, Push button- on/off switch    (starter), conductor duly interconnected suitably.   Features  Air-inlet, Air filter, Adjustable air outlet, Self-locking insulated door. Optional accessories / attachments   Electric Heaters – 1KW / 2 KW   Trolley arrangement for easy portability   Trolley for Trays (with and without product) storage   Earthing Bolt on Control box    Recommended Spares   SS Trays (16” x 32” x 1.25” -16/18/20 swg or as per desire)   Aluminum Trays (16” x 32” x 1.25” -16/18/20 swg or as per desire)   Perforated Trays (SS / Aluminum)

Salient Features MOC : S. S. 304 Q / 316 Q, 14 / 16 / 18 gauge (argon arc welding) Finishing : Mirror finish Optional accessories / attachments Dished end / Conical bottom SS lid Outlet valve with hose nipple MS / SS stand Castor wheels Can be supplied with Agitator, Anchor stirrer, Homoginizer, Disperser

Unit construction may vary as per the product and required process, capacities and additional requirements / specifications of clients Clients are requested to provide us with schematic drawing of the procedure required. Consultants are available for the same. Optional accessories / attachments Heating system Heating media – gas, stove, electric heaters, etc Capacity 05 – 50 liters (vessel capacity) or as per de

Application : Manufacturing Plant, Chemical Engineering

Voltage : 220V/50Hz

Warranty : 1 Year

Capacity : 05 – 50 liters

Motor having swinging & fixed beaters are fitted in a Grinding chambers provided with a teeth liner  on the top half & sieve fitted to the bottom half. Feeding Hopper, Grinding Chamber and drive   mechanism is mounted on a suitable stand.

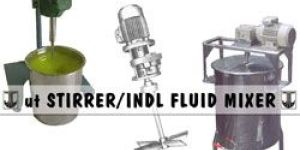

Super pitch propellers accurately blended & formed having extra large pumping capacity with low power  investment. Special mixer duty motor featuring hollow shaft design. Simple- collect nut tightened with   standard spanners permits quick adjustments of shaft length. Vessel fixing clamp features unique   adjustment of the mixer angle. Optional accessories / attachments Clamping arrangement to the motor suitable for Tank fitting SS / MS Stand

Mixing bowl can be retracted and made portable to facilitate comfortable transportation (of mixed   products), washing, cleaning etc. Optional accessories / attachments Tilting / sliding arrangement for bowl Inlet / outlet values in the bowl Jacketed bowls / vessels for heating or cooling of products during mixing to produce lustrous product. Under vacuum bowls / vessels Explosion / flame proof / hose proof motor Control Panel - Electrical control panel with back up fuses & indicator lamps for easy process control-optional. Scraper blade Stirrer / Homoginizer (as per specifications) Temperature / pressure gauge, side glass, etc.

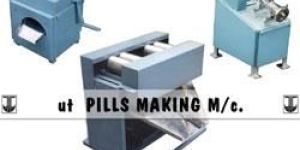

for accurate pills (size, weight, etc,) we suggest the following two machines stage a stick making is the first step in preparation of pills of various shapes & sizes. at a time one or more than one sticks can be prepared depending upon the size & density required for machine stage b through this stage the stick prepared gets cut between the rollers of the machine. the rollers can be set according to suit the requirements, i.e. Of various dimensions either round or oval. optional accessories / attachments ss trays

Optional accessories / attachments SS Trays Control box Recommended Spares Cap dies Roller set Foot spring Bearing Taper Stud

Type :  Hand operated / Motorized

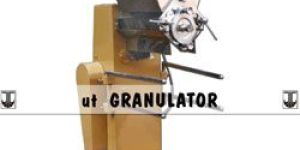

Unique oscillatory rotor action ensures high outputs and a predictable product with minimum of     fines. Adjustment, cleaning & operation are simple sturdy, durable, better productivity.   Recommended Spares SS Trays Aluminum Trays SS Screens – available from 0.5 mm to 20 mm / Sandwitch type / With or without support V-belt

Accuracy of fill with in + 2% of volume. depending upon product viscosity. Product filters without   splash, spillage and foaming. Optional accessories / attachments SS Trays Bottle centering devise for faster production Product inlet filters with finely perforated S. S. Screen Graduated volume adjustment arrangement Control box Recommended Spares Piston Ring Filling SS Nozzle L.H. & R.H. Levers ‘V’ belt

Depending upon product (material density, nature, moisture content, weight & screen mesh size) Optional accessories / attachments Modified Straight Discharge Hopper (for maximum output rate of flow) Dusting arrangement for pulverizing of fine powder to avoid dusting in the air provided on Discharge Hopper with Perforated Bucket & Cloth S. S. Jacket on Intermediate Hopper with inlet, outlet & vent connections Recommended Spares S. S. Screen - 0.5 mm to 20 mm Special screens are available in # (mesh) in sandwich type Rubber gasket- charging & discharging hopper Teflon-ring / gasket SS Blades set - cutting / scraper / swing / pins / beater boss / beater cap SS Blade – Hexsaw type cutter to increase the fines of the powdero SS Beater / SS Shaft

Recommended Spares S. S. Screen – 10# to 100# Special screens – sandwich type Rubber gasket for screen Rubber coupling Rubber washer Channel Hopper set Channel Bush Cup type Bush SS Shaft   Optional accessories / attachments Brushing arrangement SS Lid with charging port Aluminum ring & SS tie rods for fixing screen finer than 100# Explosion / flame proof / hose proof motor

Optional accessories / attachments Tilting Arrangement (for easy discharge) Dished end / Conical bottom SS lid Outlet valve with hose nipple Castor wheels Trolley for easy portability Can be supplied with Agitator, Anchor stirrer, Homoginizer, Disperser Capacity 50 – 1000 liters or as per desire

Fabricated angle / square / round pipe having top with suitable working space (12”) on either side   with 9” PVC coated belt Optional accessories / attachments Dual adjustable speed motor Starter / control panel Collecting Trays Stools/ Chairs

Optional accessories / attachments S. S. Baffles inside the Pan SS Lid Hot air blower - 440 V, 2880 RPM TEFC motor & centrifugal blower with damper delivering 100/200 CFM (+20%).Finned heater capacity 1kw / 2kw / 230 V to give air at 30 to 90 thermostat & pipe Explosion / flame proof / hose proof motor SS Fishtail for hot air distribution Control Panel -

Usage : Coating & Polishing. Gives finest coating on tablets & granules

Unit is supported on MS Structure with mixing chamber having 6” to 8” dia mouth opening or as  required. Steel balls or rods are not included with the unit, can be supplied at extra cost.   Optional accessories / attachments / spares SS containers SS Collecting tray (suitable for m/c.)
