Valve Positioners Dealers in Thane

• Brand Name: YTC
• Color: Black
• Type: Electro Pneumatic Valve Positioner

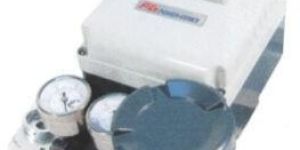

The Electro-Pneumatic Positioner YT-1000L is used for operation of pneumatic linear YT-1000R is used for operation of pneumatic rotary valve actuators by means of electrical controller or control system with an analog output signal of DC 4 to 20 mA or split Ranges.

Electro pneumatic is used for controlling movement of final control element such as Linear Cylinder, Diaphragm Control valve or Rotary actuator device which accept directly variable electronic signal & EP positioner is a precision with the help of auxiliary high pressure supply accurately controls movement of final control element corresponding to set point. No air consumption under balance condition hence saving of energy, Auto start fu, No air consumption under balance condition hence saving of energy, Unit can be modified for use with electrical actuator.

Linear Type (Lever Feedback) Rotary Type (Cam Feedback) Single Double Single Double INPUT SIGNAL 4-20 mA @ 24 V DC INPUT RESISTANCE 235 ± 15 W SUPPLY AIR PRESSURE Max 7.0 bar ( 100 psi ) STANDARD STROKE 10 ~ 80mm 60 ~ 100mm PNEUMATIC CONNECTION Rc 14 or NPT 14 ELECTRICAL CONNECTION G 12 or NPT 12 PROTECTION CLASS Ex md IIB T6, Ex md IIC(H2) T6, IP66, Ex ia IIB T6Eex md IIB T5 for ATEX AMBIENT TEMPERATURE -20 ~ 70°C

valve Positioner is used for modulating application.It can be provided with either integrated or a seperate position transmitter.

• Stroke Range: 3/8" to 3", 3" to 4"
• Action: Direct / Reverse
• Accuracy: Within 1% of Valve Stroke

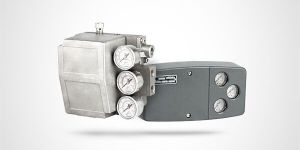

RK VALVE POSITIONERS positions the Control Valve accurately with respect to the input signal from the controller, regardless of Packing box friction, actuator hysteresis or unbalanced forces on the valve plug. Thus, RK Valve Positioner ensures a reliable and accurate operation of Control Valve. Application : Accurate positioning of control valve in accordance with input signal Features: Minimizes the stem frictional force Fast response High accuracy & stability Based on pneumatic force - balance principle Employs a sensitive bellows Adjustable stroke range upto 4" provides flexibility to use with any actuator Direct and Reverse action option VP5 model can be used for rotary movement 60°/90° VP5 model can be used for double acting actuators Stainless steel version available in VP5 model Responds to extremely small changes in control signal Reduces time lag of the signal from the controller to the valve Useful for operating actuators with spring range higher than the control signal range, thereby reducing actuator size Permits split range operation of control valves Specifications : Input Signal 3 to 15 psig or 0.2 - 1.0 kg / cm2g as standard, split range available on request

Electro Pneumatic Valve Positioner, industrial globe valves
