Vibrating Screen Dealers in Thane

• Country of Origin: India
• Material: Stainless Steel
• Color: Multi Color
• Automation Grade: Automatic
• Power Source: Electric
• Surface Treatment: Color Coated

We offer Vibro Screen to our esteemed customers at attractive price. It boasts striking features such as light weight, strong built and durability. Our excellent distribution system enables you to get it delivered to your doorstep in no time at affordable prices.        Vibrating  Screen – Nishi Techno Sys vvibrating Screen working on the principle of maximum linear movement with small vertical movement. These parameters creates due to unbalance forces generated between two unbalance motors rotating in opposite direction. Vibrating screens mostly used in where biggeer size of material separate from fine material we can offer vibrating screens upto 35000 Kgs./Hr. ( Capacity depends upon size, density of material and moisture content) As per requirement of customer we are designing vibrating screens with 2 OR 3 Decks. Output of the first screen can be fed as the input to the second screen.  The second screen will further grade & separate the material as required. We are offing this machine with Wire Mesh and Perforated screen. From 25 mm to 2 mm

Our Vibrating Screens are applicable in wide range of industries like food processing, chemical industry, paper, coal, clay and metal mining for the purpose of de-watering, washing, sizing, scalping, and many more. In addition also widely used on shale shakers for reclaiming drilling mud. We are the vibrating screen manufacturers that manufacture superior quality vibrating screens that are provided with square hook strips that enable screens to be kept under greater, more uniform tension and makes them distortion resistant.Screens for sizing and straining can be furnished with any style of edge preparation or hook strip, ready for installation into any type equipment. Often the edges of screens of woven of heavier than .250" are fabricated to hook on to the vibrating frame. however, most screens made of .250" and lighter wire have a hook strip supporting the edges. Absolutely square hook strips enable screens to be kept under greater, more uniform tension. This protects them against distortion and excessive vibration which causes metal fatigue and breakage .applications in a wide range of industries, including food processing, chemical, paper, coal, clay, and metal mining. Used for dewatering, washing, sizing, scalping, and more. Also widely used on shale shakers for reclaiming drilling mud.

ORTON make vibratory conveyors find wide application in cement plants, steel plants, fertilizer industries, pharmaceutical industries, glass industry etc, where controlled feeding of material is required.  These conveyors have proved their reliability in transporting bulk material over limited distances.Depending on requirement and applications vibrating conveyors are available in electromagnetic & electromechanical types.  Electromagnetic conveyors make use of an electromagnetic drive for generation of vibrations whereas electromechanical conveyors are powered by two unbalance motors rotating in possible directions.  Electromagnetic vibrators are used in applications where stepless variation of feed rate from 0-100% is required.  On the other hand electromechanical vibrators are used where the feed rate is not required to be changed frequently during operation or where a relatively constant feed rate is required.Electromechanical vibrating feeders are powered by two unbalance motors which rotate in opposite directions.  These types of feeders can be supplied in two types viz, through type and tubular type depending on the type of application and material being conveyed. Advantages : Very low maintenance required as the motors are extremely robust in construction & reliable in operation. Large magnitude of force can be achieved. Amplitude of vibrations can be varied by changing the position of the centrifugal weights in standstill condition of the motor. Extremely simple to connect and operate. Depending on the application, motors with different RPM's can be selected

High-frequency screen adopts the most advanced theory and new structure. High vibrating frequency leads to high screen efficiency and big capacity. Controlled by computer, every exciter specification is adjustable. Also it sets up a transient extremely vibrating force, which is quite useful in clean the screen surface. Low powder consumption: High-frequency screen adopt super Elastic material, which ensure the steadiness and help to save the power. APPLICATION High-frequency screen is a good choice for screening and grading the fine particles of mineral ores. This machine has wide application in iron ore, tin ore, tungsten ore, tantalum ore, dolomite sand and some other kinds of mining dressing plants' screening and grading work.

Depend on decades-years’ experience in mining industry and latest technology, Birnith designed the YKN series vibrating screen, which has high-strength exciting force.YKN series vibrating screen adopts the eccentric vibration exciter of N series. And the transmission adopts flexible connector. As a result, the amplitude is bigger and the vibration is much more stable than old types. Also the throughput and screening efficiency are greatly improved. Features YKN Vibrating Screen is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive. The exciter adopt outer eccentric block, the weight is light and the exciting force is strong. Operators can easily adjust the amplitude and exciting force by changing the eccentric blocks quantity. The vibration exciter is fixed on the side-bar of screen box and two exciters are connected by universal coupling, so it is very easy to install and maintain. For the transmission adopts flexible connector, there is no force transmit along the main shaft and it ensures the stable performance.

We are offering our clients with DSM Screens that are widely used in the paper industry. A fine wire mesh is used in DSM screens to separate solid from liquid under flow of gravity. DSM screens are manufactured using latest technology and quality raw material such as stainless steel 304, 316. Further, our range of DSM screens find application in various paper mills and are available in various sizes such as 2' wide & 4' wide,Mechanical Bar Screening ,The Bar Screen are installed for the purpose of removing bulky material which would be objectionable and cause trouble in later processes in a sewage treatment plant. It is a continuous and automatically cleaned mechanism requiring a minimum of care and attention.

Screens are used for screening and grading of dry powder, emries, slurries, ceramic powder and food products.Brand Vibratory Screening machine mostly useful where's Quality is important than Capacity. Vibratory Screening are well designed to suitable for Capacity 100 kgs/hr to 22000 kgs/hr. Machines Models, are Available from 12 inches dia to 72 inches diameter .We can Provide 4 mesh to 400 mesh.

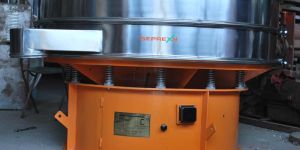

It is fabricated from SS 304 sheet and fitted on helical springs for Vibration. Vibration is done by electric motor. SS Rings fitted with fine SS wiremesh is fitted with Vibro Screen. It is must for screening coating chemical.

• Body Material: Steel
• Automation Grade: Automatic
• Voltage (V): 220
• Frequency (Hz): 60

Screens for sizing and straining can be furnished with any style of edge preparation or hook strip, ready for installation into any type equipment. Often the edges of screens of woven of heavier than .250" are fabricated to hook on to the vibrating frame. however, most screens made of .250" and lighter wire have a hook strip supporting the edges. Absolutely square hook strips enable screens to be kept under greater, more uniform tension. This protects them against distortion and excessive vibration which causes metal fatigue and breakage .applications in a wide range of industries, including food processing, chemical, paper, coal, clay, and metal mining. Used for dewatering, washing, sizing, scalping, and more. Also widely used on shale shakers for reclaiming drilling mud.     3G Screens are made out of course type wire mesh to meet specific requirements duly woven accurately to mesh sizes with appropriate wire or rod sizes

ORTON vibrating screens work on the principle of linear displacement of the materials due to unbalance forces generated by two unbalance motors rotating in opposite direction. These screens are basically used to separate coarse materials from fine materials which exit in mixed form. Depending on the grading size details, the number of decks required are decided. Generally the screens are provided with on deck or two decks. In case more than two decks are required for a particular application then, two vibrating screens can be used in tandem in such a way that the finest output of the first screen can be fed as the input to the second screen. The second screen will further grade & separate the material as required. The selection of the screen deck mesh will depend on factors such as the materials to be screened, whether the material is dry & free flowing or is moist and sticky, particular size of the material to be screened, shape of the material etc. Utmost care is to be taken to ensure that the screen decks do not get clogged as this will result in reduced screening area thereby affecting the output of the screen. Basic Construction : The screen body is extremely sturdy & rugged made up of mild steel of adequate thickness. The thickness of the steel plates depends upon the size of the screen & the selected motor. Depending on the material to be screened, the sieve analysis & other related factors, suitable screen decks are provided. Normally these decks are in the form of wire mesh or perforated plates. These screens are mounted on the structural framework via specially designed mounting springs. The selection of these springs will depend on the total weight of the equipment & the motor rpm. These screens are usually base mounted, however they can also be suspended if the situation demands. The screens are provided with suitable inlet & outlet openings as required by the customer. The positioning of the outlets will depend upon the requirement of the customer.

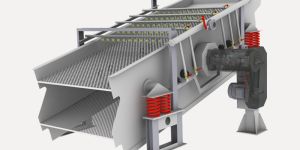

Vibrating Screens are extensively used in Iron & steel works, collieries, Quarries, mines, Chemical, pharmaceuticals, ceramics, Rubber, Clay & glass industries for handling all types of materials, Mitool Make Linear motion rectangular vibrating screens are rugged & designed for long life. Mitool selects & delivers the most efficient & economical vibrating screen for individual application, creening performance is affected by various characteristic of feed material including particle size shape, Bulk density, flow ability, moisture , methods of loading etc. Most important is the particle size distribution of the feed material, Mitool Make Linear motion rectangular vibrating screens are operated by a two unbalance motors which produces liner vibrations. Linear motion screens are very high performance machines, in terns of capacity & efficiency. They have a low inclination which varies between 0-15 degree down slope. Mitool vibratory screen are supported by suitable springs which isolate the vibration.
