Water Cooled Jumper Cables Dealers in Thane

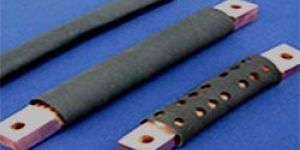

water cooled jumper sub cables

2,800 Per Meter

Specification of Water Cooled Jumper / Sub Cable : 1. Design of Cable as per Customers Specification with very less tolerance. 2. Special type of rubber hose with the High flexibility, more than 10 Kg/cm2Capacity and to protect to high temperature water for safe operation. Excellent cooling effect even in continued welding operation. 3. Copper wire size is 33 Gauge for 300 MCM & 400 MCM as per standard of RWMA. 4. Accurate copper straight lugs or copper bend lug with 99% conductivity of Electrolytic Copper. Little Impedance & little Reactance drop. 5. Fantastic water testing units with Pressure 10 to 12 Kg/cm2, each and every Cable are tested. 6. Good Quality product with Long Life and very competitive rate. Long cable life reduces cable cost per weld - the true measure of cost cable. 7. We have good team of engineers with more than 10 Years experience in same field. 8. Strict Quality Control during production, delivery as per schedule. 9. Easy for check & replacement & maintenance. 10. We have own Quality Assurance Plan of our products.

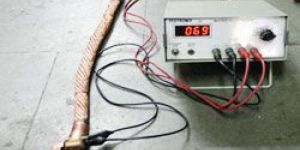

Water Cooled Jumper (Aid) Cables

Get Price Quote

These cables are used as supplementary cable to connect kickless cable and gun are of the single conductor only. To meet the connector needs in the resistance welding operation. Electromech offer a broad variety of secondary cable. Each cable is design and built to perform with maximum efficiency and economy in its in depended application. Electromech water-cooled jumper (Aid)cable to electrically connect distant points which move in relation to each other such as, The movable gun-arm of the certain types of welding guns to the electromech cable.   On a multiple spot welding machines.Electromech water cooled jumper & sub cables are flexible rope types secondary connectors, assembling with high conductivity terminals. There are sheathed with reinforced abrasion & oil resistant hose. Free water passage is insured by means of an open spring core progressing the entire length of the cable. Thus permitting the cable to operate under the condition of acute bending without obstructing the water flow.   TERMINALSStraight lugs are machined from high conductivity electrolytic Copper bar stock.Bends lugs are forged and machine from high conductivity electrolytic copper.WIRE CONSTRUCTIONThis is a made from 0.05mm2 electrolytic grade Copper wire. Each bunch or herringbone construction to reduce the rate of wire facture by providing lateral surfaces wears areas. The total sectional area shall not be less than the sectional area as per MCM/mm2 rating. WIRE CONNECTION TO TERMINALWater is terminated in a crimped in soft electrolytic tube and the soldered to the terminals. Wire cannot melt out during brief overloadsFLEXIBLE HOSE COVERThe outer rubber hose made of heat resistant on its inner Surfaces & abrasion resident on its outer surfaces.WATER FLOWCoiling water is passed at the rate of 3 lit/ min at the pressure of the 6kgf/ cm2 and the pressure drop does not exceed 0.7kg/ cm2WATER PRESSUREThe cable is tested at a pressure of 6 kgf/ cm2 (kcs) to ensure then there is no leakage or hose damage. OPTIONAL FEATUREROTECTION SLEEVES : - In order to eliminate breakage of strands due to frequent acute bending operation, projection sleeves are provided on the area of both the terminal joints.
