Automotive Silencers Dealers in Tiruchirappalli

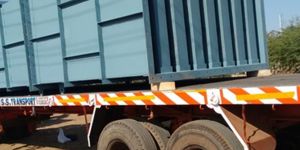

Industrial Fan Silencers are installed depending on fan size, horse power, air flow, type and number of blades, static pressure, rotational speed etc. We are named among the renowned Manufacturers, Exporters and Suppliers of Industrial Fan Silencers. The manufacturing of these silencers is done using the latest techniques under the strict vigilance of experts. One can place retail as well as bulk orders for Industrial Fan Silencers with us. Details :Fan silencers usually require absorptive type design as they are well known for better attenuation in mid and high frequency range (500-8000 Hz). The effectiveness of absorption material progressively reduces at frequencies above and below this range. The noise control is achieved by means of absorption. The acoustic energy propagating through the silencer is effectively absorbed into the fibrous absorption material and converted into heat energy. These silencers generally employ straight thru design and have a low pressure drop as it imposes very little restriction to the flow. The fan silencers are normally selected on the basis of maximum allowable pressure drop at rated flow and the silencing criteria. These silencers are usually sized for around 5000 to 5500 FPM velocity but not exceeding 7500 FPM velocity to prevent excessive self-generated noise and aerodynamic noise generation. While selecting the fan silencer, it must be ensured that the flow area throughout the silencer is sufficient to accommodate the air flow without imposing excessive restriction. Data Required Air Flow Rate (Actual CMH) Temperature (°F) Pressure (PSIG) Maximum allowable pressure drop (inches of water) Existing noise frequency spectrum (63).

Both suction and discharge silencers shall be supplied either in circular or rectangular construction for fan blower and turbo blowers. The rectangular silencer shall be of absorptive type installed either at suction side or at discharge side of fan blower. The internals of the silencer comprises a series of acoustic splitter elements arranged in parallel inside the rectangular steel casing. This would ensure the flow of airgases through the rectangular air gap between acoustics splitters and thus offering a minimum pressure drop. The leading and trailing edge of the acoustic splitters will be designed aerodynamically to offer minimum resistance to the flow medium.

  The discharge silencer is used to reduce the discharge noise of the compressor / blower when discharging fluid into process. It is constructed in circular shape. The fluid passes through the annular acoustic packing where the sound energy is absorbed. The straight flow path through annular acoustic cylinder ensures minimum pressure drop. The following data are required to design discharge silencer. Flow rate Temperature Inlet size Allowable pressure drop Silenced noise level requirements

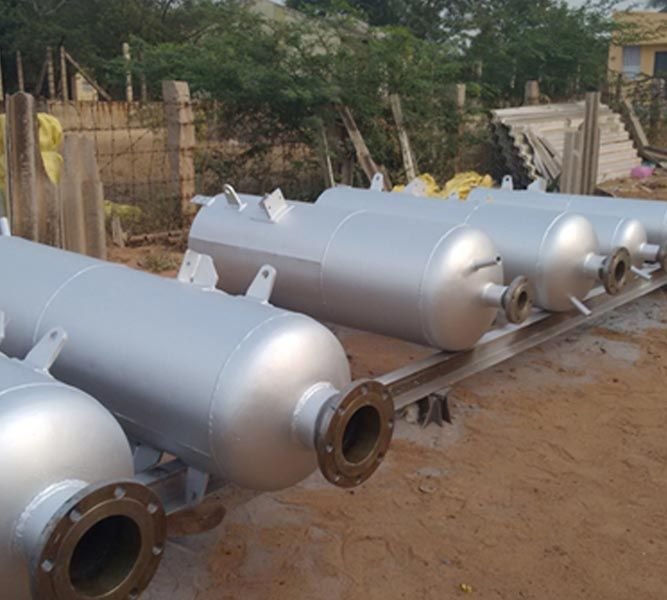

We are proud to say that with the help of high quality products provided by us we have been able to establish ourself among the leading safety valve silencer manufacturer exporter in India. The terms like unique and durable appear out to most appropriate if one starts looking for the words to describe the quality of safety valve silencer exported by us. Moreover we offer most competitive prices for our unique quality safety valve silencer.

• Application: Industrial Use,Industrial
• Material Grade: SS 304
• Finish: Galvanized

• Material: MS
• Country of Origin: Made in India
• Temperture Range: 30 / +150 (Deg.C)
• Available Diameter: 100 mm - 350 mm (4
• Air Velocity: 30 m / s
• Size: Custom
• Dimension: Custom
• Colour: Custom

We are engaged in manufacturing and supplying of blower silencer

Anpam Engineering is an organization engaged in manufacturing & supplying of high quality vacuum pump silencers in India.
