Olive International Periyathottam, Tirupur, Tamil Nadu

Technical Parameter Model:M25 Working size :1300*2500*200mm Body structure:Steel structure with 6 strong legs with Dust collecting system Working table:Vacuum table Working accuracy:±0.05mm Repositioning accuracy:±0.05mm Traveling speed:25m/min Working speed :15m/min spindle:Φ100mm 2x3kw water cooling spindle Spindle rotary speed:0-24000rpm Control system:DSP controller Drive and motor:Stepper motor high speed drive 2260/2278 Transmission mode:Taiwan square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis Working voltage:AC380V/50HZ ax. power consumption(without spindle):1,840KW Command language:G-code,*u00,*mmg,*plt Software:Type3 or Wentai Cutters :10 pieces with diameter of 6 and 12.7 Collets:1pieces Dust collector:Yes Oiling system:manually oiling Machine weight:1500kg Packaging Measure:3.40m*1.93m*1.45m Main application: Comprehensive application: Wood, Plastic, acrylic, PVC, rubber sheet, bamboo, ACP, plywood, MDF and all kind of non-metals.

Max. Print Format:24''*16'' (60x40cm) Print Head:Epson DX5 (Nozzles 180x8) Machine Type:Automatic, Flatbed, UV LED Lamp, digital printer UV Curing System:LED UV Lamp (air cooling)/ water cooling Max. Print Format:24''*16'' (60x40cm) Power Requirement:50/60HZ 220V(±10%)>20A Print Head:Epson DX5 (Nozzles 180x8) Environment:20 ~ 28 ℃ HR40-60% RIP Software:Photo Print RIP Operation System:Microsoft Windows 98/2000/XP/Win7 X/Y/Z-axis motors:Servo Motors Machine Dimension:118 * 78 *45cm

Ink Color:8 color / CMYK+White Ink Bottle Volume:500ml/bottle * 6pcs Ink Type:Textile ink Print Material:Light color & dark color textile, above 80% cotton Solution:Light Color Textile: Color ink,Dark Color Textile: Pre-treatment solution + White Ink + Color Ink Print Resolution:User definable up to 2880*1440dpi(Recommend setting:1440x1440dpi for white ink,1440x720dpi for color ink) Print Height:Up to 10cm, adjustable Print Material Weight:Up to 5kg Two Pass Deviation:±0.5mm at 25℃ 50-60%RH Printing Direction:Smart Single/ Bi-directional printing mode Printing Method:Non-contact micro piezoelectric ink-jet printing Printing Nozzle:180 nozzles*8 Nozzle Protection:Touch detection automatic protection system Control Panel:Touch-screen, 4.3-inch, full color Control System:PLC control servo motor, Upgradeable Height Adjustment:Semi-automatic, Intelligent infrared induction alarm system Position Detection:Up, Down, Forward, Back, 4 directions with limit position control system Transmission Type:Wi-Fi, USB, Ethernet Power Protection:UPS power, protect machine when power break Emergency Stop:Individual emergency stop button Ink Cure:By heat press machine,160℃,Only 60sec; By dryer, 160℃, 4mitutes Working Environment:Temperature: 10~35℃; Humidity: 20-80%RH Water Durability:4 degree Power Supply:AC110/220V±10%, 50hz-60hz, Power=600w Driver:Windows XP/7/8 Software:RIP software Weight:Printer: 400kgPackage (with fumigation-freewooden case): 450kg, Vol. weight: 1015.46kg Dimensions:Printer: L235*W140*H120cm,Package (with fumigation-free wooden case): L252*W146*H138cm, 5.08M3 HS Code:8443321300

Model:MY1600F / MY1800F / MY3200F Printhead:Newest Generation Variable DOD Piezo Epson Printhead DX7,1440dpi Number of Printhead:1 Head of 1440 nozzles 8x180 nozzles/line,2 Heads of 2880 nozzles Staggered arrangement Max Print Width:1600mm(MY1600F),1800mm(MY1800F),3200mm(MY3200F) Printing Resolution:(4Pass-16㎡/hr,30㎡/hr)(6Pass-12㎡/hr,22㎡/hr)(8Pass-8㎡/hr,14㎡/hr) Ink Type:Reactive, Acid, Disperse, Pigment Ink Color:Dual 4 colors Ink Capacity:220ml of each ink cartridge Ink Supply System:Block brake type of ink supply system, no chip in the cartridge Print Height:2—4 mm above media adjustable Auto Media System:Equipped with auto media feed system Auto Printhead Cleaning System:Anti-clogged Flash Function & Moisturizer System Print Interface:USB2.0 RIP software:Wasatch/Maintop Input Power:AC220V, 50Hz/60Hz,4KW max Package Dimension:Printer-2700*800*670mm,Heater-2740*1020*1220mm,Filter-670*620*1230mm Weight:600KG Main application: Available materials: It could print on sided fabrics, knitted fabrics, mesh fabric, satin fabric, all polyester fabrics.

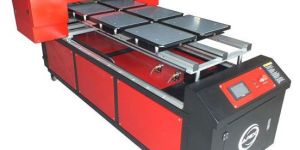

Technical Parameter Ink Color:CMYK + WWWW or CMYK x 2 Cartridge Volume:220ml*8 color Ink Type:Textile ink Material:Light color & dark color textile, above 80% cotton Solution:Light Color Textile: Color ink,Dark Color Textile: Pre-treatment solution + White Ink + Color Ink Print Resolution:User definable up to 2880*1440dpi(Recommend setting:1440x1440dpi for white ink,1440x720dpi for color ink) Platform Size:40x55cm Print Height:Up to 8cm Print Material Weight:Up to 5kg Two Pass Deviation:±0.5mm at 25℃ 50-60%RH Printing Direction:Smart Single/ Bi-directional printing mode Printing Method:Non-contact micro piezoelectric ink-jet printing Printing Nozzle:180 nozzles*8 Nozzle Protection:Touch detection automatic protection system Control Panel:Touch-screen, 4.3-inch, full color Control System:PLC control stepper motor, Upgradeable Height Adjustment:Semi-automatic, Intelligent infrared induction alarm system Position Detection:Up, Down, Forward, Back, 4 directions with limit position control system Transmission Type:USB, Ethernet Ink Cure:By heat press machine,160℃,Only 60sec;By dryer, 160℃, 4mitutes Working Environment:Temperature: 10~35℃; Humidity: 20-80%RH Water Durablity(1.5 dgree):(1-5degree) Power Supply:AC110/220V±10%, 50hz-60hz, Power=500w Driver:Windows XP/7/8 Software:RIP software Language:English, Chinese Weight:Printer: 118kgPackage (with fumigation-freewooden case):187kg, Vol. weight: 159.14kg Dimensions:Printer: L93*W93*H65cmPackage (with fumigation-free wooden case):L103*W103*H75cm, 0.796M3 HS Code:8443321300 Main application: Available materials: Cotton t-shirt, Polyster t-shirtand all kind of t-shirts.

Main application: Materials:Galvonized Steel, Stainless steel, iron, copper, brass, alloys, etc., Comprehensive application: Metal etching machine could be widely used in advertisment, signage, utilities, logo printing, arts andcrafts, machinery name plates, bill board, electronics board, mobile, etc.,

Configurations Taiwan HIWIN linear guide RD controller with USB interface (China) Water chiller: CW5000 (China) Stepper : Lead shine ,china / Servo motor: Panasonic (Japan) - optional Ball screw (Taiwan) Blade worktable: aluminum strips (China) Imported focus lens and reflecting mirrors (USA) Red light pointer (China) Auto focus / US imported Auto focusing sensor and with servo motor. Models:GL -1325 (150W) Working area(mm):1300x2500 Transmitting System:Movable gantry, middle driving Max.Cutting Speed:50m/min Reposition:±0.1mm Working Power Supply:AC220V±10% 50HZ X/Y Positional Accuracy:0.1mm/m Total power:2KVA-3KVA Temperature:10°C-35°C Humidity:5-85% Formats:CDR、BMP、PL、GPEG、DXF、DST. Main application: Available materials: Thin carbon steel, stainless steel(0.5-3.0mm), 30mm acrylic and other non-metal materials. Comprehensive application: advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.

Taiwan HIWIN linear guide RD controller with USB interface (China) Water chiller: CW5000 (China) Stepper : Lead shine ,china / Servo motor: Panasonic (Japan) - optional Ball screw (Taiwan) Blade worktable: aluminum strips (China) Imported focus lens and reflecting mirrors (USA) Red light pointer (China) Auto focus / US imported Auto focusing sensor and with servo motor Technical Parameter Models:GL -1325 (150W) Working area(mm):1300x2500 Transmitting System:Movable gantry, middle driving Max.Cutting Speed:50m/min Reposition:±0.1mm Working Power Supply:AC220V±10% 50HZ X/Y Positional Accuracy:0.1mm/m Total power:2KVA-3KVA Temperature:10°C-35°C Humidity:5-85% Formats:CDR、BMP、PL、GPEG、DXF、DST Main application: Available materials: Thin carbon steel, stainless steel(0.5-3.0mm), 30mm acrylic and other non-metal materials.

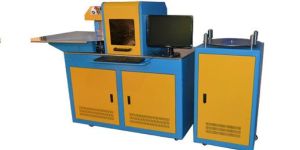

Technical Parameter Material Thickness : Stainless Steel: 0.4 ~ 1.0 mm, Iron/Aluminum: 0.4 ~ 1.2mm Material width:10 ~ 150mm Bending radius: ≥5mm Feeding speed: 10~40M/MIN Bending Motor:Step motor Power:1.7KW Voltage:AC220V, 50HZ Air Pressure:0.6~0.8MPA Size:1600*800*1550mm Weight:450KG Software:Questt software Input file format:.plt Communication port:USB Operation Interface:Touch screen Main application: Materials:Aluminium, Stainless tseel, copper and alloys. Comprehensive application: All advertisement industries.

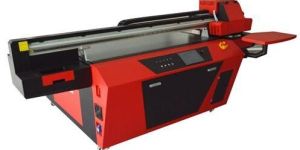

Technical Parameter Max. Print Format:24''*41'' (60x90cm) Print Head:Epson DX5 (Nozzles 180x8) Machine Type:1set UV printer, 1set Repair Kits, 1pc Cross small screwdriver, 1pc RIP UV Curing System:LED UV Lamp (air cooling)/ water cooling Max. Print Format:24''*41'' (60x90cm) Power Requirement:50/60HZ 220V(±10%)>20A Print Head:Epson DX5 (Nozzles 180x8) Environment:20 ~ 28 ℃ HR40-60% RIP Software:Photo Print RIP Operation System:Microsoft Windows 98/2000/XP/Win7 X/Y/Z-axis motors:Servo Motors Machine Dimension:140 * 130 *55cm Main application: Available materials: Metal, Plastic, glass, wood, Ceramics,Acrylic, Leather,etc. Comprehensive application: advertisement, arts and crafts, toys, textile garment, leather, car, mechanism, electron, building upholster, timekeeper and jewelery industry and so on.

Application : Laser Lens

Material : Glass

Diameter : 10-50mm, 50-100mm

Type : Laser Lens

Shape : Round

Color : Yellow, Light Yellow

Packaging Type : Corrugated Box

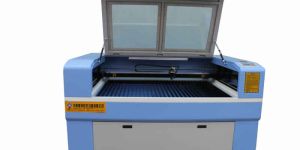

technical parameter working area: 1300 mm x 900 mm (4 feet x 3 feet) laser types: hermetic and detached co2 laser tube laser power: 80w (optional:60w/100w/150w) engraving speed: 0-75,000mm/min cutting speed: 0-40,000mm/min location precision: ≤0.01mm resetting positioning accuracy: ≤0.01mm power supply: ac 220v/50hz gross power:

Type : Laser Engraver Machine

Application : For Engraving

Weight : 100-500kg, 500-1000kg

Voltage : 110V, 220V, 280V,380V, 440V

Condition : New,Old

Driven Type : Electric,Hydraulic, Pneumatic

Color : Silver, Grey, Black

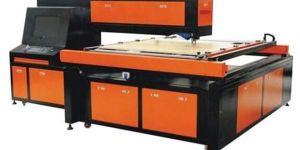

Processing scale:1200x1500mm Machine weight:1500kgs Laser type:CO2 Sealed laser tube Laser power:300w double heads Driving motor:Panasonic servo motor Cutting depth:18mm-25mm plywood Cutting precision:±0.05MM USB port connection:Yes Operating temperature:0-45°C Blade thickness:0.45mm, 0.71mm,1.05mm…etc. controllable Cutting speed:23-30 meters/hour 18-20mm plywood Protective gas:Dry and oil-free air Power supply:Single-phase electricity 220V±5% 50HZ 10A Numerical control panel:LCD screen, light-touched key-press Software supported:CorelDraw, AutoCAD, Photoshop, Graphic format support:PLT、DXF、BMP、JPG、GIF、PGN、TIF EMS memory:Attached 32 MB memory, can work under off-line condition Assistant equipments:Air Dryer, industrial chiller, Exhaust Fan, Computer System Recommend spare parts:Laser Tube and Lens

Automatic Grade : Automatic , Fully Automatic, Manual , Semi Automatic

Condition : New,Old

Color : Silver, Grey, Black

Voltage : 110V, 220V, 280V,380V, 440V

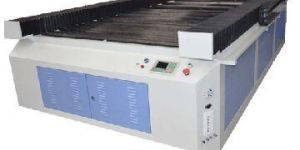

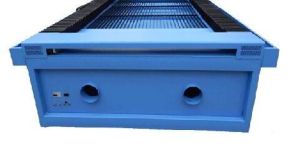

Max working area:1300×2500mm Laser Types: Hermetic And Detached CO2 Laser Tube Laser power: 80W (Optional: 60W,100W,150W) Engraving speed:0-75,000mm/min Cutting speed: 0-40,000mm/min Location precision: ≤0.01mm Resetting positioning accuracy: ≤0.01mm Power supply: AC 220V/50Hz Gross power:

Material Thickness : Stainless Steel: 0.4 ~ 1.0 mm, Iron/Aluminum: 0.4 ~ 1.2mm Material width:10 ~ 150mm Bending radius: ≥5mm Feeding speed: 10~40M/MIN Bending Motor:Step motor Power:1.7KW Voltage:AC220V, 50HZ Air Pressure:0.6~0.8MPA Size:1600*800*1550mm Weight:450KG Software:Questt software Input file format:.plt Communication port:USB Operation Interface:Touch screen

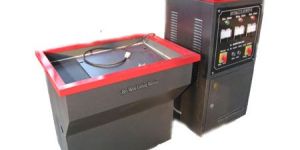

Overall Size : 1.2*0.9*2.2m Power:3kw Weight: 150kgs Voltage current: adjustable Main application: Materials:Galvonized Steel, Stainless steel, iron, copper, brass, alloys, etc., Comprehensive application: Metal etching machine could be widely used in advertisment, signage, utilities, logo printing, arts andcrafts, machinery name plates, bill board, electronics board, mobile, etc.,

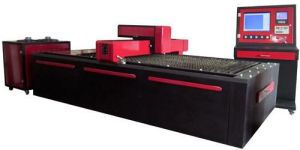

Processing scale:3000mm*1500mm Cutting thickness:0.15-8mm Laser power:500W Transmission:Ballscrew Motor:Servo Motor Pulse frequency:1-450Hz Min.line width:0.15mm Electrical source:AC380V/50HZ/100A X/Y/Z/axis re-orientation accuracy:

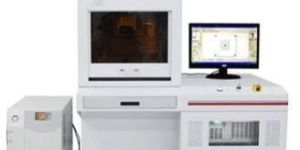

Wavelength(nm):355 Pulse repetition rate(kHz):20-100 1-20 Pulse width(ns):

Max.LaserPower : 10W 30W 60W 100W LaserWavelength :10.64um MarkingArea:70mm*70mm(Standard) AdjustableMarkingArea:100mm*100mm/140mm*140mm Marking Depth :≤2mm/≤3mm/≤5mm/≤8mm Marking Linear Speed :≤7000mm/s Min LinearWidth :0.1mm Min Character :0.4mm RepetitionAccuracy: ±0.01mm Rated Power Consumption:300W/1.2KW/2KW/4.4KW SupplyVoltage :220V/50HZ

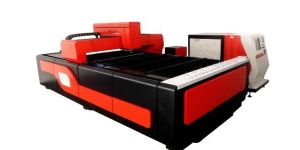

Machine tool(X-axis and Yaxis are rack & pinion driven,z-axis is ball screw driven):DF4020 Gantry beam:DF4020 Exchanging working table:DF4020 Laser cutting head:200mm focal length Height following sensors:Germany precitec capacitive sensors CNC system:Germany siemens 840D Operating software:Australia laserlab-sim laser cutting operating system Servo motor:Germany siemens servo motor Control cabinet,operating console,handset unit:DF4020 CAD/CAM Software:Farley CNCKAD Laser:Germany IPG YLS-3000 Chillers:Being support for IPG Laser Ventilation dust removal device:DF4020 Supplementary gas system:The main components are imported like SMC and others 3-phase regulated power supply:shanghai zheng hua

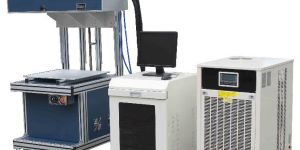

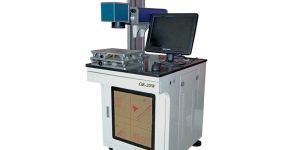

Laser power:20W(MFP) Wavelength:1064mm Beam quality:m2 100000h Main application: Comprehensive application: Ink and paint; phone battery labels, panels, phone key-press, small daily necessities, accessories and so on. Ceramics, EP materials; marking of electronic component package, IC, etc. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders. Metal and its surface; Stainless steel, copper, aluminum and electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc. Keyboard and keystoke; Fine Marking of keyboard and keystoke.
