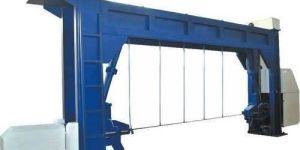

Block Dressing Machine Dealers in Udaipur

• Type: Semi Automatic
• Certification: CE Certified
• Application: Industrial
• Material: Iron
• Production Capacity: 40-100 Ton
• TECHNICAL SPECIFICATION FOR (3 MTR. X 4 MTR.): 1
• Main motor HP: 30 HP. / 960 RPM
• 2: Cutting speed Motor
• 2 HP. / 1440 RPM: 3
• Fast lowering Motor: 5 HP. / 1440 RPM
• 4: Trolley Motor
• 3 HP. / 1440 RPM: 5
• Trolley Turntable Motor: 2 HP. / 1440 RPM
• 6: Total Power HP

• Blade length: 4100 x 180 mm
• Useful Cutting Length: 3500
• Size (L x W x H): 8150 mm x 1200mm x 4000 / 5900 mm
• Blade length: 4100 x 180 mm 4200 x 180 mm
• Number of Stroke: 150
• Stroke Length: 450
• Useful Cutting Length: 3500
• Size (L x W x H): 8150 mm x 1200mm x 4000 / 5900 mm

Apart from cutting face and plinth of block for further cutting on Gangsaw Machine, our Mono Blade Block Dressing Machine can be used for executing wide array of stone processing applications. It is also used to make thick slabs and small size blocks, out of the big marble and granite block. These high performance single blade block dressing machine have been designed to produce optimum performance at handsome operational cost.

We offer Single Blade Block Dressing Machine. Single Blade Block Dressing Machine, facilitates sawing of marble agglomerate block in slabs of varying thickness. The structure of machine is made up of two high quality steel columns and a cross beam, to ensure maximum stability during sawing. Sawing is done by a combined mechanical and hydraulic movement transforming the mechanical movement into a hydraulic one to obtain optimal tensioning, precise and regular sawing of block. The hydraulic tensioning of blade is continuously maintained by electronic instruments fitted in control panel. The machine is supplied with fixed table trolley rotating table trolley. The trolley runs on two flat and two prismatic wheels to ensure their precise displacement. The movement of trolley is governed by control panel. The machine is fully automatic and all safety factors are incorporated in the control panel. Once in operation, the machine does not require continuous presence of operator.
