Cranes Dealers in Udaipur

We bring forth the finest quality Gantry Crane in Rajasthan, India. Our Cranes are widely used in heavy-duty industries due to its high weight lifting capacity. Gantry Crane that we offer is capable of lifting 20 tons to 60 tons of material. Our Cranes are corrosion and abrasion resistant. We make available Gantry Crane with different technical specifications according to the requirement of buyers.

• Lifting Capacity: 10 M.T. To 50 M.T.
• Lifting Height: 6 Mtr.
• Rail Center to Center: 12 Mtr.
• Overhanging from Pillar to Center: 4 Mtr.
• Hoisting Speed: 7 Mtr. / Min.
• Cross Travel (winch Trolley Speed): 3.5 Mtr. / Min.
• Long Travel Speed: 8.5 Mtr. / Min.

• Automatic Grade: Electric, Mechanical
• Brand Name: KMC
• Color: Red
• Condition: New
• Power: 100-300bhp, Any
• Application: Construction
• Certification: ISO 9001:2008
• Feature: Capable For Load, Heavy Weight Lifting, Strong

Derrick cranes

• Feature: Capable For Load, Customized Solutions
• Condition: New
• Automatic Grade: Electric
• Power: 100-300bhp, 300-500bhp
• Load Capacity: 0-50Tons, 200-250Tons
• Warranty: 5years

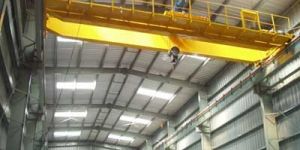

We offer Industrial Cranes that has a rational structure with box construction that is linked by cross beams and is strengthened by stiffing ribs. These gantry cranes are available with double rim wheels that are made up of steel and have an electro-magnetic shoe brakes. It has a block attached to it that is equipped with forged steel and revolving hook. Industrial crane also has an access ladder that lead to a walkway inspection that moves along one beam. Besides this, it is manufactured with a walking surface that has a foot guard and railing. These Industrial EOT Cranes are utilized for outside pillar station movement or in-house for the purpose of lifting heavy and light jobs. We are ranked as the chief Industrial Gantry Cranes Manufacturer and Exporter from India.

Welded L-iron used for making column, arm and rafter Hinge attachment on upper part column for the rafters and multiple tackle supporting the arm The bottom of the column is joined to the winch the pivot fitted to this rotates on a special thrust bearing. The arm and hook can be raised or lowered simultaneously or independently Electro hydraulic provided brakes. Swivel steel pulleys on sealed roller bearing with ground steel pins. Block with steel pulleys and single or double hook (with anchor) rotating on a thrust bearing. A winch unit electric motors drive the gear speed reducers. These are case hardened, tempered and rotated in an oil bath. derrick cranes manufacturers, jib cranes manufacturers

We offer the best quality Pick and Carry Cranes in the market starting with 5 tons and going up to 21 tons. The Hydraulic Pick and Carry Cranes offered by us can lift the heavy loads and march them from one place to another on premises with variety of activities. They carry their own load and move making operations possible without an additional carrier. In addition to this, we are top Pick N Carry Cranes Suppliers in India. These are hydraulic mobile cranes that lift the load and carry the same for shifting from one place to other. Capacities range from 5 to 23 tons and reach upto 22 metres standard. Source : Escorts Construction Equipment Limited. Salient Features Pick-N-Carry Cranes designed to meet the requirements of almost all Segments of the Industry. Diesel Engine Driven. Multi-Part Booms. Jibs and Different Attachments. Various Models of Cranes are also available from Escorts Construction Equipment Limited.

Jib cranes consist of a horizontal beam called "Jib" upon which ahoist is Placed. These hydraulic jib cranes may mounted either inside the side of awall, or upright in a floor or a foundation.div>   Jib Type Crane 15 Tone Capacity Gadam made of M.S Gurder 10" x 5" fitted M.S. Gear and C.I Padestal and support made of M.S. Channel or gurder fitted with pattley and Jib made of M.S. Gurder 8"x 4" upto 32' length fitted with Pattley complete crane without wire rope. Jib Type Crane 20 Ton Capacity Gadam made of M.S. Gurder 12"x 5 ½" fitted with M.S. Gear and C.I Pulleys and support made of M.S. Gurder fitted pattley and Jib made of M.S Gurder 10" x 5" -32" length fitted with pulley complete crane without wore rope. Jib Type Crane 30 Ton Capacity Gadam made of M.S. Gurder 14" x 5 ½" fitted with M.S. Gear and C.I. Pulleys and support made of M.S. Double Gurder 12"x 5" fitted pattley and Jib made of M.S. Gurder 12" x 5"-40' length fitted with pulley complete crane with Base Plate & Foundation bolts without wore rope. Jib Type Crane 35 Ton Capacity Gadam 20' height Joist 400 mm and shaft 5" square with C.I Rope drum and M.S Gear 60" x 5", full plate type with all accessories comp. Fitting with I" dia bolts & nuts. Supports made by Double M.S Joist 300 mm with M.S angle 75x6 mm complete welded and fitted with pattley 75 mm x 250 mm & 75 mm x 225 m with I" dia bolts & nuts complete with foundation bolts, Jib made of M.S joist 350 mm with 75 x 6 mm M.S angle complete welded plates fitted by 1" dia bolts & nuts and M.S coupling welded for fitting of pulleys & Pins and Bas Plate fitted with pine 142 dia complete with foundation bolts. Engine air cooled Fueld Marshal Differencal (TATA) Old Gear Complete unit fitted on the Channel Frame All Respect.

We are reckoned amongst illustrious suppliers of derrick cranes supplying to purchasers through assorted markets. Making sure to capture all marketplaces of Udaipur(India), our organization has arisen as an established provider of this range of product.

Rational structure is of box construction, adequately designed and reinforced by stiffening ribs, to take care of all types of loadings. This is connected by cross beams. The unbraced legs are hinged near the leg beam attachment. The complete structure is mounted on four wheel base, each having two double rimmed steel wheels provided with flexible bushing to take care of any misalignment. The top beam is firmly fixed on heavily fabricated steel bracket. The crab carriage is in steel section. It is comprised of special crane duty motor, connected to heavy duty speed reducers and are coupled up to a grooved steel drum.Electromagnetic brakes / hydro-thruster brakes are used to control the smooth lifting of weight. The block is equipped with a forged steel forked revolving hook. Wire Rope is of 6 x 37 construction. Access ladder leading, to inspection walkway, which runs along one beam and is made of walking surface with railing and foot-guard. Electric operations are controlled with push button control unit, independent from the position of Winch Trolley and sliding in loop through cable carriers. Limit switches for cross to ensure accident free operations.

Rosava stands out for its advanced technology and design with proven reliability and efficiency to meet the most demanding market requirements. Experience, quality and investment in research and human resources have enabled Rosava to continue its leadership in the market.

Gantry Crane is one of the most important machine of any stone processing company and various other industries. We are Gantry Crane Manufacturer. Our Gantry Cranes are capable of lifting various load sizes as per requirement of client. These Gantry Cranes are manufactured as per custom requirement of buyer, so that it can provide optimum output to you, for your specific need.

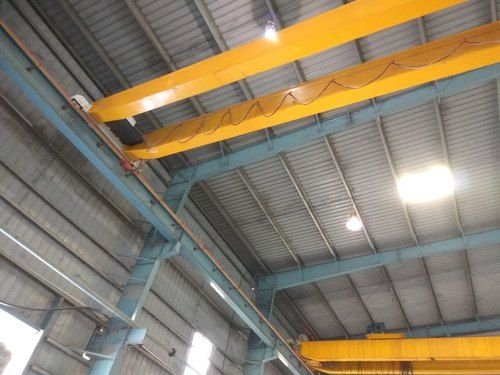

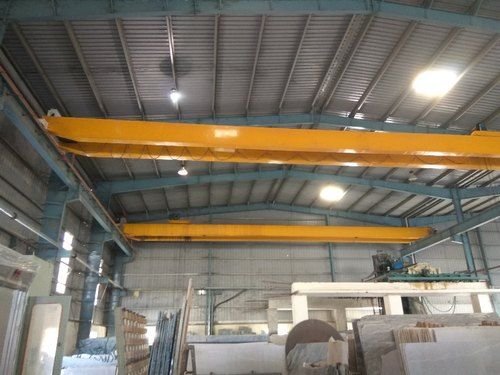

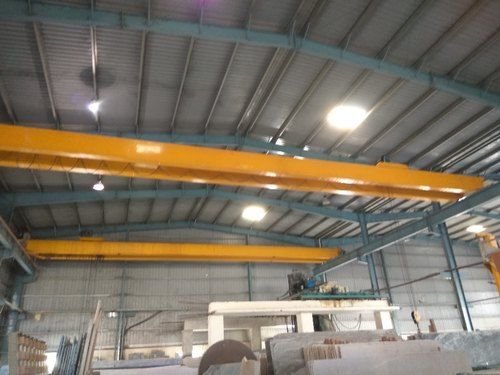

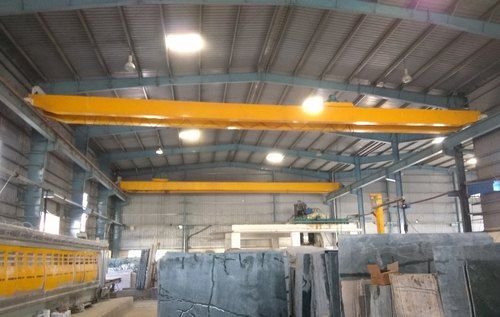

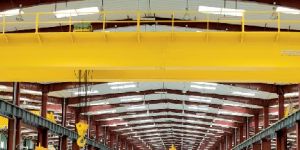

Over Head Crane - for in-house or outside piller station movement for lifting light to heavy jobs. Dual speed motor optional.

• Application: Construction site , industrial
• Capacity: 15-50 ton
• Max Height: 5-6 meter
