Digital Pyrometers Dealers in Udaipur

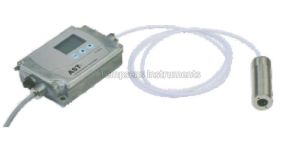

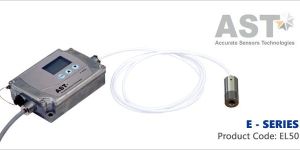

EL50-H is a digital Pyrometer in economic range with extended sensor head in 4 wire technology, for non-contact temperature measurement between 0oC to 800oC.The sensor head is unaffected by electromagnetic interferences. The pyrometer sensor head is specially designed to withstand ambient temperature upto 180oC without cooling.Details : The pyrometer is equipped with a Inbuilt 4 digit LCD display which offers many signal processing features. The electronic box with integrated Keypad helps in  setting parameters like Emissivity,Analog Sub range,Set point,Hysteresis (Hyst),Analog Output,Unit of temp(°C or F),Response Time,Peak Picker and Sensor address etc. Analog outputs options available are 4…20mA, 0…20mA, 0…10V, Thermocouple type “K” or “J” (userselectable) via keypad or software. RS- 232/RS-485 serial interface card is available as optional. EL50-H is provided with USB 2.0 output and PC software. The pyrometer can be powered through USB port. In this case no external power supply is required. 24 V DC is required for operation of Analog Output, RS - 232 & RS - 485 & Relay Output. Features : Power supply (12V DC to 28 V DC) with reverse polarity protection Sensor head can withstand ambient temperature upto 180°C Spectral range 8 μm...14 μm Wide temperature ranges (0oC to 800oC) Inbuilt LCD Display and Keypad for parameterisation Fast response time within milliseconds Analog output like 4…20mA, 0…20mA, 0…10V, Thermocouple type “K” or“J” (user selectable) USB2.0 Digital output and RS-232/RS-485 Serial interface card Relay output User friendly PC software for communication Standard Scope of Supply : Pyrometer with LCD Display Keypad for parameterizing, Extended sensor head with 3m cable USB 2.0 Digital output, USB Cable Relay Output Analog output 4…20mA, 0…20mA, 0…10V, Thermocouple Type “K” or “J” (user selectable) Calibration certificate, Software & operation manual Optional : Mechanical and Electrical Accessories RS-232 & RS-485 serial interface card Extra Cable Lengths Applications : Plastic, Rubber & Ceramic Fluids Paper Oxide/Painted metal surface, Textile Wood and Glass Industries Product Feature : Digital pyrometer with extended Sensor head. Analog and digital output, USB 2.0 Output, Inbuilt LCD, Laser Targeting & keypad for parameterization FOR Hot Environment UPTO 180oC Temperature Range : 0oC - 800oC
