J.b. Engineers Surajpole, Surguja, Rajasthan

This is main part of wire saw machine which is rotate of segment wire chain. This is making of aluminum.

Size : 800, 790, 640

Weight : 30 Kg, 32 Kg 20 Kg, 22 Kg

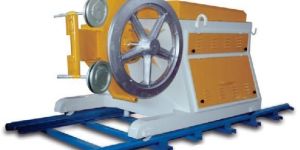

JB have developed the 60 HP & 40 HP Wire saw Machine to suit the entire Marble & Granite quarry with competitive price. The machine has a stronger weight of 1900 Kg. approx. This provided better stability and accuracy in quarrying. For maximum efficiency, we provide a comprehensive service package which included training commissioning and operative instruction. Description: Machine is equipped with 1 H.P.D.C. motor with variable speed. Machine works through worm and worm wheel. Independent control Panel 800 mm main pullery giving wire saw speed of 24m/sec. Dimension: Height – 1200 m Length 2700, Widely 300 m Weight 1900 Kg. Approx. Features: Air exhaust system is given in gear box so that oil seal can be effect free. The main feature which has given is that its fully covered by flange and grease system is applied when using in horizontally & vertically for cutting so that it can be secure from water. Hard chromium is applied on main shaft so that it can be secure from water.

Joint sleeve has the main function of the crimping like, Steel lock in the diamond wire. Joint is used for crimping and holding the both ends of the inner carrier wire. We produce two types of joint sleeves from high quality mild steel materials and high purity copper materials. The Joint Sleeves are made from Mild Steel tubes with electroplating on surface to avoid rust and weather effect and from Copper tubes to avoid breaking problem and best crimping result during diamond wire assembly with some standard sizes are as follow.

High carbon content steel wire / rods which are extra hard are easily cut by special alloy steel drop forged jaws. These heavy duty bolt cutters can easily cut hard wires. Jaws will be blackened and handle in shiny yellow colour.

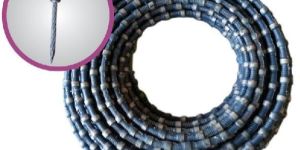

JB wires can get you the optimum performance at quarry operation which saves fuel or electricity by giving free cutting with maximum life. Out plastic coated wire chain is used in granite and other stone mining operations.

Diameter : 11.5 mm and 11 mm

We bring forth high quality Diamond Wire Saw Beads that are specially manufactured to meet the demands of the Stone Sector. Diamond Wire Saw Beads are well appreciated for its durable finish and high strength, among the clients. Diamond Wire Saw Beads which makes them efficient enough in cutting Limestone, Sandstone, Granite, Concrete, and Asphalt.This has attracted them to place repeated orders.

The Washer has the main working function in diamond wire to grip and close both ends of diamond beads, which ensure the life of inner carrier wire. We are manufacturing washers from mild steel materials with special heat treatment and electroplating on surface to prevent rust which gives more life of diamond beads. The Washers are made from forging grade mild steel materials with electroplating on surface to avoid rust and weather effect with some standard sizes are as follow. We also make special washer size 10mm x3mm Length to avoid to damage the bond of diamond beads and to avoid to wear out steel shanks of diamond beads which gives the better life of diamond beads and we can supply special conical washer size 8mmx5mm on customers` request. The washers are supplied with 2000 Pcs./Pack with standard brand packing of our company.

Lock Has the main function of the crimping in the diamond wire,Which holds and controls the movement of diamond beads and springs in between the part of the lock to lock. We are producing steel locks from mild steel materials and our high annealing treatment makes it. The locks are made from forging grade mild steel materials to avoid breaking problem with electroplating on surface to avoid rust and weather effect with some standard sizes are as follow. We also make special lock size 8.25x6mm for the best crimping result during diamond wire assembly. The Locks are supplied with 500 Pcs./Pack with standard brand packing of our company.

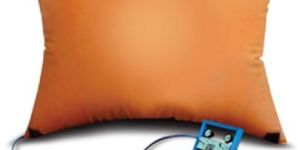

This machine is used in marble and granite quarry. It can push block upto 4” to 18”. But it depends on block's position. It's been used after all side wire saw machine cut. It can work fast, it's a repairable and work's for a long time. Dimension Size : Big 9’ x 6’ | Medium: 5’ x 6’ | Small: 5’ x 4’ | Thickness: 15 mm.

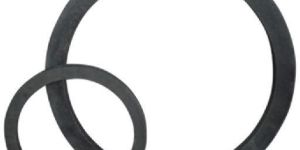

Rubber ring is a part of diamond wire saw machine which is fixed on the aluminium wheel to rotate the diamond chain in its oval rotation.

The organization is a trusted name based in Udaipur(India) and known for its fair pricing policy. Buyers can contact us all year round for purchasing reliable pneumatic rubber bags at market leading prices.

We are manufacturing high tensile and flexible galvanized inner wire rope with perfect lay and uniform dia 4.9mm for marble and granite quarrying for optimum life, which is suitable for accessories of inner dia 5mm to 5.1mm Our special developed High Tensile Inner Carrier Steel Wire Rope Available in standard Dia. 4.9mm(+/-0.05mm) for multi application like; Marble and Granite Quarrying, Concrete cutting, Marble and Granite Block Squaring(Dressing) diamond wires for Optimum life and more out put. The Rope is available in standard length 500 Mtrs and 1000 Mtrs per Wooden Spool. The same Rope is used for above said multi applications for Springs mounted assembled diamond wires for marble cutting, Rubber coated diamond wires and Plastic coated diamond wires for granites and concrete cutting.

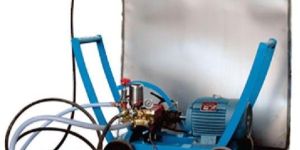

The Hydro (Water) bag is manufactured from the finest quality high tensile steel. Hereby guaranteeing flawless performance. The bag is inserted in the crack in the block and it separates the block. Machine is equipped with 2 HP.AC. motor,Hydro bag is operated with Water pump, It is use and throw type bag. It's usable for one time.

The Hydro (Water) bag is manufactured from the finest quality high tensile steel. Hereby guaranteeing flawless performance. The bag is inserted in the crack in the block and it separates the block. Machine is equipped with 2 HP.AC. motor.Hydro bag is operated with Water pump.It is use and throw type bag. It's usable for one time. DimensionsSize : 1000 m. x 1000 m., 1000 m. x 500 m.,500 m.x 500 m.

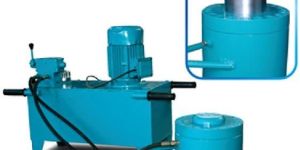

This machine is used in marble and granite quarry. It is used to push the stone. Hard chrome is applied to on piston. Its very hardened material. H6. 486 hydraulic cylinder hardened and grinding. Hydraulic pump 3 way piston polyhydron made. Oil seal of bronze Teflon is used so that it can be usable for long life. Machine is equipped with 2 HP.AC. MotorHydraulic jack pushing capacity is 6 Inches & Whatever is your need.Hydraulic jack and power pack capacity 300 ton Hydraulic Cylinder Size OD 250 mm. and Height is 300 mm.Hydraulic Power pack length 500 mm., Width 300 mm., Insertion View Height 200 mm.

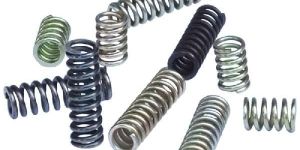

Spring is the vital part of the diamond wire, which has the main function of shock absorb in diamond wire during cutting activity. We are manufacturing special high quality tempered and both ends smooth grinded springs from high carbon steel wire with electroplating on surface to prevent rust, Which gives optimum life and excellent cutting speed of diamond beads.

Material : Steel

Length : 12, 27 & 28

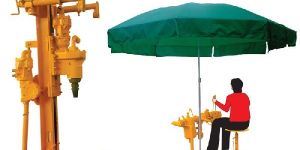

This machine is used for drilling in quarry. It's a master piece and it can be used to drill both vertical and horizontal upto 130 meter. While drilling in any direction, it gives 15 degree flexibility by ball joint between feed beam and anchoring frame.The machine is very easy to operate and maintain. The gear box and planetary grease system is given, so that no need to change oil regularly. It can work for long time with grease.  It has 2 way hardened grinded lever. The control unit panel has pressure regulator, for easy operation. Popular Name : LD4 Drilling Machine, Marble mine Drilling Machine Descriprtion: Compressed air requirement : 6-12 bar (250/100 cfm. – 325/100 cfm. – 450/100 cfm.). Feed force = 8 K.N. Dimension: Machine length: 3230 mm. Width : 812 m. Height: 1060 mm. Weight : 800 kg. Approx Machine Feature: 4 cylinder hardened grinded steel double piston motor with high torgue. Single planetary rotation EN Series Unit with reduction gear. Covered leveling jack easy usable for LD 4 alignment. Gear box and palentry Grease system is given, so that no need to change oil regularly. It can work for long time with grease. SGI grade steel casting air motor. SGI grade steel casting air motorWorm gear & Liner phosphorus broze material. 2 Way hardened grinded lever. Operated control unit with pressure regulator. Ground clearance 3” and 4” hammer and 3.5” with 3” hammer.

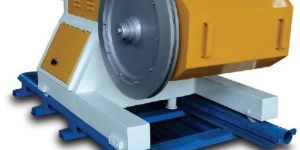

JB have developed 20 HP Wire Saw Machine is made to work on smaller cuts upto 25 Sq.m., such as in block dressing of stones. It is also complements 60 HP Wire Saw machine and has a similar installation and service package. Machine is equipped with 1 HP.DC motor with variable speed. Independent Control Panel 600 mm main pullery coupled directly on motor.

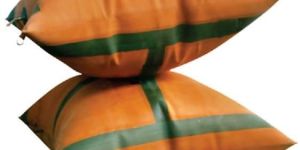

It is our new design. It's a same like single air bag. Because of its double so it can push block upto 12” to 24” and it can drop the block if it in long height. SpecificationAir bag are available in capacities ranging from 1.1 tons to 200 tons.Air bag operates on standard shop Air upto 166 PSI tractor check. Dimensions5' x 6' & 9’ x 6’ (Double bag) Thickness : 25 mm.
