Mechanical Clutches Dealers in Udaipur

Our company is among the leading Manufacturers, Suppliers, and Service Providers of high grade Flange Mounted Clutches. The Flange Mounted Clutches offered by us are chiefly made by using optimum quality raw materials, which have been procured from the most reputed and reliable vendors of the country. We make available these highly durable Flange Mounted Clutches at market leading price. Working This type of brakes is normally-off type and operates on power. When power is given to the stator (coil), the armature is attracted towards the asbestos free friction liner of the brake stator which clamps the rotating component stop at once. On switching off the electric power, the unique pre-stressed spring pulls the armature plate back into its original position and brake positively released with no residual torque. Typical Applications Textile MachinesMaterial handling equipmentsConveyorsMachine ToolsGlass making MachinesMarble Cutting MachinesStone Polishing MachinesPhotocopiersPackaging Machines Component Description StatorRotorCoilFriction LiningArmature PlateLeaf SpringFlanged Hub Switching Normally off type clutches operate on D.C. voltage, hence A.C. to D.C. conversion is done by means of a suitable rectifier. Switching of the brake can be on either side. However, once application demands, higher switching frequency / faster engagement and disengagement time, switching must be carried out on D.C. Side. To restrict the high inductive voltage / back EMF a suitable supressor and capacitor network is provided across the contactor coil.

• Voltage: 24 VDC
• Driven Type: Electric
• Type: Textile Machine
• Usage: Textile Industry
• Condition: New
• Product Name: Electromagnetic clutch

vna engineers manufacturer of vide range of products with brand name of 'indoflux ' . Offer a wide range of electromagnetic clutch , brake , bearing mounted clutch , bearing mounted brake , flange mounted clutch , flange mounted brake , clutch brake combination  enclosed as well as open type , failsafe brake , rotor for failsafe brake , custom design of electromagnetic clutch brake  as per customer requirements .  aplication area  -  1) textile machineries , lr c 1/3 card machine  , draw frame , speed frame , ring frame , cheese winding etc . 2) packaging machinery -  form fill seal machine , capping machine , levelling machine  etc . 3) industrial washing machine  , carnes , lifts  etc. 4) marble processing machine  such as dressing machine  . 5)  steel plants  machinery  6) cement plants  such as stacker reclaimer    7)  machine tools , printing machinery , robotics 8) tyre making machinery , 9) construction machinery   10) coil winding machinery   11)wire drawing machinery  12)battery operated electric vehicles , wheel chair , x- ray machines ,  13)cranes and hoists , servo motors , presses ,  tower cranes , goods lifts , golf carts and many more

• Type: ELECTROMAGNETIC
• Brand Name: RETAKE ELECTROMAGNET
• Application: POWER TRANSMISSION

We have made our mark as a reliable Manufacturer and Supplier of Electromagnetic Clutch in Rajasthan, India. The Electromagnetic Clutch that we offer is made using top-notch quality metal and other raw materials. Moreover, we also have the ability to take up even the bulk orders and will deliver within the postulated frame of time. Excellent performance, longer working life and top quality are the features that have fetched a lot of buyers.

TYPICAL APPLICATIONS : Textile Machines, Material handling equipments, Conveyors, Machine Tools, Glass making Machines, Marble Cutting Machines, Stone Polishing Machines, Photocopiers, Packaging Machines... etc. WORKINGFlange mounted clutches are normally off type and operate on DC voltage. On applying DC voltage to the stator (coil) strong magnetic filed is produced, which pulls the armature towards the friction material of the rotor over the air gap and torque gets transmitted free of back lash.On switching off power supply, the unique prestressed spring pulls the armature back into the original position and clutch is positively released free from residual torque. SWITCHINGNormally off type clutches operate on D.C. voltage, hence A.C. to D.C. conversion is done by means of a suitable rectifier.Switching of the clutch can be on either side. However, once application demands, higher switching frequency / faster engagement and disengagement time, switching must be carried out on D.C. side. To restrict the high inductive voltage / back EMF a suitable supressor and capacitor network is provided across the contactor coil.

Since inception, our company has upheld its policy to make timely delivery. Thus, we guarantee to deliver products to buyers doorsteps on the dates promised. We are a distinguished name in the domain and are placed in Udaipur(India) from where we operate.

Salient Features Simple construction Stationary field (No slip ring) Slotted armature for torque stability Single plate dry type High operating reliability & frequency Maintenance free simple construction Unique pre-stressed springs Coil with class 'F' Insulation No restrictions on mounting positions Working of EBMC EXCEL bearing and flange mounted clutches are normally off type and require DC voltage for operation. When stator (1) is supplied with D.C. voltage the armature plate (5) is attracted towards the friction material (4) of the rotor (3) over the air gap and torque gets transmitted free of backlash. When the supply is switched off the prestressed springs (6) pulls the armature (5) back into its original position free of residual torque even when mounted vertically. Description Stator Coil Rotor Friction Liner Armature Plate Spring Flange Bearing   Size Selection and Ordering Information Approximate necessary Torque or Size of a unit for applications involving low inertia & low operating frequency is determined as ; TORQUE = [ 9550 x (K.W. / SPEED)] x SAFETY FACTOR [K] Safety Factor [K] To ensure necessary transmission safety also under extreme operating conditions adequate safety factor must be considered the value of which depends on operating conditions namely, the type of load, prime mover etc.   Typically [K] For Electric drive Low masses equal loading & non-intermittent operation [2.0] Low masses light shock load & intermittent operation [2.5] Medium masses, light shock load & intermittent operation [3.0] Large masses, light shock load & intermittent operation [3.0] Non-overhauling loads [2-3] Overhauling loads [3-4] Diesel engine drive [4-5] Compressor driven [5-6]   However, we recommend you to perform detailed calculations for which please consult us. Life Of Friction Material The life of the friction liner depends on a number of factors namely, the inertia to be retarded or stopped, the relative speed, the operating frequency, the temperatures at the friction surfaces etc. These Clutch must run dry. Oil, grease, foreign materials & other lubricants affect life and characteristics of friction material. Electrical Connections The Clutches are operated with DC. connection from three phase or AC mains network can be made via a transformer rectifier, bridge rectifier or half wave rectifier. To restrict the high inductive voltage / back EMF a suitable Supressor and Capacitor network is provided across the connector coil as shown in fig.

Normally off type clutches operate on D.C. voltage, hence A.C. to D.C. conversion is done by means of a suitable rectifier.Switching of the clutch can be on either side. However, once application demands, higher switching frequency / faster engagement and disengagement time, switching must be carried out on D.C. side. To restrict the high inductive voltage / back EMF a suitable supressor and capacitor network is provided across the contactor coil.

Functioning smoothly from Udaipur(India); we are capable enough of serving the clients in a shortest time possible. You can make payments through online methods such as net banking, PayPal, or offline methods such as draft depositing, cash on delivery etc. Our policies regarding payment are swift and transparent.

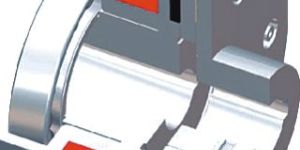

Bearing Mounted Clutch, auto brakes, Resistance Temperature Detectors

bearing mounted clutches, Electromagnetic Clutch Brake, Flange Mounted Brakes

Flange Mounted Clutches, Spring Loaded D.C. Fail Safe Brake

Electromagnetic Clutch
