Pyrotech ELectronics Pvt. Ltd. Madri, Udaipur, Rajasthan

Power Consumption : 0.5W

Dimension : 40 (Dia) x 63 (H)  mm

Supply Voltage : 140-270V AC

Operating Temperature : -40ºC to +50ºC

Input : 0-20mA, 4-20mA, 0-10V, 1-10V, 0-5V, 1-5V, 0-40mV, Range : -19999 to +19999, Display : 5 digit, 0.3", Seven Segment, Input accuracy : ±0.10% of span ±1digit, Communication : RS485 Modbus Protocol (optional), Power Supply : 24 VDC, ±10%.

StackerReclaimers can be found in cement, power, steel industries where bulk movementstorage is needed. Stackers receive material from other stockyard equipment via a conveyor network and deposit it in a bunker or pile. Reclaimers remove the same material and deliver it to other stockyard equipment via a conveyor network. It is very important to have information such as movement of stackerreclaimer to control room while in operation. For example, if reclaimer is to be started, the reclaimer yard conveyor has to be started first and the same signal is to be given to the reclaimer. In the same way, the stacker yard conveyor has to be started after starting the stacker machine only. So stacker running signal is sent to the Central Control Room (CCR), which in turn, sends signal to stacker yard conveyor. If there is a delay in these signals then tippler chute will get clogged. The main requirement of the signal interlocking is to prevent the clogging of both machine.The wireless approach not only avoids CCRD cable but also avoids CCRD drum and motor to run it. Furthermore, the signals can be easily expanded in future. If PLC's are not available, then hardwire IO's can also be transferred wirelessly.

Power Consumption : 36W

Dimension : 1250 (L) X 75 (W) x 20 (H)

Protection: Weatherproof, corrosion protection against acid & Caustics up to IP-65   Advantages Used as analyzer and sample processing unit, E-rooms Fully Insulated No Condensation Vary low heat gain from direct sunlight, fully dust and moisture free.

Construction: Alcosy, Welded   Application: Sub Station, Power Plant   Features It is used for housing of various kinds of relays like auxiliary relays and protection relays. We provide fully engineered panel from your single line diagram to the complete solution. We supply the relay interlocking hardwired console with time delay circuits

Power Consumption : 0.5W

Dimension : 40 (Dia) x 63 (H)  mm

Purge Panel/ enclosures are designed and developed for safe use of electrical products in highly explosive areas. Features: Purging is done as per NFPA-496. 3 Types: Purging Enclosures, Explosion Proof Enclosures & Normal Enclosures.

Construction: Welded, Semi Welded (Bolted)   Application: Power Plant & Process Plant   Features Power Control center [PCCs] normally comprise of either breaker panels only or breaker and MCC Panel coupled together [PMCCs]. Breaker panels can be offered in single or two tier configuration. Breaker panels are suitable either for cable or bus duct entry from top or bottom.   Protection: IP-53/54/55

NG cubical is used to install Neutral Grounding Transformer (NGT) and Neutral Grounding Resister (NGR) for grounding / earthing of neutral current during unbalanced three phase load of a generator, essentially required for protection of the generator winding.   Construction: Welded   Features These LAVT cubicle are enclosure for housing: Lighting Arrestor [L.A.] Sugar Capacitor [S.C.] Voltage Transformer [V.T.] NG cubical is enclosure for installation of : Neutral Grounding Transformer [NGT] Neutral Grounding Resister [NGR] Current Transformer [C.T.] Complete with bus bar & Rack, with Transformer + LA can be (Optial)

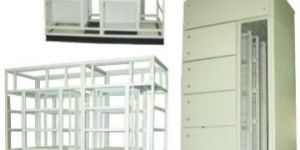

Construction: Welded, Semi Welded (Bolted)   Application: Power Plant & Process Plant   Features Our MCC are made in fully compartmentalized modular design cabinet system designed for powering and controlling motors. As per standards IS 8623 & IEC 60439 Our MCC are two types (1) Fixed type MCC (2) Drawout MCC Provision of single front and double front

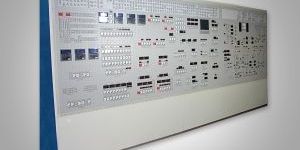

Mosaic Panel is the most user friendly, reliable and economical approach to process visualization. It is suitable for all kinds of control and monitoring indicator board, for process control, power networks, & security etc.
