Shilpa Trade Links Pvt. Ltd Shobhagpura, Udaipur, Rajasthan

Unlike oil sealed ones, water - ring vacuum pumps are capable of creating vacuum up to 710mm Hg only which is far less than what can be achieved by the former . But still are preferred in chemical and pharmaceutical industries. These prove economical and require less maintenance. Water is used in place of costly oil and no hassle of frequent oil changing. Requires less energy to run and enjoys longer life. Even noise otherwise create no pollution , no fumes and produce every little nosie. Higher vacuum through them can also be achieved when made to work as backing pumps in systems. Suit all applications covered by oil sealed pumps.

TUSHACO Twin Screw pumps employ a unique principle that makes it the only choice for certain applications. No other design of Positive  Displacement Rotary pumps offer so much versatility in the operating parameters with guaranteed total reliability and maintenance-free service. Working Principle   A pair of specially profiled screw, machined integral from solid stock and well supported on antifriction bearings run in precision bored interchangeable casing liners.Each screw set has one RH and one LH screw engaging with a similar but opposite hand screw pair. A pair of hardened and profile ground timing gears synchronize the screws to maintain a small but positive clearance between the flanks thus ensuring no metal to metal contact. The pumps can therefore run dry for sometime without any damage. This unique feature enables to run the pump even dry and handle fluids that do not have enough lubricating value and also very low or high viscous products. Consequently, since there is no metal to metal contact; wear and tear is reduced to the minimum, ensuring extremely long service life. With two pairs of screws running in the same casing, the internal velocities are very small - consequently the NPSHR is practically the lowest even when the pumps run at motor speeds and while handling viscous products. Opposed screw pitches totally eliminate axial thrusts. Relatively small diameters of screws enables the pump to operate at high speeds directly coupled to prime movers - without the need for speed reducers even while handling high sealings always under suction pressure, thus making use of simple, inexpensive seals. The axial flow without turbulence, rotation, churning, chewing guarantees gentle handling of products. Noise and vibration or ---- levels are about the lowest. Positive clearance between running parts makes it easier to construct the pump in different materials safely, especially in stainless steel, without the fear of seizing. Thus a variety of fluids can easily be handled by selecting the right materials of construction. TUSHACO PUMPS have earned a reputation of being the most reliable Positive Displacement Pumps for practically any given application since 1968 due to the widest choice of designs available and excellent knowledge of application engineering. Continuous Research and Development together with modernization with CNC machines and testing facilities has enabled us to accept challenging jobs. Thousands of TUSHACO pumps in operation to the total satisfaction of the users in core industries throughout the country and abroad are a silent testimony. Typical Parameters Temperature: -30 to +350°C Viscosity: 1cSt to 50,000 cSt or more Pressure: Normal 16 bar/ 24bar, with special designs upto 50 bar Specialties: Partial heating/ complete heating/ cooling arrangements Sealing: Stuffing box/ mechanical seal with or without quenching/ heating/ cooling Mounting: Horizontal foot mount/ vertical pedestal Accessories: Relief valves, base frame, coupling, coupling guard, companion flanges, pressure gauges, electric motor/ diesel engines, variable speed drives and as per customer requirements. Typical Applications   Loading / unloading of fuel oil and other products from: Railway wagon rakes, Truck tankers, Barges, Ships and Tankers. Bulk cargo handling. Lubrication, circulation and cooling. Process pumping of high viscous products, bitumen, molasses, soap and similar products. Long distance pipeline pumping of viscous products.

"TUSHACO" - a leading name in the field of Positive Displacement Rotary pumps since 1968 introduced for the first time in India the concept of "Three Screw Pumps" already in 1970's. Foreseeing the growing demand for totally reliable fuel and lube oil pumps for Thermal and Hydel Power Plants, Fertilizer, Chemical and Steel Projects a beginning was made by importing critical components and building pumps locally. Over decades, thousands Three Screw pumps have been manufactured and delivered. Valuable experience gained and modern manufacturing and testing facilities established under joint collaboration from world-renowned German company.  Today TUSHACO is undisputed leader not only in Three Screw pump technology but equally in the other types - namely Twin Screw, Single Screw/ Progressing Cavity - as well as the conventional types like Shuttle Block, Internal Gear, External Gear, Trochoidal and Vane types. This unique position, combined with years of Application Engineering expertise and knowledge of Process Engineering requirements offers direct benefit to customers by the right choice of the pump design selection for almost any given duty parameters. TUSHACO pumps are on the OEM list of practically all major plant and equipment manufacturers, consulting organizations and has met with approvals from third party inspection agencies - national and international. Reliable performance of thousands of TUSHACO Three Screw pumps in India and overseas - over decades is the silent testimonial of the hard and dedicated efforts behind this success. Working Principle TUSHACO Three Screw pumps employ just three screw elements - one power screw and two idler screws running in the three precision bores in the housing or liner. The screws are so profiled that they form a liquid tight seal between the thread. As the screws rotate, pockets/ cavities are formed where liquid gets trapped and conveyed from one end of the infinite stroke. This results in smooth, pulsation free flow with extremely low noise and vibration levels, almost impossible to be achieved by any other design of positive displacement or other types. The power rotor does not drive the idlers as commonly believed. The hydraulic forces acting on screw flanks turn the idlers torquelessly thus reducing the friction. The idlers simply roll over the root diameter of idler dia.reduce the unit pressure, centralize the power rotor and absorb the radial loads. A balance piston integrally machined on power rotor takes care of axial thrusts.   While in operation, the screws are in hydrodynamic balance on film lubrication and do not require any additional bearings. The one ball bearing often used is only for axial positioning of rotor and safer operation of mechanical seals. Small rotor dimensions enable the pump to be operated at high speeds directly coupled 3000 or 3600 RPM motors or other prime movers. Such unique design and features has demonstrated excellent reliability with pumps in operation continuously non-stop for decades together without replacement of any components or maintenance on clean fluids.

FIRST PHOTOGRAPH is for light weight portable sewage pump upto 7.5 HP use for flowing dirty water not for thick liquid like sludge. The float is provided in single phase model to automatic start and stop.SECOND PHOTOGRAPH is for sewage pump up to 30 HPTHIRD PHOTOGRAPH for dewatering pump for water with stonesPump is with PVC winding and water flow surrounding motor body to out let for cooling. Application Specially designed for the drainage of sewage water/ Septic tank,Effluent treatmet, Waste water, Flood water and dirty water. Advantage Portable , Light weight, Handy in operation Can handle solid size 25 mm Low maintenance cost Double mechanical seals arrangement reduces the chances of motor worn out Operation Principle Motor is designed and sealed such a way that it can be submerged inside the liquid. The passage in impeller and volute casing it is large enough to handle the solid.

WORKING PRINCIPLES AND SALIENT FEATURES : • Unique pumping principle - a combination of Rotary and Piston pump- two double acting pistons in their respective cylinders at right angles to each other. • Rotation of rotor causes reciprocating movement of shuttle and piston. • Self priming • Single shaft design with long sleeve-bearing support and external ball bearing. • Single gland construction reduces leakage to minimum. • Choice of Mechanical seal and oil seals available. • Specially designed for transfer applications. • Front pull out design permits inspection of parts without disturbing the pipe connection, couplings or prime mover. • Slow speed operation contributes to high reliability and less maintenance. • Product is pumped without shear, foaming, agitating, heating, emulsifying or chewing. • Pumping elements are of simple geometric form. Parts can be manufactured locally in any part of the world by a small repair shop. • Micrometer Axial shaft position device permits controlled clearance between rotor face and cover. Even after long use wear can be compensated by simple adjustment at site without disturbing pipe line or motors. • Pump can be supplied in partial or full heating arrangement. • Pumps available with built in relief valve. RANGE • Capacity : from 250 lpm to 970 LPM • Pressure : Upto 6 bar • Temperature : Upto 150ºC • Viscosity : from 1 cSt to 30,000 cSt • Models available : 3   TYPICAL APPLICATIONS • Fuel oil transfer, loading and unloading • Edible oil transfer • Tank to tank transfer in process plant. • For all cases involving viscosities higher than 200 cSt   COST COMPARISON • Very economical and costs fraction of the cost of gear, vane or screw pumps • Power consumption is less than conventional pumps   TECHNICAL COMPARISONS • Simplest of all Positive Displacement Pumps • Most compact for any given capacity compared to other Positive Displacement Pumps • Field maintenable. (In-situ repairs permitted !) For further details refer to catalogues as well as liquid list as well as application list.

The pumps operates on 220/240 volts a/c 50 Hz single phase power supply having continues duty & class E insulation the pumps can pump liquid having maximum specific gravity of 1.4 & maximum viscosity of 500 centipoises & liquid temperature between 0 to 100 ° C the pumps wetted parts comprise of glass filled polypropelyne, Viton, Teflon, and Ceramic components.   It is necessary that the total pumped liquid quantity should be two or three times more than the maximum flow of the pump to avoid temperature rise on long duration of operation. All the head/capacity specification is for guidelines only and for more proper & exact specifications trials should be conducted on actual working condition. To avoid any damage or detrimental effect on the pump life it is recommended that the pumped liquid should be clear and free from solid contains & not to run the pump dry.

  Self lubricated and easily maintainable for efficient and care free sustion and pressure needs. These have low oil consumption and are designed for self lubrication fo all the important points. The oil thus used does not contaminate the air, but is baffled from the exhaust, gets collected & returns to the oil chamber and serves for long. These are widely used for vacuum distillation, extraction, filtration, bottle filling, drying, glass blowing, pharmaceutical, food processing, vacuum forming and blister packing applications.

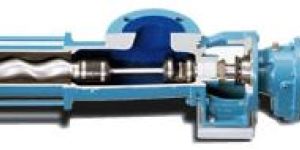

Tushaco progressing cavity pump is a positive displacement rotary pump. The actual pumping elements of the pump are rotor and stator. The single helical rotor rolls eccentrically in a double threaded helix stator of twice the pitch length. A series of sealed cavities 180° apart are created that appear to progress from suction to discharge during one rotation of rotor. The opposing cavities fill and empty simultaneously resulting in a pulsationless flow.The fluid travels axially with relatively low velocity and minimal agitation.The stator is made of a resilient elastomeric material and bonded to the stator tube. The important feature of the pumping principle is the ability to handle slurries and solid particles. The elastomer stator also permits passage of solid particles due to elastomeric deformation. The compression fit of the rotor and stator enables the Tushaco progressing cavity pumps to handle gaseous and low viscosity liquids. The pressure capabilities of the pump are a function of the number of cavities. Tushaco progressing cavity pumps are available in a wide variety of materials - cast iron or stainless steel wetted parts and 10 standard elastomer materials. Tushaco versatile progressing cavity pumps are rugged, compact and highly efficient. Fluids, which are delicate, shear sensitive or abrasive, low or high viscosity, with fibres, with high air content, or large solids, can be conveniently handled by Tushaco progressing cavity pumps. Salient Features  Sturdy drive design provides strength for rigorous continuous operation.  Unique pivot-joint design extends service life and reduces replacement cost.  Close coupled models with built-on speed reducers offer compact pumping unit.  Stators are available in a wide range of elastomers.  Suction lift to 28' w.c. (Water column) Possible drive arrangements include:    Direct drive with motor  Through gear box  V-belt pulleys  Variable speed drives  Special drives such as hydraulic, with I.C. engines

We offer our customers with wide range of Plunger Pumps which are made up of quality material like Monel, Alloy 20, Hastalloy B, Polypropelene, Hastalloy C, Titanium, GFT . All our products are of AISI 304, AISI 316 standards. Its specifications are as under : • It can achieve high flow rates of 10,000 liters/hr & high pressures of 400 Kg/sq. cm. • Steady State metering accuracy of + /- 1 % of pump output, at single setting of stroke from 10% - 100% (Turn down ratio 10:1). • Reproducibility (Repeatability) better than +/- 2.5 % of set point. • Easily handles viscous fluids. • Heating or cooling jackets for liquid head is also available. • They have Low NPSHR requirement. • Positive return of plunger and variable stroke mechanism allows linear relationship between control stroke settings and stroke length. • Simplex and Multiplex arrangements of pumps available for universal use.

  These are single stroke. Air-cooled reciprocating units available in single and double stage configuration and can achieve vacuum upto 29.6" Hg (752 mm Hg). These are quite reliable and maintenance free pumps. Proving a boon for application where in oil mist contamination is not at all acceptable. Applications » Distillation, vacuum forming, paper handling, food processing, filtration, sugar industries, hospitals vacuum impregnation, dairies etc.

Highly Compact in design and so simple at the same time. Most reliable and efficient performer. An indispensible equipment for Scientific Labs, R&D centres, Pilot Plants and host of industrial units where it is used for vacuum loading and lifting. Available in single as well as in double stage. Applications » Vacuum Creation, Filling, drying, Lifting, Forming, Filteration, Distillation, Annealing, Impregnation, Dehydration, Sublimation, Film Coating & many more. Shilpa Trade Links Pvt. Ltd. Oil Sealed Rotary High Vacuum Pumps, Single & Double stage are air cooled, V belt driven and are suitable for use with common electric motors.

Diaphargm type vacuum / pressure pumps are 100 % oil free, wherein not even a single drop of oil is used. These are boon for vacuum and pressure application, where even slightest environmental contamination through oil mist is forbidden. Applications »Chemical analyzersPollution control equipmentsGas monitoringNitrogen generating setsOzone generatorsOperating clinicalMedical and scientific laboratory equipmentsSuction of desoldering wasteFitrationDentistries & spray printing

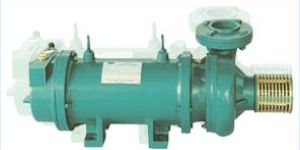

Salient Features : The entire pumpset remains permanently submerged and secure, without a footvalve, so lower water levels do not create problems. The Pumpset works efficiently even if the voltage reduces to 300 volts. For safety an earthing terminal is provided on the motor near the cable entry. Areas of application : The flow of water is always even and so the pumps work admirably in agricultural and domestic applications.

Motors : Squirrel cage induction type totally enclosed 400/440volts AC three phase 50 CYS 2880 RPM Casing : The Monoblock casing is of dense grained cast iron with well designed volutes and has ample strength to whithstand even the undue pressures likely to result during sudden power failures. Impeller : The impeller is made of Graded cast iron and is prefectly balanced with hand finished fluid passages. Applications : Agricultural & Minor Irrigation Village water supply schemes Industrial use Air - Conditioning & Refrigeration. Domestic & Construction purposes. Water Circulation & booster installations.
