Wire Saw Machine Dealers in Udaipur

• Type: Automatic Diamond Cutting Machine
• Certification: CE Certified
• Weight: 1000-2000kg
• Color: Grey, Yellow
• Condition: New
• Automatic Grade: Automatic
• Brand Name: S R Engineering
• Application: Diamond Cutting
• Wiresaw Machine: For Granite Cutting

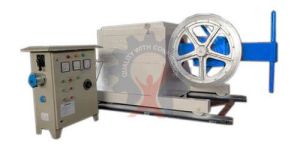

Diamond wiresdaw machine fully heavy dutty Approx 1900 - 2000 Kg Wieght. this machine we will be dispatch from here with fully complete with penal and motor.

20hp dc dressingachine with Crompton motor

• Type: Automatic
• Certification: CE Certified
• Application: Industrial
• Voltage: 380V
• Power: 3-6kw
• Warranty: 1 Year
• Total Cutting length of Slab: 3000 MM
• Width of table: 900 MM.
• Width of Machine: 1300 MM.

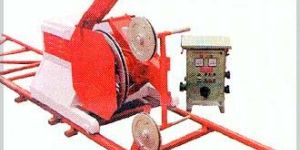

Diamond wire saw machine is used for cutting marble blocks for mines. Wire saw machine cuts the block at faster rate ranging from 5 mt to 17 mt / hour there by saving time in production of blocks and hence profitability of mines increases. The blocks could by cut in various sizes maximum upto 20' x 60', there by wastage is reduced to minimum and profitability of mines increased. The salient feature of Wire saw machines are as under.     Block can be cut at desired angle i.e., Vertical, Horizontal or inclined Blocks size upto 20' x 30' can be cut. Gurder fitted pattley and Jib made of M.S Gurder 10" x 5" -32" length fitted with pulley complete crane without wore rope. 3 Nos. railing of 6" each are provided for movement of machine. (Additional railings can be used if required). Control panel for the operations of wire saw machine is provided. Models available in 20 HP, 30 HP & 40 HP. Power required : Main Motor - 20 HP/ 30 HP/ 40 HP DC Motor - 1 hP water pump - 2HP / 3HP

JB have developed the 60 HP & 40 HP Wire saw Machine to suit the entire Marble & Granite quarry with competitive price. The machine has a stronger weight of 1900 Kg. approx. This provided better stability and accuracy in quarrying. For maximum efficiency, we provide a comprehensive service package which included training commissioning and operative instruction. Description: Machine is equipped with 1 H.P.D.C. motor with variable speed. Machine works through worm and worm wheel. Independent control Panel 800 mm main pullery giving wire saw speed of 24m/sec. Dimension: Height – 1200 m Length 2700, Widely 300 m Weight 1900 Kg. Approx. Features: Air exhaust system is given in gear box so that oil seal can be effect free. The main feature which has given is that its fully covered by flange and grease system is applied when using in horizontally & vertically for cutting so that it can be secure from water. Hard chromium is applied on main shaft so that it can be secure from water.

Owing to our capacity of meeting the exact requirements of the clients, we are supplying quality wire saw machines. Located in Udaipur(India), we are actively involved in bringing forth a high quality array of products in the market.
