Air Classifiers Dealers in Makarpura, Vadodara

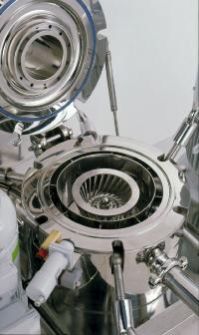

We are offering fab ultrafine classifier. Applications the fab ultrafine classifier produces fine powders by separating a defined grain size from a fed turbulent air flow by creating a “virtual” mesh with a fast rotating classifier wheel. The suction force of the air stream normally produced by a ventilator forces the fine particles though that wheel into a filter where the particles are separated from the air stream. The coarse particles fall down and are washed out again through new incoming air and feed material. the classifiers can be fed from below for fine applications and for coarser classifications the material is fed from the top using the gravity force and covers so a wide range of possible cut-points. the internal geometry of the machines a final product with hardly no coarse particle contamination as well as a continuous process. features and benefits: · operating particle size range of 1 to 150 microns · very high efficiency · minimum undersize returned in product oversize · lowest specific energy · low pressure drop · compact design. · effective particle distribution · easy access and cleanability.

• Type: Air Classifier System,

We are offering fab air classifier. Applications: fab udhyog recommend a efficiency classifier design which enables efficient cuts at sizes, maximizes productive performance and minimises system specific energies. for an optimum system, it is essential that the maximum amount of product is recovered from the grinding mill discharge at the required size, and that fine particle that adhere to the coarse particle returns are effectively washed clear from this stream. features and benefits: •operating particle size range of 5 to 300 microns •precise on-stream control of cut-point by variation of rotor speed •low system resistance •low power consumption •adjustable secondary air system for optimization of classification efficiency •hardly no coarse contamination in fines •operates under negative pressure promoting dust-free environment •robust construction and build quality for long service life •minimum maintenance through robust design.

• Country of Origin: India
• Weight: 100-1000kg
• Condition: New
• Power: 1-3kw
• Driven Type: Electric
• Warranty: 1yrs
