APFC Panel Dealers in Vadodara

We hold industry expertise in fabricating high performing APFC Control Panels, which are widely demanded in the market. These are manufactured using A-grade material in adherence with the prevailing quality standards at our advanced production facility. Further, we offer the beneficial choice of product customization to the clients to meet their individual needs and demands

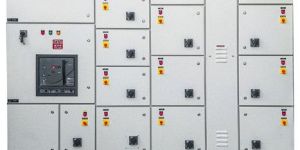

APFC (Automatic Power Factor Correction) Panels are used to maintain Unity P.F. The industrial power load is inductive in nature that results in lagging power factor so there is loss of energy consumption which results in high power bills and heavy penalties from electricity boards. APFC panels are essential in such case.We design and manufacture both SCR type as well as Contactor type APFC panels as per customer kVAR load capacity.   Features & Benefits:   P.F. correction within a one cycle of operating frequency or time delay of 30 sec to 5 min after command signal from APFC controller. High grade APFC Controller Load Manager to manage energy Volt and Amp meter 0-3000kVAR range of offering Helps in reducing maximum demand and RKVAH consumption hence substantial reduction in monthly electricity tariff High density capacitors Cost Effective and High Performance Improves efficiency of the system by reducing losses.

We are a prime Manufacturer and Supplier of incomparable quality Automatic Power Factor Control Panels. These Automatic Power Factor Control Panels are responsible for providing desired power under fluctuating load conditions. IN low voltages installations, these Automatic Power Factor Control Panels can be used to centralize the compensation of power factor. We offer these Automatic Power Factor Control Panels at affordable prices to the clients.

• Application: Motor-driven machinery Treatment plant Process plant Pumping Station
• Construction Type: Compartmentalize Non- Compartmentalize/Cubical
• Range: Power range: 50 - 1000 KVAR
• Rated operated voltage: 440V
• Degree of Protection: Up to IP54
• Ambient temp: Design Ambient temp. standard 40°C Operated 45°C & 50°C
• Feature: Save money on their utility bills.
• Inspection and Testing: Routine Test Control/Interlock Test Continuity Test Mechanical endurance Test
• Fabrication: CRCA sheet steel Structure, door, cover: 1.6 mm thick Gland plate: 3mm thick

Automatic Power Factor Control or APFC Panels are mainly used for the improvement of Power Factor. Power Factor is the ratio of active power to apparent power and it is a major component in measuring electrical consumption. APFC is an automatic power factor control panel which is used to improve the power factor, whenever required, by switching ON and OFF the required capacitor bank units automatically. This is very strong and durable. It is very easy to operate. It is dust proof and has high tensile strength. It required low maintenance. This is also known as automatic power factor correction panels. This product is made of best quality of raw material. It is very eco-friendly. It is connected with electricity boards. This is widely used for installation purpose. It has micro controller switch.   Busbar Arrangement The Busbar shall be housed in a separate compartment. The Busbar shall be isolated with 3 mm thick FRC or acrylic sheet to avoid any accidental contact. The Busbar shall be arranged such that minimum clearances between the Busbar are maintained as per below. Between phases : 27 mm min. Between phases and neutral : 25 mm min. Between phases and earth : 25 mm min. Between neutral and earth : 23 mm min.   Component Selection Detuned harmonic filters are the series combination of a reactor and power capacitor. This filter offers higher impedance for high frequency harmonics. This prevents harmonic resonance and amplification. Each capacitor bank is equipped with discharge devices capable of reducing the residual voltage to below 10% of the rated capacitor voltage in about 30 seconds. Delay timer used to protect Circuit from reverse flow while capacitor is discharging

Connection and disconnection of the capacitor to and from the network occurs at zero current crossing. This smooth connection avoids the transient effect like waveform distortions, generation of switching spikes etc., typically created by electro-mechanically switched Power Factor Correction ( PFC ) systems, The total correction time ( Full compensation of reactive current ) is only 3 to 4 cycles which is much faster than electro-mechanically switched PFC systems.

• Brand Name: LNT,SCHNEIDER,SIEMENS
• Application: INDUSTRY
• Phase: 3 - Phase
• Power: 3 PHASE
• Mounting: STAND
• Coating: POWDER COATING

APFC Panel We also manufacture the Automatic Power Factor Control Panel which will use for the improvement in the power factor. In this panel we use the capacitors to increase the power factor of the system.

These panels are used in commercial buildings and industries where there is fluctuation in voltage and power supply. The electrical load required by a unit depends upon the type of machineries, plants and other devices installed. There is always a possibility of damage of this equipment if power fluctuates. In case of fixed loads they can be safeguarded using capacitors, but in case of varied loads, a mechanism to switch in and switch out the capacitors is required which is basically handled using APFC panels.

• Features: Smooth operations, Less maintenance, Excellent performance
• Uses: Used to maintain the power factor near unity by adding capacitance across the load

From our wide range of products, we offer optimum quality Automatic PF Control Panel. The offered panels are manufactured using optimum quality raw material and high-end technology. We offer these panels in different sizes and other related technical specifications, in order to meet needs of our prestigious clients. Apart from this, our offered range is rigorously tested by our experts on well-defined parameters to deliver a flawless range at our client's end.we are leading bulk supplier of Automatic Power Factor Control Panel in Vadodara, Gujarat, India.

APFC PANEL We are highly specialized in manufacturing of the APFC Panels. Our APFC Panels are manufactured from high quality raw materials. The Power Factor is controlled with a smart type APFC relay which control and monitor system reactive power. APFC panels are available with MPP / APP type of Capacitors, with or without reactor as per system requirements. We also do exhaustive study to give exact solution for best system. Contactor/Thyristorised Panel Detuned fillers can be provided optionally Made from rust proof steel material Advanced microcontroller technology Auto/Manual selector is available

APFC PanelAPFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. Power Factor can be explained as ratio of active power to apparent power and it is a key factor in measuring electrical consumption. Everyone knows that how costly electricity has become in present timeAPFC Panel Manufacturer and Supplier in Vadodara,Surat,Rajkot,Ahmadabad,Gujarat,India

PARTICULARS DETAILS Rated Voltage 3.3 KV 6.6 KV 11 KV Rated Capacitor Bank Output Up to 3000 KVAR
