ARIHANT INDUSTRIES Makarpura, Vadodara, Gujarat

Vibrating screens are useful in efficient grading of coarse from the crushed materials. Vibrating screens are useful in efficient screening of gravels, crushed stones, sand, chemicals, minerals, slag, coal and any other bulk materials.

Dimensions and weights Model Rotor Diameter X Heightmm Amm Bmm Cmm Dmm Emm WeightKg A/V 0611 600 X 110 2540 1450 1200 230 735 8050 A/V 0922 930 X 220 3950 2400 2335 318 990 9700 A/V 1022 1000 X 220 3950 2550 2200 320 1230 11900 A/V 1222 1200 X 220 5080 2860 2675 457 1468 14100   Technical Specification Model Rotor Diameter X Heightmm Amm Bmm Cmm WeightKg A/V 0611 600 X 110 25 15 ~ 50 75 ~ 100 8050 A/V 0922 930 X 220 56 30 ~ 90  120 ~ 150 9700 A/V 1022 1000 X 220 65 50 ~ 130 200 ~ 250 11900 A/V 1222 1200 X 220 80 100 ~ 400 380 ~ 425 14100

Brand Name : Arihant

Material : Mild Steel

Frequency : 50 Hz

Jaw Crushers Incorporates major advantages - best quality material, high production at less power & maintenance cost than other type of Jaw Crusher. Jaw Crusher is the outcome of vast practical and design experience in the running & manufacturing of stone crushing and screening plants in India and abroad. Mahavir Crusher is designed to crush hard material at higher speed with minimum Power and Maintenance. Wide Entry throats ensure easy feeding to crushing chamber. The crusher is designed on the advance principle of Crushing without rubbing with high impact pressure combined with careful selection of materials and workmanship of finest quality.

Country of Origin : India

Type : Jaw Crusher

Brand Name : arihant

Material : Mild Steel

Number Of Wheels : 2 Wheels

Warranty : 1 Year

Phase : Three Phase

Motor Power : 30HP

Driven Type : Electric

Voltage : 440V

Usage : Stone Crusher

Type : Jaw Crusher

Color : Grey, Light Green, Light White, Sky Blue

Voltage : 110V, 220V, 440V

Condition : New

Driven Type : Electric, Hydraulic

Crushing by impact, as distinguished from crushing by pressure, has its own advantages. Pressure is applied instantaneously during crushing and therefore, breaking by impact almost eliminates the possibility of the development of hidden cracks in the products. This aspect is to noted particularly for road metal.

Driven Type : Electric

Condition : New

Automation Grade : Automatic

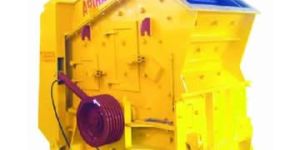

Type : Horizontal Shaft Impact Crusher

Warranty : 1yrs

Crushing by impact, as distinguished from crushing by pressure, has its own advantages. Pressure is applied instantaneously during crushing and therefore, breaking by impact almost eliminates the possibility of the development of hidden cracks in the products. This aspect is to noted particularly for road metal. There are generally two types of machines in this category, one Known as an Impact Breaker and the other one as a Hammer Mill. In impact Breaker, the breaker plates are rigidly fixed on the Rotor and swinging type in hammer mill. The impact breaker is a rugged and rigid machine, also provided With a safety device to prevent damage to the rotor etc. In case of Accidental or overload. The impact breaker can crush even hard materials like basalt and granite. Which such rockers the wear on the beaters will be comparatively faster; but as the blades are adjustable, the frequency of replacement is not that high. In addition to its high throughput capacity, the impact breaker Is the machine, which produces the most cubical product. This Is important for road metal, and also for limestone roasting plant because in this case, the product should be uniform and with less fines. An impact Breaker is comparatively a light and simple machine, can be built and supplied in a relatively short time and is therefore preferred for urgent projects requiring high throughput in a short time, as for example, may happen in the case of dam projects. Impact breakers are manufactured in 2 series - 1700 EH for hard material and 1700 EH for comparatively soft material.

Driven Type : Electric

Color : White

Automation Grade : Fully Automatic

Type : Grizzly Feeder

Application : Industrial

Color : Brown, Grey, Light White, Shiny Silver, Silver

Voltage : 110V, 220V, 380V, 440V

Condition : New, Used

Capacity : 100kg/hr, 200kg/hr

Automatic Grade : Automatic, Fully Automatic, Semi Automatic

Driven Type : Electric

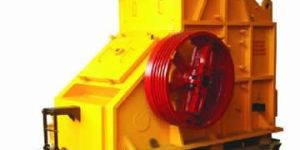

Double Toggle Mechanism separated from crushing zone. Motorized Oil Lubrication. Mn. Steel Jaws and side liners fitted in crushingzone. Light weight of Pit-man, Toggles and other components results easy replacement as less cost. Heavy steel plates Body. Safety Device with the fly-wheel mounted on ecc shaft to protect bearings and ecc shaft(Crank) from overload. Swing Jaw geometry of crusher is modify after vast practical experience of stone crushing and screening plants, results with modern principal of “Crushing Without Rubbing” at high R.P.M. high output. Our crusher have a double toggle action give the maximum mechanical advantage to the eccentric shaft. Crushing on the downward stroke enables a much lighter pit-man and toggle to be employed.

Type : Crushing Plant

Color : Grey, Orange, White, Yellow

Condition : New, Used

Warranty : 1year, 2years

  Technical Specification CrusherModel Cavity Mantle Large end Diameter Locking Modeof Blowand ajustment ring Setting of Descharge opening Feed Opening Maximum Feed Size Adjustable rangeof dischargeopening Capacity Electrical Power mm Feet mm Inch mm Inch mm Inch tph kw hp S75 Coarse 914 3 Screw thread Hydraulic 178 7 155 6 25-38 1-11/2 118-160 75 100 H130 Medium 1219 4  Screw thread Hydraulic 115 41/2 100 3  15-30 3/5-1 70-160 130 174 H115 Coarse 1295 4 Screw thread Hydraulic 241 91/2 200 8 19-51 3/4-2 159-350 155 208

Material : Mild Steel

Frequency : 50 Hz

Brand Name : Arihant
