Coil Heat Exchanger Dealers in Vadodara

(7 products available)

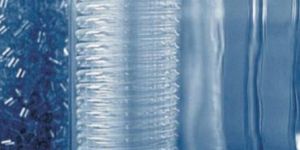

  • Coil Type Glass Heat Exchanger

    Coil Type Glass Heat Exchanger

    Get Price Quote

    Coil type heat exchanger is mainly used as condenser or cooler. It can, however, be used for heat transfer between liquids & gases in general. It has the coil battery welded to the jacket making a one piece unit. The maximum allowable pressure in the coils is 2.7 bar gauge. PRECAUTIONS TO USE CONDENSER ARE AS FOLLOWS: When connection coil-type condensers to the coolant supply, adequate flexible hose should be used to ensure that stresses are not transmitted to the glass. sers to the coolant supply, adequate flexible hose should be used to ensure that stresses are not transmitted to the glass. Condenser should never be operated with steam in the coils. They should always be used with an adequate flow of coolant through the coils and care should be taken to ensure that the coolant does not become heated to boiling point. Coolant control valves should always be turned on and off slowly, particularly when air is present in the line. Coolant should be allowed to drain freely to a point as close as practicable to the heat exchanger. Care should be taken in arranging the coolant supply in order to avoid water hammer A uniform, continuous supply of coolants should be ensured. If a condenser is out of service for any length of time, it is advisable to drain the coils, especially in winter when suitable precautions should be taken to prevent freezing of any water remaining after draining. Brine or other coolants in closed circuit can be used as coolant provided the suitable precautions against water hammer are taken. Condensers can be mounted in series to provide larger surface area. Condensers should be mounted vertically only. The maximum pressure in the coil is 2.7 bar. The maximum differential pressure across the coils 2.7 bar.

    more..

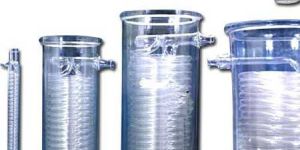

  • Coil Type Heat Exchanger

    Coil Type Heat Exchanger

    Get Price Quote

    25 Piece(s) (MOQ)

    • Material: Borosilicate Glass
    • Usage: Heat Tranfer
    • Size: 18/80
    • Brand Name: Ablaze

    We are offering coil type heat exchanger. coil type heat exchanger is mainly used as condenser or cooler. It can, however, be used for heat transfer between liquids & gases in general. It has the coil battery welded to the jacket making a one piece unit. The maximum allowable pressure in the coils is 2.7 bar gauge.

    more..
  • Best Deals from Coil Heat Exchanger

  • Coil Type Heat Exchanger

    Coil Type Heat Exchanger

    Get Price Quote

    We offer Coil Type Heat Exchanger which is widely used for efficient heating of the oil with continuous filtration system in various industries. It is manufactured using premium quality raw material and is equipped with latest technology. FeaturesSwift, even external heating of cooking oilResistance to heat and rustRobustly constructedCompact vertical design saves floor spaceRemovable stainless steel coil ApplicationsHeating SystemsChilled Water SystemsGround Water SystemsResidential UseDistrict Heating Systems Specifications Cat Ref. DN d/DN1 L L1 L2 Type Actual H.T.A Free Cross Area Cm2 Max Coolant Rate Kg/hr. Jacket Cap Liter HE1.5/2 401660010085A 0.24.5 7501 HE2/3.5 501660010090A 0.30 51300 1.25 HE3/3.5 801660010090A 0.35513002 HE4/5 10019600100120A 0.530 24004 HE4/6 100197501.00 120A 0.630 24006 HE6/10 15025600100150B 0.75226009 HE6/15 15025850100150B 1.25 52260011 HE9/25 22525800100180B 2.00 125330018 HE12/25 30025600125250B 1.6175 570025 HE12/40 30025900125250B 3.1175570035 HE16/40 40025600125265B 3450620060 HE16/50 40025700125265B 3.80 450620070 HE18/60 45040750150325C 4.20 8204800100 HE18/80 45040900150325C 5.58206200110

    more..
  • Coil Type Heat Exchanger

    Coil Type Heat Exchanger

    Get Price Quote

    We offer the clients with high performing coil type heat exchanger that is manufactured from high –grade quality components. Our range of coil type heat exchangers is designed to meet the requirement of various industries. Avail coil type heat exchanger, which is available as condensers, boilers and immersion heat exchangers. known for durability extreme mechanical strengthgood conductivityhigh performance

    more..
  • coil heat exchangers

    coil heat exchangers

    Get Price Quote

    coil heat exchangers, Industrial Machinery, Heat Exchangers

    more..
  • Glass Coil Type Heat Exchanger

    Get Price Quote

    Glass Coil Type Heat Exchanger, Sight Glass Sight Flow Indicator

    more..
  • Heat Exchanger Coil

    Get Price Quote

    Heat Exchanger Coil, Column Components, Cylindrical Vessels

    more..
