Colour Mark Sensor Dealers in Vadodara

• Country of Origin: India
• Type: Print Mark Sensor
• Material: Metal
• Application: Print Marking
• Weight: 0-300gm

We are offering Outstanding color contrast sensitivity • 25 microsecond sensing response (20,000 operations per second) • Reliably detects the toughest color mark contrasts, including 20% yellow against white • Totally solid-state: no bulbs to replace and no need to switch between different colored light sources • Rugged aluminium-zinc alloy die-cast housing with high-quality glass lens suitable for food processing applications; rated • Fixed-convergent sensing at 10 ±3 mm (0.39 ±0.12 inch); rectangular sensing image measures 1.2 mm x 3.8 mm (0.05" x 0.15") at 10 mm from the lens • 10 to 30V dc operation; all models offer both NPN and PNP digital outputs • Choose models with either horizontal or vertical sensing image • 3 meter (6.5') connector cable Spec. : supply 10-30 VDC Out Put : NPN & PNP both Setting by teach switch, Press “B” fore background & “M” for mark

• Weight: 200 g
• Usage/Application: Industrial

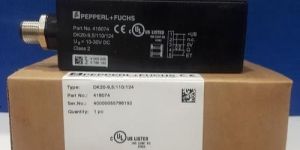

• Brand: Pepperl Fuchs
• Model Name/Number: DK20/49
• Sensor Range: 9.5 mm +- 3 mm
• Light Source: LED
• Angle Deviation: max. +- 3 Degree
• Operating Voltage: 10 to 30 V DC
• Switching Current: Max 200 mA
• Switching Frequency: 16.5 kHz
• IP Rating: IP67
