COMP AIR TREATMENT SYSTEM P LTD Subhanpura, Vadodara, Gujarat

We can build "u" tube bundles, straight tube "floating" tube bundles, or we can retube fixed tubesheet heat exchangers when the bundles is not removable and multitherm is not locked into any one material. Some bundles tend to be build with copper tubes and steel tubesheets.

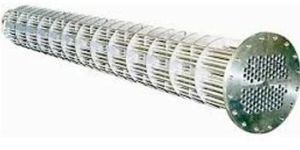

we can build "U" tube bundles, straight tube "floating" tube bundles, or we can retube fixed tubesheet heat exchangers when the bundles is not removable and multitherm is not locked into any one material. Some bundles tend to be build with copper tubes and steel tubesheets. Heat-exchanger system consisting of a bundle of U tubes surrounded by a shell (outer vessel), one fluid flows through the tubes, and the other fluid flows through the shell, around tubes.Multitherm can duplicate any existing bundle to include dimensions, materials and performance. Two and four pass designs are common because the fluid can enter and exit on the same side. This makes construction much simpler.There are often baffles directing flow through the shell side so the fluid does not take a short cut through the shell side leaving ineffective low flow volumes. These are generally attached to the tube bundle rather than the shell in order that the bundle is still removable for maintenance. Counter current heat exchangers are most efficient and they allow the highest log mean temperature difference between the hot and cold streams.

we can build "U" tube bundles, straight tube "floating" tube bundles, or we can retube fixed tubesheet heat exchangers when the bundles is not removable and multitherm is not locked into any one material. Some bundles tend to be build with copper tubes and steel tubesheets. Heat-exchanger system consisting of a bundle of U tubes surrounded by a shell (outer vessel), one fluid flows through the tubes, and the other fluid flows through the shell, around tubes.Multitherm can duplicate any existing bundle to include dimensions, materials and performance. Two and four pass designs are common because the fluid can enter and exit on the same side. This makes construction much simpler.There are often baffles directing flow through the shell side so the fluid does not take a short cut through the shell side leaving ineffective low flow volumes. These are generally attached to the tube bundle rather than the shell in order that the bundle is still removable for maintenance. Counter current heat exchangers are most efficient and they allow the highest log mean temperature difference between the hot and cold streams.

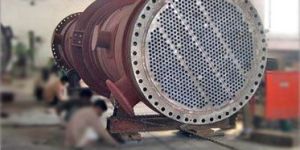

Tube Heat Exchanger is most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. Shell Tubes Heat Exchanger are classified into fixed and Floating type Heat Exchangers. Shell and tube heat exchangers consist of a series of tubes.

Supported by the excellent manpower in the industry of air ventilation equipment manufacturing, we proudly offer a range of highly functional Shell and Tube Chillers & Condensers. Technology of frequency conversion is used in these products to enhance their functionality and lower the noise generated during operations.

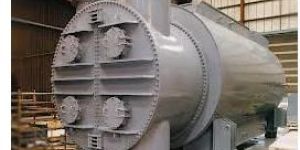

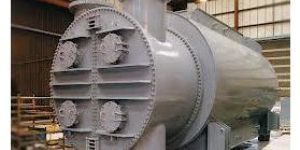

Steam Condensers found in power plants and are provided after the turbine to condense the steam and recycle the same as boiler feed water to Boilers. Small Size Steam Condensers complete with water boxes are manufactured by us. We carry out both Thermal & Mechanical design and then manufacture the complete Steam Condensers with water boxes as per the applicable codes. Generally the Tubes used in Steam Condensers are of Admiralty BrassCupro-Nickel (9010)SS 304 quality depending upon the type of cooling water available, while rest of the material is of Carbon Steel. Re-tubing of the Steam Condensers at site is also undertaken. We have ample manpower, tools and tackles & skills to undertake the same. We can complete the same also within the stipulated amount of time by working day and night.

Steam Condensers found in power plants and are provided after the turbine to condense the steam and recycle the same as boiler feed water to Boilers. Small Size Steam Condensers complete with water boxes are manufactured by us. We carry out both Thermal & Mechanical design and then manufacture the complete Steam Condensers with water boxes as per the applicable codes. Generally the Tubes used in Steam Condensers are of Admiralty BrassCupro-Nickel (9010)SS 304 quality depending upon the type of cooling water available, while rest of the material is of Carbon Steel. Re-tubing of the Steam Condensers at site is also undertaken. We have ample manpower, tools and tackles & skills to undertake the same. We can complete the same also within the stipulated amount of time by working day and night.

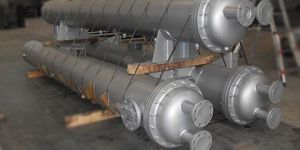

Shell and Tube Heat Exchanger is most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. Shell Tubes Heat Exchanger are classified into fixed and Floating type Heat Exchangers. Shell and tube heat exchangers consist of a series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. In this type, the tube sheets are completely welded to the shell and acted as shell flanges. Fixed type Heat Exchangers are used there are absolutely no chances for inter mixing of two fluids. The Floating type Heat Exchangers has the advantages of removability of tube bundle and access for cleaning both inner and outer side of tubes and shell.Shell Tube Heat Exchanger is widely used in variety of application as a cooling solution. Common amoung them is for cooling of Hydraulic Fluid and oil in engines, transmissions and hydraulic power packs. With right coimbination of materials they can also be used to cool or heat other mediums, such swimming pool water or charge air. One of the big advantages of using a shell and tube heat exchanger is that they are often easy to service, particularly with models where a floating tube bundle (where the tube plates are not welded to the outer shell) is available. Can also be used on fixed tube sheet heat exchangers.

Shell and tube chillers and condensers are provided with features of frequency conversion technology, low noise and more stable operation, low mix level alert by light, protection of over current and low voltage.

Shell and Tube Heat Exchanger is most common type of heat exchanger in oil refineries and other large chemical processes, and is suited for higher-pressure applications. Shell Tubes Heat Exchanger are classified into fixed and Floating type Heat Exchangers. Shell and tube heat exchangers consist of a series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. In this type, the tube sheets are completely welded to the shell and acted as shell flanges. Fixed type Heat Exchangers are used there are absolutely no chances for inter mixing of two fluids. The Floating type Heat Exchangers has the advantages of removability of tube bundle and access for cleaning both inner and outer side of tubes and shell. Shell Tube Heat Exchanger is widely used in variety of application as a cooling solution. Common amoung them is for cooling of Hydraulic Fluid and oil in engines, transmissions and hydraulic power packs. With right coimbination of materials they can also be used to cool or heat other mediums, such swimming pool water or charge air. One of the big advantages of using a shell and tube heat exchanger is that they are often easy to service, particularly with models where a floating tube bundle (where the tube plates are not welded to the outer shell) is available. Can also be used on fixed tube sheet heat exchangers.

Our product range includes air receivers, surge tanks, accumulators, blowdown tanks, flash tanks, expansion tanks, filter vessel, distillation columns, hot water generators, hydropneumatic tanks, nitrogen storage tanks, LP heater assembly, propane tanks, propane dispenser tanks, pressure vessels, refrigeration vessels, horizontal ammonia receivers, vertical ammonia receivers, oil pots, scrubbers, separators and more.

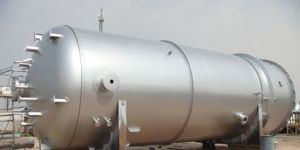

We manufacture various types of pressure vessels custom made for a wide range of applications. Our product range includes air receivers, surge tanks, accumulators, blowdown tanks, flash tanks, expansion tanks, filter vessel, distillation columns, hot water generators, hydropneumatic tanks, nitrogen storage tanks, LP heater assembly, propane tanks, propane dispenser tanks, pressure vessels, refrigeration vessels, horizontal ammonia receivers, vertical ammonia receivers, oil pots, scrubbers, separators and more. With adherence and conformance to national and international codes of design and fabrication, our equipments are supplied for shore as well as off shore. We have been accredited with ASME, "U", "U2" and "R" stamp along with NB registration for manufacturing of pressure vessels. We are also an IBR approved workshop for manufacturing of boiler ancillary equipments, and by CCOE Nagpur for vessels manufactured for explosive media. Steel is purchased direct from renowned manufacturers all over India to get the best competitive rates. For small quantities and quicker deliveries we also purchase steel from our reliable and well established traders and stockiest, who can deliver plates of approved and recognised steel manufacturers, in wide range of thickness with a minimum lead time of 1 or 2 days.

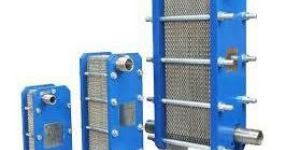

Plate Heat Exchanger comprises of corrugated thin Titanium or SS plates which are sealed by integrally fitted gaskets. These gaskets act as reliable seals between the plates nd create alternative flow channels where hot fluid circulates on one side and cold fluid on the other hence maximizing the heat transfer surface. The plates are held together in compression by long threaded studs on the outside of the tube bundle that pass through the end covers to which they are fixed by using spring washers and nuts. There are also plate carriers fitted to the top of the bundles that align the plates at assembly of the tube bundles. Plate heat exchangers transfer heat more efficiently due to the intricate plate design. They are very efficient, light and compact and can be easily dismantled for maintenance. We can offer a wide range of standard heat exchanges of varied heat transfer area to meet the individual needs. The customer will have to provide us details such as fluid mediums to be heated and cooled, temperature and pressure range etc. This will help us to determine the size, number, material, chevron angle of plates and material of gaskets and other important characterstics which will further help us to provide the most suitable heat exchanger for the given application.

Plate Heat Exchanger comprises of corrugated thin Titanium or SS plates which are sealed by integrally fitted gaskets. These gaskets act as reliable seals between the plates nd create alternative flow channels where hot fluid circulates on one side and cold fluid on the other hence maximizing the heat transfer surface.

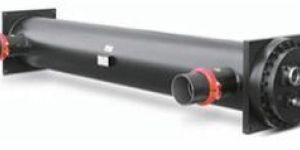

Oil Coolers are generally used for cooling of oil, which gets heated up in gear boxes, ID fans, extrusion press, couplings, rotating shafts etc. We carry out thermal, mechanical design and then manufacture the entire ranges of Oil Coolers suitable for Gear Boxes manufactured by M/S Elecon, Greaves, Shanthi Gears, Walchandnagar etc for their different capacities Gear Boxes. These Coolers are manufactured as per the codes specified by the customer like TEMA RCB and ASME Codes. Generally the Oil Coolers are manufactured out of the Carbon Steel and Copper/Admiralty/Stainless Steel/Cupro-Nickel (90:10)/Cupro-Nickel(70:30) Tubes depending upon the type of cooling water available. We also have data regarding the various Oil Coolers supplied with various Gear Boxes from gear Box manufacturers. In that case we confirm our design and parameters vis a vis the existing ones and manufacture the same. We carry out the manufacture of Oil Coolers exactly as per the Client's existing Coolers. For the same we depute our technical representative to Client's Site, examine the Cooler and manufacture the new Oil Cooler exactly as per the existing ones. This basically ensures that the new Oil Cooler is exactly inter-changeable with the old ones. If you are not satisfied with the amount of Oil Cooling provided by your Oil Cooler request you to kindly send us the following data to enable us to get back to you with a proper solution.

The water-antifreeze mixture runs through the heat exchanger dumping heat, but remaining separate from corrosive salts and chemicals found in the water the boat is floating in. If the ocean water eventually corrodes and ruins the heat exchanger it can be replaced at a fraction of the cost of replacing the engine. To protect the marine heat exchanger from corrosive salts, a sacrificial zinc anode is screwed into the heat exchanger. This anode must be periodically replaced as part of regular maintenance. Because the water the boat floats in may be contaminated with floating particles such as wood or styrofoam balls the well designed boat will have a filter to remove these particles before they are moved toward the heat exchanger. Because the cooling water (which is chemically treated fresh water) is at a temperature of 70-80 degrees C, it would not be possible to flash off any water vapour unless the pressure in the heat exhanger vessel was dropped. To alleviate this problem, a brine-air ejector venturi is used to create a vacuum inside the vessel. Partial evaporation is achieved and the vapour passes through a demister before reaching the condenser section. Sea water is pumped through the condenser section to cool the vapour sufficiently to precipitate it. The distillate gathers in a tray, from where it is pumped to the storage tanks. Marine heat exchanger is the most common way to cool a boat's engine, using the lake, river / ocean water in which the boat floats. Since this water may be corrosive the engine may be cooled by a sealed mixture of distilled water and antifreeze. Heat from the water-antifreeze mixture is then transferred to the ocean (or lake or river) water which flows into a heat exchanger. A water-jacketed exhaust manifold is necessary on marine engines to reduce the temperature of the engine-room air space and the exhaust pipe. If the exhaust manifold is in the sea-water circuit it should be installed with the sea-water inlet at the back and the outlet at the front on the top to ensure that it operates completely full of sea-water.

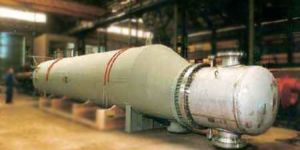

In this kettle reboiler type / kettle type heatexchangers, steam flows through the tube bundle and exits as condensate. The liquid from the bottom of the tower, commonly called the bottoms, flows through the shell side. There is a retaining wall or overflow weir separating the tube bundle from the reboiler section where the residual reboiled liquid (called the bottoms product) is withdrawn, so that tube bundle is kept covered with liquid.Kettle reboilers are reliable in that they can handle high vaporization of up to 80 percent and are easy to maintain. Kettle reboilers are very simple and reliable. They may require pumping of the column bottoms liquid into the kettle, there may be sufficient liquid head to deliver the liquid into the reboiler. In a typical classical distillation column, all the vapor driving the separation comes from the reboiler. The reboiler receives a liquid stream from the column bottom and may partially or completely vaporize that stream. Steam usually provides heat required for the vaporization. Reboilers are heat exchangers typically used to provide heat to the bottom of industrial distillation columns. They boil the liquid from the bottom of a distillation column to generate vapors which are returned to the column to drive the distillation separation. Proper reboiler operation is effective distillation.

We carry out thermal, mechanical design and then manufacture the entire ranges of Inter-Coolers & After-Coolers suitable for Compressors manufactured by MS Ingersoll Rand, Kirlokskar, Khosla, Chicago Puematic, Atlas Copco etc for their different capacities Compressors.

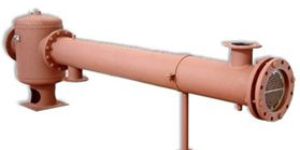

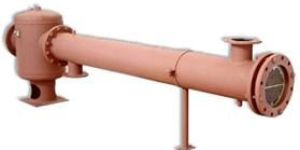

Inter-Coolers & After-Cooler are used for cooling of airgas which gets heated up during the different stages of compression of airgas. We carry out thermal, mechanical design and then manufacture the entire ranges of Inter-Coolers & After-Coolers suitable for Compressors manufactured by MS Ingersoll Rand, Kirlokskar, Khosla, Chicago Puematic, Atlas Copco etc for their different capacities Compressors. These Coolers are manufactured as per the codes specified by the customer like TEMA RCB and ASME Codes. Generally the Inter Coolers & After Cooles are manufactured out of the Carbon Steel and CopperStainless SteelAdmiraltyCupro-Nickel (9010)Cupro-Nickel(7030) Tubes depending upon the type of cooling water available. We also have data regarding the various Inter-Coolers & After-Coolers supplied with the compressors from major compressor manufacturers. In that case we confirm our design and parameters vis a vis the existing ones and manufacture the same. We carry out the manufacture Inter-Coolers & After Coolers exactly as per the Client's existing Coolers. For the same we depute our technical representative to Client's Site, examine the Cooler and manufacture the new Turbine Oil Cooler exactly as per the existing ones.

We offer Evaporator that evaporates the heavy concentrate solutes to vapor phase by using thermal power. Fabricated using quality material, the evaporator is durable and efficient and comes in various ranges to treat the heavy concentrate solute. Used in industries including mining, petrochemicals and chemicals, the range is custom designed as required by the client. They are so many types are available to treat the heavy concentrate solute. We are the manufacturer of kettle evaporator. In Kettle evaporators the liquid product usually enters the evaporator at the head of the evaporator. The product is evenly distributed into the heating tubes. A thin film enters the heating tube and it flows downwards at boiling temperature and is partially evaporated. In most cases steam is used for heating the evaporator. The product and the vapor both flow downwards in a parallel flow. This gravity-induced downward movement is increasingly augmented by the co-current vapor flow. The separation of the concentrated product from its vapor is undergoing in the lower part of the heat exchanger and the separator

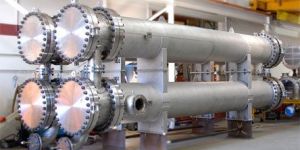

Double Pipe Heat Exchanger are operating in true counterflow, they can operate with a temperature cross, that is, where the cold side outlet temperature is higher than the hot side outlet temperature. The term 'hairpin heat exchanger' is also used for a heat exchanger of the configuration in the diagram. A hairpin heat exchanger may have only one inside pipe, it may have multiple inside tubes, but it will always have the doubling back feature shown. Some heat exchanger manufacturers advertise the availability of finned tubes in a hairpin / double pipe heat exchanger. These would always be longitudinal fins, rather than the more common radial fins used in a crossflow finned tube heat exchanger.

We bring forth a wide range of Cooling Coil in various specifications. Entire process of development is checked on the basis of different quality parameters to ensure optimum efficiency. Our collection suits the diversified requirements of our clients. These products are known for their efficient performance, compact design and cost-effectiveness. These are delivered to our clients within stipulated time frame. Our collection encompasses:

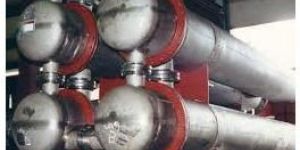

Supported by the excellent manpower in the industry of air ventilation equipment manufacturing, we proudly offer a range of highly functional Shell and Tube Chillers & Condensers. Technology of frequency conversion is used in these products to enhance their functionality and lower the noise generated during operations. Protected to overflow of current these chillers are manufactured using copper tubes of superior quality. Available with a capacity range of 5 TR to 200 TR, are offered after conducting stringent quality tests ensuring zero leakage guarantee. Shell and Tube Chillers and Condensers are provided with features of frequency conversion technology, low noise and more stable operation, low mix level alert by light, protection of over current and low voltage

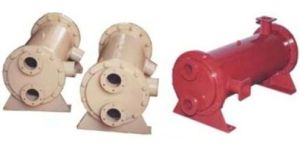

Oil Coolers are generally used for cooling of oil, which gets heated up in gear boxes, ID fans, extrusion press, couplings, rotating shafts etc. We carry out thermal, mechanical design and then manufacture the entire ranges of Oil Coolers suitable for Gear Boxes manufactured by MS Elecon, Greaves, Shanthi Gears, Walchandnagar etc for their different capacities Gear Boxes. These Coolers are manufactured as per the codes specified by the customer like TEMA RCB and ASME Codes. Generally the Oil Coolers are manufactured out of the Carbon Steel and CopperAdmiraltyStainless SteelCupro-Nickel (90:10)Cupro-Nickel(70:30) Tubes depending upon the type of cooling water available. We also have data regarding the various Oil Coolers supplied with various Gear Boxes from gear Box manufacturers. In that case we confirm our design and parameters vis a vis the existing ones and manufacture the same. We carry out the manufacture of Oil Coolers exactly as per the Client's existing Coolers. For the same we depute our technical representative to Client's Site, examine the Cooler and manufacture the new Oil Cooler exactly as per the existing ones. This basically ensures that the new Oil Cooler is exactly inter-changeable with the old ones. If you are not satisfied with the amount of Oil Cooling provided by your Oil Cooler request you to kindly send us the following data to enable us to get back to you with a proper solutio
