CT Scan Machine Dealers in Vadodara

• Type: Refurbished Ct Scanners
• Application: Hospital
• Color: White
• Condition: Refurbished
• Warranty: 1year
• Brand Name: GE

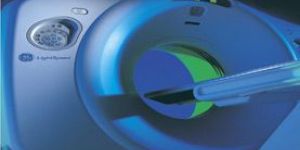

offering unprecedented views of the human body, this leading-edge technology gives physicians the power to make clinical decisions and detect health issues in their earliest, and most treatable, stages. This 16 slice scanner is a development of ge's existing multi-slice lightspeed range, and can image 16 simultaneous 0.63 or 1.25 mm slices per rotation, in addition to other 8, 4, 2 and 1 slice modes   feature:   scan time 0.5,0.6,0.7,0.8,0.9,1,2,3,4, sec. 0.625,1.25,2.5,3.75,5,7.5,10 mm slice thickness. 80,100,120,140 kvp. 1 second minimum interscan delay. 25,50 cm scan field of view. 10-440 ma in 10 ma increments.

• Brand Name: Analytical Technologies Limited
• Condition: New, Used
• Application: Clinic Use, Hospital
• Model Number: iMager 3016 HD CT Scanner
• Type: Ct Scan Machine
• Country of Origin: India
• Gantry type: Low voltage slip-ring with AccuSlip-ring technology
• Gantry driven type: Strap-driven
• Patient opening: 70cm
• Gantry tilt mode: Dual-mode gantry tilt
• Mechanical tilt capability: ±30°
• Digital tilt capability: ±50°
• Gantry remote-Control: Provided
• Detector type: OptiWave rare-earth ceramic detector
• Numbers of detector rows: 32
• Width of Z-axle detector: 20mm
• Detector columns of channels per row: 912
• Numbers of detector columns: 29184
• Data-transfer type: Data-transfer type
• 3D laser orientation: Provided
• External X-ray enable: Interface for Foot-Pedal Provided
• Automatic exposure control˄mA Modulation˅: Provided
• Analytical energy conservation management: Provided
• Acquisition mode: 16 × 0.625mm, 16 × 1.25mm
• Shortest 360 degree rotation time: 0.5s
• Allowed rotation times: 0.5sˈ0.8sˈ1.0sˈ1.5sˈ2.0s
• Slice numbers per rotation: 16
• Minimum slice thickness of scan: 0.625mm
• Maximum slice thickness of scan: 10mm
• Nominal reconstruction slice thickness: 0.625mmˈ1.25mmˈ2.5mmˈ5.0mmˈ 7.5mmˈ10mm
• Speed of image reconstruction˄512×512: 65 frames/s
• Scan FOV: 52cm
• Image reconstruction matrix: 512×512ˈ1024×1024
• Image reconstruction matrix: 512×512ˈ1024×1024
• Maximum continuous scan duration: 120s
• Maximum continuous scan length: 180cm
• Direction of TOPO: Front-backˈLeft-right
• Max. length of TOPO: 180cm
• Range of pitch: 0.5
• Maximum continuous output of HV generator: 50kW
• Tube kV selections: 80kVˈ100 kVˈ120 kVˈ140 kV
• Tube mA range: 10
• Tube anode heat capacity: 5.0MHU
• Heat dissipation rate: 815kHU/min
• Type of cooling: Oil cooling + Air cooling
• Tube focus: Large˖1.1mm×1.0mm Small˖0.5mm×1.0mm
• Dynamic flying focal spot technology: Provided
• Maximum horizontal-movable range: 1850mm
• Table horizontal-scannable range: 1800mm
• able horizontal-position repeatability: ±0.25mm
• Maximum vertical-movable range: 500mm
• Maximum speed of vertical movement: 20mm/s
• Maximum speed of horizontal movement: 150mm/s
• Maximum patient weight: 205kg
• Foot pedal of patient table control: Provided
• High contrast resolution: 21lp/cm@0%MTF
• isotropic imaging resolution: 0.625mm
• Range of CT numbers: -32767
• mage noise: <0.25@28mGy
• CPU: 3.5GHz
• Memory: 16GB×4
• Storage of hard-disk: 1T×2
• Monitor: 24’’ LCD Monitor
• Resolution of monitor: 1920×1200
• mage-data external storage type: CD/DVD/USB
• Time of image reconstruction(512×512): 15.4ms/frame

Full scale upgraded FSE-Fast hydro-imaging for crisp display of MRCP and MRU - Relaxation time difference and signal phase difference enable water-fat suppression and separation imaging- Line scan or K space non uniform sampling make high B value diffusion imaging available-Thin slice and small FOV imaging make high resolution display of small organs available–Breath-hold scan eliminates motion artifact for chest and abdomen-Over-sampling provides flexible FOV imaging–Single-shot imaging for ultra-fast examination-Dynamic analysiss can for kinematic imaging -MRA for clinical applications–Repeat time optimization improves sampling efficiency- Echo sharing reduces can time.

• width: 53 mm

High Quality Reconditioned CT Scanners. SURE Exposure, the unique dose-by-noise regulation control. 20 mm detector width for 53 mm per second volume coverage. Tilted helical up to 30° tilted helical scanning with TCOT reconstruction for ensured artefact free imaging in FOV center and boundaries.

• Number Of Slices: 16- Slice
• Brand Name: iMager
• Model Number: iMager 3016 HD
• Rotation Time: 0.5 sec
• Weight Bearing Capacity: 205kg
• Other Features: advanced clinical / diagnostic/ hospital applications
• Image Resolution: High

We supply Osirix 64-bit version with Perpetual License to our customers. In addition to it, we also help doctors in setting up Osirix with any of their DICOM Modality. 24 hours telephonic and email support is another advantage which we provide to doctors. Navigation through Osirix is very easy since its interface is very user-friendly. The doctors can switch over from patient to patient from database window while simultaneously viewing the images in the 2D viewer.
