Cyclone Separators Dealers in Vadodara

Cyclonic separation is a method of removing particulates from an air stream, without the use of filters, through vortex separation. Rotational effects and gravity are used to separate the particle from the dust laden air. Cyclone body will be cylindrical in the top portion and conical shape at the bottom as shown in the drawing. The air stream will enter into the cyclone body tangentially in the top cylindrical with high velocity. The top portion of the cyclone body guides the air to move in a circular path in high velocity. A cyclonic effect (twister) will be created inside the body and the air stream move downwards in the heavier dust particles in the helical pattern. The heavier particles in the air stream have too much inertia while moving in cyclonic effect and move towards outer peripheral of the cyclonic effect in the air stream. When the particles are striking the inner surface of the cyclonic body, it will lose its momentum and fall down. In a conical system, as the rotating flow moves towards the narrow end of the cyclone, the rotational radius of the stream is reduced, thus separating smaller and smaller particles.               Cyclone is called as pre-collector in the dust extraction system. Cyclone has good efficiency in dust separation for large size particles and fiber dust particles. Cyclone separator will be used to segregation of items or products in the conveying systems. Cyclone separator MOC will be defined by the application and nature of dust to be handled. Cyclone separators widely used in Wood industries Flour mills Pneumatic conveyors Coir mattress Fibre glass Buffing & Polishing Boilers and furnaces exhaust Bulk drugs

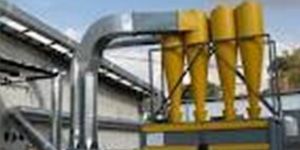

Being a leader in the industry, we are engaged in offering a qualitative range of Multi Cyclone Separator to our customers. Details: Multi-cyclone is the second generation mechanical dust collector after the cyclone. It is having multiple parallel cyclonic tubes inside the chamber which separate the heavy dust particles from the air stream. This is used as a primary separator to reduce the dust load on the bag filter or dust collecto

The cyclone is a widely used type of particulate collection device in which dust-laden gas enters tangentially into a cylindrical or conical chamber and leaves through a central opening. When very large gas volumes must be handled and high collection efficiencies are needed a multiple of small diameter cyclones are usually nested together to form a multicyclone. Such systems are also customized for product recovery system along with pollution control equipment.

Multi Cyclone Separator, Autoflush Gravity Filter, oil mist eliminators

aerators, petal type dished ends, Pressure Filter, Scrubbers
