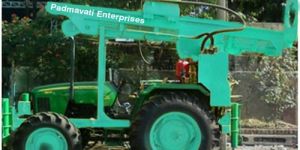

Drilling Rig Dealers in Vadodara

We are offering water well drilling rigs. By utilizing the full capacity of our experienced manpower we are able to give the high quality range of water bore drilling rigs to our prestigious customers. The raw materials are used in the fabrication of these rigs are obtain from the trusted vendors of the industry to maintain its strength and durability.

• Condition: New
• Usage/Application: Mining
• Drilling Depth: 50-100 meters, 100-200 meters, 200-300 meters
• Power Source: Hydraulic
• Hole Diameter: <100 mm, 100-200 mm, 200-400 mm
• Drilling Rig Types: Land Based Drilling Rigs

• DEPTH: 4½" dia bore holes to a depth of 100 mtr (300 ft) using   3" drill rod
• PRIME MOVER: Tractor through PTO - 100 bhp for hydraulic / from compressor air for Pneumatic
• WORK METHOD: Rotation with direct circulation, nucleus destruction with bleeding By water, air or foam
• MAST: Channel structure
• PULL UP SPEED: 8.5 mtr / min (28 ft / min)
• PULL UP FORCE: 2694 kg / 5926 lbs
• PULL DOWN FORCE: 1814kg (3990 lbs)
• PULL DOWN SPEED: 12.5mtr /min
• HYDRAULIC SYSTEM: 140 kg / cm2 (2000 psi)
• REEVING RATIO: 01:02:00
• ROTARY HEAD: Maximum Torque - 146 kg - mtrs (12740 inch – lbs)
• ROTARY HEAD SPEED: 0 to 25 rpm
• ADDITIONAL FEATURES: The same mast can be mounted on small truck for easy approach of  difficult site condition this can also be altered to drill horizontal bores up to 300 feet
• SUITABLE COMPRESSOR: 450 cfm/ 150 psi;
• Max Capacity: 8 tons (17600 lbs)
• Height : 4 mtr (15 ft)
• Rod handling: 3 mtr(10ft)
