Drum Screens Dealers in Vadodara

• sizes: 1000 mm to 2400 mm, 1000 mm to 5600 mm

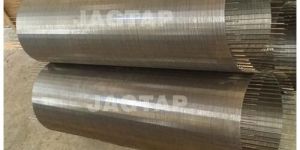

"High Performance way of Removing Suspended Solids from Liquids” this “Jagtap” principle introduces liquid under minimum head loss conditions and rotates the screen in the opposite direction so that maximum shear velocity is achieved. This is used for fast separation of solids from liquid. This principle not only carries the operation at reduced cost, but also increases substantially the quantity of raw juice handled on a specific screen size. Screening efficiency is also improved as, in all cases; the raw juice is introduced tangentially on to the contra-rotating face. Because of the shallow approach, this system also increases the percentage of Bagacillo capture off the screen surface. Drums rotating in same direction as that of the juice flow, causes flooding of the juice adversely affecting screening efficiency. Rotary screen sizes range from 1000 mm to 2400 mm ID and from 1000 mm to 5600 mm long. Flow rates are dependent on Rotary Screen’s open area and size.

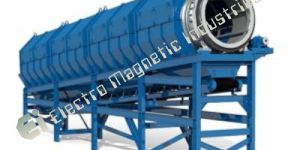

Drum screen is widely used for screening and classifying mineral materials. Such as metallurgy, mining, chemical,coal, building materials, abrasives and other industries. After the crushed stone is fed into drum, the stone was classified, While the bigger stone flows forward along the inclination of drum and was classified through different mesh screeches gradually. Classified small stone fell into respective bunker, and then were delivered into finished product stack through manpower or automatic flow way. —————Introduction To Main Unit Structure—————-   1. Feeding End 2. Supporting Roller 3. Speed Reducer 4. Motor 5. Motor Seat 6. Hopper Under Screen 7. Stand 8. Gear Ring 9. Water Pipe Rack 10. Side Board 11. Water Pipe 12. Sieve 13. Screen Fixed Rack 14. Discharging End

Drum Screen, Rotary Screen, sieve bend screen, Filter Screen

rotary wedge wire drum screens, Wedge wire basket, Wedge wire tubes

Rotary Drum Screen, concentrating table
