Electro Magnetic Industries Por, Vadodara, Gujarat

It is merging of radio remote control technology into single rope garb for handling bulk materials. It is particularly designed for operation with single –hook crane and ship crane, with reliable performance and easy operation procedure. The garb could be open at any position in the air.   ——————Advantages——————- No power supply Required. Stable and no special requirement for material. Easy handling. Crane’s lifting power is converted into closing force. Low wear of hydraulic fluid. Long service life of the hydraulic system.

Wet Process Magnetic Separator is used to separate magnetic minerals from non-magnetic minerals is ore beneficiation, coal washing, chemical industry, etc. The minerals size ranges from 0-6 mm and the Xmax (coefficient of magnetization) should be higher than 3000 x 10-6 cm3/g). Magnetite and Pyrrhotite are with strong magnetic force, while hematite, limonite and siderite are with weak magnetic force, and should go through magnetic roasting process before separation process.   —————Introduction To Main Unit Structure—————- 1. Diffluent Trough 2. Dilution Water Pipe 3. Stainless Steel Cylinder 4. Adjusting Arm 5. Positioning Bold 6. Frame 7. Tailings Discharge Mouth 8. Concentrate Receiving Hopper 9. Concentrates Discharging Mouth 10. Ore Discharging Pipe   11. Driver 12. Rubber Gasket 13. Magnet Support 14. Magnet

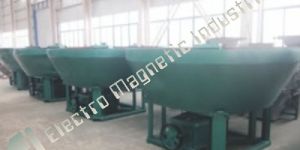

Wet Pan Mill, also called wet type pan grinding mill, can be divided into gold pan mill, amalgamation pan mill, iron pan mill and electric pan mill according to different working ways. It can also be divided into wheel pan mill, double-roller mill and three-roller mill due to different structures. Wet pan mill is developed and improved from ancient stone pan mill, and widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. It is the first choice for ore beatification plant with all levels   —————Introduction To Main Unit Structure—————- 1. Central Driving Shaft 2. Bearing Seat / Cover 3. Belt Pulley 4. Belt 5. Motor Sliding Rail 6. Motor 7. Speed Reduce 8. Stand 9. Basin 10. Grinding Base 11. Roller 12. Fixed Flange 13. Sealing Cover of Shaft End 14. Crank Shaft 15. Round Nut 16. Static Crank Arm 17. Roller Connector 18. Wheel Hub

 Electro Magnetic Industries Wet Drum Separator is a combination of Drum with unique permanent magnet arrangement and a specially design counter rotation tank, which results in a unit with performance exceeding that of conventional separators. Electro Magnetic Industries drums are provided withered 915mm diameter and available in magnet width from 610mm to 3050mm. The capacity and the performance figures given are for the drum in our counter- rotation tank. Capacity per meter of Drum width up to: Pulp 160m3/h- Magnetite30t/h- ferrosilicon 40t/h. The Drum is direct driven by a shaft mounted geared motor unit which eliminates the main-tenance and spare parts associated with chain or belt drives. The drum shell, end flanges and a tank are all made from 304 grade stainless steel. The tank has a full – length weir with adjustable apex. The amount of overflow water and pulp level is controlled by the apex position and orifices plates in the underflow outlets. The drum shell can be fitted with stainless steel wear wrap, alternatively covered with rubber or polyurethane. The internal surface of the tank can be lined with rubber or polyurethane. A trash screen is fitted in the feed box section of the tank. The position of the Drum in the tank is easily adjustable, horizontally and vertically. Recovery up to: 99.9% for primary duty.Concentrate density up to: 3.6 with ferrosiliconThe Drums can be installed into existing tanks (counter- rotation or concurrent) for increased recovery and /or concentrate density. They are particularly suitable for secondary duty, recoveries of over 60% being obtained with pulps containing less than 0.1g/l magnetic. The wet drum separator was developed to meet the needs of DTMS plant designers and operators, for a unit with increased capacity, improved performance, minimum maintenance and space parts requirements. The separator consist of a drum with stationery permanent magnet assembly, tank and drive unit ,all mounted on robust frame.

We specialize in computer programming, industrial technology, industrial Controls, batch process, automation systems, weighing, custom programming, GSE scale indicators, compounding, blending, recipe management software and inventory management systems.EMI Solutions, has achieved a reputation in the industry for the excellence of their  “automation “ products and services. The systems we provide to our clients are very reliable,  user-friendly and flexible and most importantly, they are customized to the specific  needs  of each customer.EMI Solutions’s commitment is to provide its customers with state-of-the-art technology and service of the highest quality. Each phase of the project is professionally monitored to ensure complete customer satisfaction. We take pride in our innovative solutions, design, technology, installation, and service. Understanding  our customers’ needs and  expectations is the key element of our success  and  continued  customer loyalty. EMI Solutions Products and ServicesIn addition to our standard array of products. EMI Solutions will design the system that meets your needs.Fully Automated Multi-Station Batching System:Ours complete Batch Process Control Data Acquistion Software provides an automated batching/blending production line.Inventory Management and Process Scheduling Software :Ours Complete Inventory Management System provides real time tracking of inventory from raw materials to the finished products.Help File Development/Web Page Design:We can customize your programs with pages designed with systematic instructions for navigrating through even the most complicated programs. We can custom design a web solution suitable for any small of large business.   —-Automated Batching Systems for Material Handling —- Ingredient Masters’ Automated Batching Systems substantially improve the efficiency of powder materials handling. Custom-engineered systems increase output and product consistency, eliminate waste, and generated production data.Automatic powder materials handling systems manufactured by ingredient Masters use off-the-shelf hardware and software to prevent issues with proprietary equipment and platforms and facilitate easy maintenance. The metering systems and powder blenders used in our system are recognized worldwide for highest reliability.   —-Key features of our materials handling systems include:—- Turnkey system design, engineering, manufacturing, installation, commissioning, and training are provided Semi automatic to fully- automated systems that include metering and powder blenders. RS-232 output Local network compatible PLC/PC control Scaling, metering, conveyors, specialized product transfer equipment Integral dust collection Integrated bar code / RFID for full product traceability Systems, as well as metering, operator interface and powder blenders and ISO compliant Ongoing technical support Upgrades to maintain future technology Inventory rotation (FIFO) Ingredient Master provide Custom-Engineered Solutions for Dry Powder Handling.

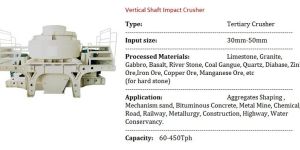

It is the most advanced high performance sand making machine in EMI. It provides high- speed rail, construction, municipal administration construction, water and electricity dam construction. It is the first choice of sand making and stone shaping fields. VSI-Sand making machine is widely used for fine crushing and coarse grinding of metal and non metal ores, cement, refractory material, grinding material, glass raw material, building aggregates, artificial sand and all kinds of metallurgical slags. It is especially suitable for medium degrees hardness materials; high hardness materials and corrosion resistance materials, such as Carborundum, emery, sintered bauxite,magnesia, etc. VSI Series high efficiency impact crusher (VSI Sand Making Machine) is the newest achievement design.   —————Features And Advantages————–   High yield and capacity – 50 – 500 t/h, 30% higher than ordinary machine with same motor power. Low consumption of wear parts – optimal design of crushing cavity, less abrasion of wear – resistant parts, the operation fee reduce about 40% which directly reduce operation cost. Perfect final product shape – cube, good shape of final product , grading reasonable, the product size can be adjusted, especially suitable for sand making and beauty the product shape, practice proved that this type of sand making machine improve 30% higher than other ordinary sand making machine. Hydraulic device, easy for maintenance – hydraulic drive cover open, easy for repair and change parts in the crushing cavity, convenient and quick, saving working time. Automatic detection, safe and reliable – there is over –vibrating and alarm device, the machine will send alarm and stop when meet abnormal operation, protect our machine from damage.Easy installation and operation, the machine is not heavy, installation method is various, also for mobile usage; easy for installation, maintenance and operation. Multi – function and Flexible Application – Unique feeling and crushing structure and various crushing cavities enable easy conversion of “rock-on- rock” crushing and “rock-on- iron” crushing, which realize the multi function. It can be widely applied to sand making, stone shaping and grinding and can meet customers various requirements without big changes of the machine.

Volumetric Feeder machines are compact, self-contained units, incorporating a vibrating bulk supply hopper and a vibratory through feeder. Both air and electric powered feeder machines are equipped with Independent variable controls for adjusting feeder flow rate. Special control features are available where timed feed rates or operation from a scale signal are required. These machines are used by industry to handle a wide variety of bulk materials. Applications include the controlled feeding of lime and other chemicals in water filtration and sewage disposal processes. In the pulp and paper industry, they are used to feed chemicals during the bleaching process.   The food processing industry uses feeder machines to sprinkle nuts, fruit and chocolate toppings onto cakes, muffins and ice cream products. In the packaging industry, these feeder machines are used to convey various ingredients to weighing systems for controlled packaging. The fastener industry handles small bolts, nuts, Screws and washers. Using our feeder machines which are remotely controlled by weight from a scale. Scale operated feeder machines are equipped with an automatic or manual, two station push button control. One button controls the fast speed to accomplish the major portion of the filling and the filling, and the second button controls the slow dribble fee that enables the operator or scale to stop the exact weight.     ———————–NETTER DOSING FEEDERSDOSYPACK SERIES———————– Exact dosingHigh conveying performanceGentle and uniform dosingAdjustable fine or coarse flowAll product – carrying parts made of stainless steel 1.4301High surface qualityQuick and easy to clean ———————–NETTER POWER PACK FEEDERS———————– There are two principles used for feeders. These are characterized by their basic working method: feeders with forced drive vibrate at the frequency of the driving force, resonance feeders vibrate at the natural frequency of the spring – mass system.The Power Pack systems works using forced vibration. The feeder tray is mounted on leaf springs and is excited at a freely selectable frequency and amplitude.In contrast to many other feeder systems, the frequency and amplitude of Power Packs can be independently adjusted. They can therefore be adapted to suit a variety of specific requirements.The stainless steel construction makes them suitable for application in the chemical, pharmaceutical and food industries.Power Packs are corrosion – resistant, so there is no problem with using them in aggressive or damp environments.In addition to the normal standard versions, Power Packs are also available in customized versions. Furthermore, all components can be supplied individually.   APPLICATION: Dosy Pack dosing stations are particularly suitable for the fast and exact dosing of all types of bulk material, or as feeders for optical sorting facilities. Gentle dosing is possible for especially sensitive products.Design and functioning principle:The dosing station basically consists of a conveyor channel mounted on leaf springs and a silo. All product – carrying parts are made of brushed stainless steel (Ra=0.25, Rz=1), all other parts are made of corrosion resistant and physiologically harmless materials.Because of the functional design Dosy Packs are fast and easy to clean. This allows it to be used even under the extreme hygienic conditions demanded by the chemical, pharmaceutical and food industries.The flow rate can be varied with the dosing port at the silo outlet.Two compressed air liner vibrators, of type NTS 250 NF or type NTK 18 AL + SM 16-1, are available. They work without running on, so that the product flow is immediately interrupted, once the vibrators are switched off.The exact feed quantity is regulated by adjusting the frequency and amplitude of vibration. Both can be independently adjusted. Increasing the supply pressure causes an increase in the frequency. The amplitude can be adjusted by regulating the optional throttle.A multi – directional valve is required for operation (not supplied).In addition to the standard versions, series Dosy Pack dosing stations are also available in customized designs. Furthermore, all individual components can be supplied separately.

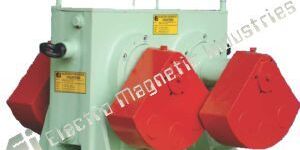

Uni – Exciters are used as vibratory drives for vibrating conveyors, screening machines, scalping and self-discharging shakeouts preferably when very big and therefore very heavy machines have to be driven. The long service life in toughest industrial use confirms the refined design concept of the Ei – Exciters. FEATURES: Ei Uniforce Exciters are robust in construction & have powerful drive. Operation is almost Noiseless & Continuous. Maintenance is minimum & easier. Provides peak performance amidst the most serve conditions. OPERATION OF THE EXCITER: – The drive motor drives the unbalance weights through the Cardon Shaft & connecting joints (coupling piece). The rotating centrifugal weights thus give the exciter machines to cause sinusoid ally pulsating drive force to the Vibratory Machine. The force thus exerted is perpendicular to the surface on which the exciter is (foot) mounted through the flange connection. The forces generated from this direction & deviating are however, compensated within the Gear Housing. The speed of the exciter can either be a fixed speed, reverse speed or it can be controlled by a suitable “Variable Frequency Controlled Drive” with varying speed. Variable Frequency Drive is incorporated if the feed rate of the Vibratory Machine is required to be changed. ————Construction and Technical Features:————   GENERAL:Ei Uniforce Exciters are widely used as the drive of Vibratory Feeders, Screening Machines, Vibratory Shakeouts, Vibrating Conveyors, especially when they are very big in size & for handling the material in big quantum.These drives provide to machines, to work against odd & toughest industrial use thereby the longitivity of machine’s life and service is achieved.     ————————Advantages—————————- Uniforce Exciters drives: Two shafts with centrifugal weights are operated in opposite directions via a toothed gear , this action creates linear vibrations. the drive power is generally transmitted via a card an shaft with a standard, stationery motor.Heavy Duty: EMI exciters are primarily use for large and heavy vibration machine. Their long service lives and problem.-free operation , even under the most difficult industrial conditions-testifiers to the EMI technical design.Long service live:Our welded designs, EMI gearbox housing, are manufactured exclusively from high quality  MS. The bearing arrangement consist of heavy duty , high quality cylinder roller bearings. The centrifugal weight are also protected by particularly sturdy hoods.Machine observation:Forced mechanical synchronization dispenses with the critical synchronization phase and the associated high loading during starting and stopping . The base machine construction is conservatively designed.Easy maintenance: An oil splash system supplies the gear and the bearing with a constant supply of lubrication. EMI exciter can be operated in any position and are reliable in ambient temperatures of -40C to +100C when the appropriate oil is used.Variable parameters:with the machine off, the oscillation amplitude can be reliably set to the particular requirements by simply adjusting the centrifugal weights. The oscillation frequency can additionally be adjusted via a frequency converter.Drive:A standard hydraulic or 3-phase motor is used as the drive motor. Please note that that the highest admissible speed of the exciter may not be exceeded and that the motor’s starting torque must be 2.5-times that of the nominal torque.Tip:where extremely wide or heavy machine are concerned, several exciter can be operated in series with one drive motor. The starting torque is thereby transmitted from one exciter to the next by coupling shafts.

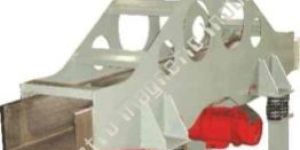

A new innovative vibrating equipment design from Electro Magnetic Industries conveys in either direction with a quiet, smooth, horizontal motion without dusting or damage to friable materials. Direction of material flow is easily and immediately reversible at the touch of a button controlling the rotational direction of a single, low horsepower, Self-contained drive. Smooth horizontal material flow makes a TWO-WAY unit ideal for moving a variety of bulk materials including powders, chemical or food products. Minimal vertical acceleration force also permits the noise-free movement of castings, sprue and other metallic parts with reduced trough wear. Conveying motion is essentially horizontal, with minimum vertical acceleration, resulting in gentle, noise free “shuffling” material movement without bouncing. Vertical forces, less than gravity make the unit ideal for handling fine materials which would tend to aerate and be difficult to handle in a conventional vibrating conveyors.

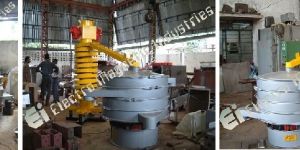

“Electro Magnetic Industries” Unbalance Vibratory Motorised Spiral Elevator is the perfect way to accomplish multiple processes while elevating your product. If you need to heat, cool, dry cure, dewater, or quench while elevating, Spiral Elevator is ideal for your application. Spiral Elevators as they have been known and used for years in all industries for the vertical transportation of materials. They consist of a vertical tube around which winds a conveying path the cross-section can be rectangular or round. According to the spiral like arrangement of the conveying path, a long and effective conveying distance is achieved. Unbalance motors are attached in diametrical positions and in a certain angle either at the bottom or at the top of the tube. They produce tensional vibrations by micro-throw movements over the whole conveying-paths the product is induced to make its way steadily upward. these products ore also employed to convey explosive or inflammable products, which must be handled with great care, avoiding the risk of sparks or explosions. FEATURES AND BENEFITS:Vibrating Spiral Elevators are designed to elevate bulk materials along a helical path Smooth harmonic vibratory motion.

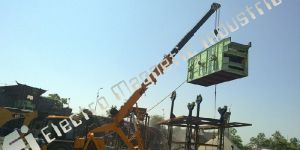

———————–CIRCULAR MOTION SCREENS———————– Circular Motion Screens are operated either by a single shaft vibrator or by a single unbalance motor. Due to the eccentricity of the shaft in the case of single shaft drive, a controlled circular motion is produced. In the case of a single unbalance motor drive, the circular motion is produced by the unbalanced weights on the rotor shaft. These screens have a slope varying between 15 and 25. They are commonly used with a combination oflow amplitude of vibration and high frequency. ———————–DEWATERING SCREENS———————– Dewatering Screens are used for separation of solids from liquids. Best results are achieved with screens which are slightly inclined so that the mass of solids can accumulate and build up. An adjustable discharge plate allows for fine-turning a high frequency of vibration increases efficiency of sizing and dewatering.

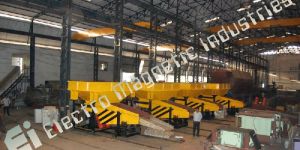

The design of the leaders is adapted to the operating condition imposed by the site. Ex: Leader of Induction furnace with reduces height of load, loader of horizontal aluminum furnace, loader of furnace of induction. The charger of Cupola furnace consists of an electromechanical vibrating conveyor assembled on auto strong wagon. The receipt is contained in a static receiving hopper assembled on monopiece carriage. The end of the vibrating conveyor is equipped with an interchangeable refractory stainless nozzle. Dimensions of the vibrating conveyors of loading can have maximum 2500 mm of width by 6000 mm length, with a capacity of loading of 10 tonnes/minute by operation. The monopiece carriage allows transverse displacements or in rotation.

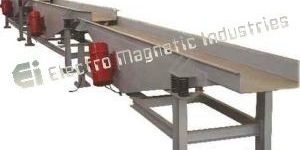

With Electro Magnetic / Motorized Type Vibratory Conveyors are used in almost all the industries to convey the product in industries like dry aggregates, foods, fruits, vegetables, rubber, gun powder, abrasive, explosive materials, foundry sand, chemicals, ceramics, metal parts, stamping, casting, Tobacco.           Chemicals: Conveying of scrap plastic pellets of fiberglass in reprocessing system, conveying and scalping foreign matter from chemicals at bag dump stations. Food: Conveying of multiple ingredients for blending while conveying. Transfer of bulk ingredients from weight hopper to mixer, conveying freeze-dried of spray dried food product of storage area. Foundry: Conveying sand in primary and sand processing system, conveying small castingfrom shake out areas, conveying scrap to charging area. Automotive: Parts conveying in blanking and punching operations. Conveying parts to platingoperation, flux conveying in automatic welding machines Concrete: Conveying dry ingredients (cement, sand, gravel) to weigh batch hoppers. Distributionof Steel reinforcing particles in concrete botching and mixing operations. Steel: Mill scale conveying units under strip and bar operations.

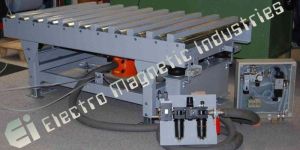

Vibrating Table(Electro Magnetic type/Unbalance Motorised Version)     –Compaction Table: Heavy duty for maximum loads.–Standard or custom made to specification.Speed and impact adjustable Electro Magnetic Industries” compaction tables can be supplied with Pneumatic or Electric Vibrators. Most are both speed and force adjustable and Heavy-duty construction. “Built in” versatility means these tables can be used for packing, setting, casting concrete as well as fatigue testing. Vibration is isolated from the frame with inflatable air mounts, rubber mounts or springs. Electro Magnetic Industries’ engineers will design a table to meet your specific needs.   ———————–Flat Platform Table———————– Low profile – as low as 2” from floor.–No vibration transfer to the floor. Vibrating platform with a working surface as low as 2” from the floor. The platform table can be used under filling machines for packing drums and barrels. Low profile eliminates the need for raising machinery or breaking into the floor and makes loading and unloading heavy drums easier. Packing more material per given volume saves costly spaces and lower escalating transportation cost. ———————–Grid Top Tables———————– Automatic operation.–Adaptable to any roller conveyor.–Light weight yet strong. The “Electro Magnetic Industries” Grid Top Table is designed to fit between the rollers of your conveyor. The load foundry flask, drum or box is rolled into position. Lift the grind top and take the load off the rollers. The vibrators are activated and the load vibrated. Air mounts are deflated and the load is back on the conveyor ready to be moved along. All done in seconds without handling. The Electro Magnetic Industries’ design uses strong light weight rectangular tubing for more vibration transfer to the load.

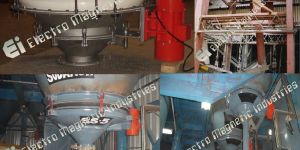

UNBALANCE MOTORISED BIN ACTIVATORElectro Magnetic Industries Bin Activators are recognized worldwide as the most effective means for discharging dry materials from storage Bins. It assures positive, continuous flow from storage on a first-in, first-out basis. It eliminates bridging, jamming, segregation and retooling. Even such difficult to handle materials as prepared foundry sand, titanium dioxide, wood chips, brown sugar and wet shale are discharged freely on demand.Micron-sized particles, ore chunks, fibers, flaky, sticky and fragile materials all have been handled successfully by the Bin Activator.Available in standard diameters from three to sixteen feet. Electro Magnetic Industries Bin Activator attaches to the enlarged opening of any new or existing bin. It operates quietly and continuously with virtually no maintenance. Delivered completely assembled and ready to install. Bin Activators Can be attached to any bin, round, square, steel or concrete. The preassembled mounting ring permits rapid installation field welding

EMI Grizzly Feeder is built to withstand the toughest jobs in a quarry, recycling,mine or sand and gravel operation. The Series Grizzly Feeder is designed particularly for continuous use with any hard and abrasive materials. They are backed by years of service proven performance in the mining,aggregates, glass, cement, chemical, wood products and steel industries. ———————–GRIZZLY FEEDER WORKING PRINCIPLE———————– Grizzly Feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached. ———————–GRIZZLY FEEDER FEATURE———————– The Grizzly Feeder is flexible in design.Extra heavy-duty construction.Exclusive vibrator technology.Good performace-conditioning, no material flush phenomenon.Easy maintenance and low operating costs.

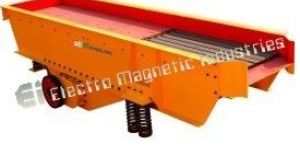

Vibrating feeder can transfer the massive , granular materials from the storage bin into the feeding device continuously and uniformly in the production process, it is widely used in metallurgy , mining , mineral processing, building materials , chemical industry, abrasive and other industries with the crushing , screening equipment.

Power : 45 - 185 Kw

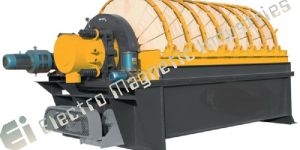

Vacuum Filter Separates the solids from the liquid in the mixture via porous medium, and is widely used in chemical industry, petroleum, pharmacy, light industry, food, ore beneficiation, coal, water treatment, etc.     —————Introduction To Main Unit Structure—————- 1. Filter Cloth 2. Fixed Ruler 3. Fixed Bolt 4. Turnplate Slot 5. Discharging Mouth 6. Fan Sucking Chuck 7. Gear Case 8. Steam Separator 9. Motor 10. Stirrer   11. Speed Reducer 12. Motor 13. Motor Seat 14. Body

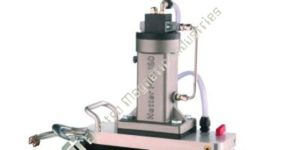

Netter Vacuum Fixing Devices Series VAC Circular Vibration Nomonal Ferquency from 750 min-1 to 3.600 min-1 Centrifugal force from 40 N to 217.700 N Smooth housing surfacr Stainless steel weight covers Ex || 2 GD (ATEX) avaible Protection IP 66-7 , Insulation class F Stainless steel versions avaible Application   The vacuum fixing devices series VAC are designed to allow quick attachment of vibrators to smooth or, under circumstances, uneven and curved surfaces. A special feature of the the vacuum fixing is the ease of attachment, which requires no welding or bolting. Construction and working principle Construction and Working Principle: The appropriate vibrator is screwed to the vacuum fixing and connected to the supply hose leading to the hand valve. As soon as the vacuum fixing is connected to the compressed air supply, the unit is sucked tightly to the mounting surface, thus ensuring a strong connection between the vibrator and the surface.The air economizer “S” creates a reduced vacuum, which is sufficient to clamp the vibrator when it is not running and which reduces the air consumption by over 30%.ATEX conform vacuum fixing series VAC and units with stainless plate are available.When the vibrator starts, the fixing device automatically produces the full vacuum. Permissible operating conditions Drive medium: Compressed air or nitrogen (filter ~ 51lm)Operating pressure: 2 bar to 6 bar Ambient temperature: -1 DO C to 60°CAmbient temperature:-10 C 10 60CNetter Vibration offers the accessories required for the mounting , installation and control of vibrators and interval impactors.Netter Provides Solution:Netter Provides Solutions. Consult our experienced application technicians.

Pressure : 2 bar to 6 bar Ambient temperature: -1 DO C to 60°C

Temperature : 10 C 10 60C

 More than 33 years of experience with the industrial use of vibrators enable us to advise our customers about the beneficial use of vibrators and vibration technologies. Vibrators are drive elements for all types of vibratory equipments. These are in particular conveyor troughs, screens, vibrating tables and silos for all types of bulk handling material. Vibrators are also use in construction industry as internal or external vibrators for the compaction of concrete. Industrial applications are mainly conveying, compacting, emptying, cleaning, testing and feeding of all kinds of products. Vibrators are used in almost all industrial areas in chemical feed industry and food industry, pharmaceutical industry, electronics, foundries, construction industry, animal feed industry and in the packaging industry.   Applications Mechanical Data Centrifugal Force Range:  From 35 N to 160.000 NOperating torque Range:  From 3.7 to 3000 Kg cmPower Consumption:  From 0.13 K.W. to 18 K.W.Ambient Temperature:  Up to 60°C Field of Application: •Heavy industry for e.g. Coal, Lignite, Ores, Salt•Manufacturing Industry for e.g. Iron and Steel works,Sands, Gravel & Stone Quarries, Glass works•Chemical industry for e.g. Synthetic Materials, Rubber,•Fertilizers, Chemicals•Food Processing industry•Timber industry•Mechanical Engineering&Manufacturing of Instruments   Sample of Application As Drive For:Vibrating Conveyor through, tubeVibrating ScreenBar Grid ScreensHelical ConveyorAs Vibrators For:Silos, Bins, Deflection, Grids, Filters,Filing Plants, Chutes, Gravity Pipes   Construction & Technical Features 1.Power Supply:Three-phase voltage up to 690V, 50 Hz or 60 Hz or single-phase 100-130 V, 60 Hz and 200-240 V, 50Hz (single-phase types are supplied without capacitor); suitable for use with an inverter from 20 Hz to the base frequency with constant torque load profile.2.Polarity:2, 4, 6 and 8 standard poles.3.Conformity with European Directives:Low voltage 73/23/CE; Electromagnetic Compatibility 89/336/CE.4.Reference Regulations:EN 60034-1, EN-50081-1, EN-50081-2, EN 50082- 1, EN-50082-2, IEC/EN 61241-0, IEC/EN 61241-1.5.Functioning:Continues service (S1) at maximum declared centrifugal force and electric power. Intermittent services are also possible depending on the type of vibrator and the operating conditions. For detailed information, contact our technical department.6.Centrifugal force:Range extended up to 26000 Kgf. (254 kN), with centrifugal force adjustable from 0 to 100%.7.Mechanical protection:IP55 according to IEC 529, EN 60529.IP65 on Request8.Shock-proof protection:IK 08 according to IEC 68, EN 50102.9.Insulation class:Class F (155° C), Class H (180° C) on request. 10.Tropicalization:Standard on all vibrators, with vacuum impregnation up to gr. AF 33 and 35, with “drop by drop” trickle system for larger size.11.Environmental temperature:Standard PTC rated thermistor heat detectors 130° C (DIN 44081 44082) from size 70, on request for smaller sizes. On request, thermistors with different temperatures and anti-condensation heaters.12.Fixing of the vibrator: In all positions and therefore without restrictions.13.Lubrication:All vibrators are lubricated in the factory and do not require further lubrication if used in normal operating conditions. Periodical re-lubrication may be applied to size 35 and larger.14.Terminal box:Large fixed electrical connections. Special shaped terminals allow to fix the power supply cable, protecting if from loosening.15.Electricmotor:Three-phase asynchronous type. Designed for maximum starting torques and torque curves specific to requirements of vibrating machines, insulated windings using vacuum encapsulating up to size 35; using the “drop by drop” trickle system with class H resin for larger sizes. The rotor is die cast aluminum. 16.Casing: S.G. Iron sizes & shape that improves heat dissipation and lowers normal working temperature at full load.17.Bearing flange:Cover:Constructed in S.G. Iron the geometry of the flange transmits the load to the casing uniformly.18.Bearings:Custom made with particular geometry, especially designed for EMI, suitable to support both high radial and axial loads.19. Motor shaft:In treated steel alloy resistant to stress.20.Eccentricweights:Allow continues adjustments of the centrifugal force. This adjustment is realized by a graduated scale, which expresses the centrifugal force as a percentage of the maximum centrifugal force.21.Weight covers:In aluminium alloy. On request, weight covers in stainless steel AISI 316 are available for some models.22.Painting:Electrostatic surface treatment based on polymerized epoxy polyester powder in oven at 200° C. Tested in salt spray for 500 hours.

EI-Exciters are used as vibratory drives for vibrating conveyors, screening machines,scalping screen and self-discharging shakeouts preferably when very big and therefore very heavy machines have to be driven. The long service life in toughest industrial se confirms the refined design concept of the Ei-Exciters. EI Uniforce Exciters are widely used as the drive for Vibratory Feeders, Screening Machines,vibratory shake outs, Vibratory Conveyers, especially when they are big in size & for handling the material in big quantum. These drives provide to the machine, to work against odd & toughest Industrial use thereby the longitivity of Machine life & service is achieved. EI Uniforce Exciters are robust in Construction and have powerful drive. Operation is almost Noiseless and Continuous. Maintenance is minimum and easier. Provide Peak Performance amidst the most severe conditions.

For dry and free flowing materials, Tube Magnets protect processing equipment and product purity by capturing ferrous contaminants in a vertical flow system. Tube Magnets provide product protection for many industries, flour, feed and grain, food processing, powder and bulk, chemical resin and plastic processing etc. The Powerful Permanent Magnet is in a canister within all steel and stainless steel housing. The Magnet is mounted to a swing out door for easy access and simplified cleaning. Tube magnets are designed for tramp removal in free flow, dry product systems.

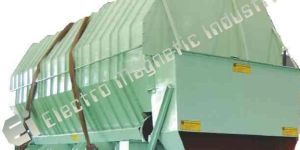

TROMMEL SCREEN APPLICATION This series of Trommel Screens are widely used in processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc.   The equipment installation, maintenance is simple, operational coefficient,with the majority of domestic manufacturers of vibrating screenscompared to the current use of the following advantages: The installation angle of inclination is small, easy to plug Small Floor space Low noise, dust pollution Operation Stable Screening efficiency is high Yield large Unique screen design, result in longer screen life and less blocking ofmesh screen.
