Electromagnetic Flow Meter Dealers in Vadodara

In order to attain complete client credibility, we let the clients' to choose either online mode or offline mode for making payment. And, we guarantee for authenticity and confidentiality. Be it seasonal supply, wholesale supply or quick delivery, we are capable of entertaining all your requirements as we have state-of-the-art storage space to keep the stacks of the products in an organized manner.

• Brand Name: PRIMA
• Material: Cast Aluminium
• Pressure: 10 Kg/cm2 (more on request)
• Operating Temperature: 2-50°C
• Accuracy: + 0.5 – 0.2 % of F.S
• Country of Origin: India
• Display: Digital

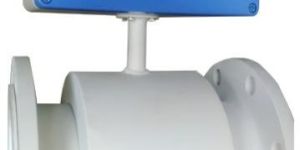

Introduction: Electromagnetic flowmeters accurately measure the flow rate of conducting liquids or slurries flowing in closed pipes. Due to its simple and proper design, the electromagnetic flowmeter is an obstruction less & maintenance-free instrument in place of the conventional mechanical flow measuring device. The use of “Pulsed DC” technology offers the highest ability & better measuring accuracy in the form of 4-20mA DC output linearly proportional to the volumetric flow.Applications:Effluent Treatment Plants, Sewage Treatment plants, Water Supply Schemes, Steel & Aluminium, Pulp & Paper, Chemical & Fertilizers Food & Drugs, Pumps Valve, Calibration Lab, Dairy Industry, Corrosive Liquid, Municipal Corporation, Sugar Industry, Textile Industries, Dyeing & Printing, Hotels & Resorts, Water Parks, and Buildings & Infrastructure.Features: Size DIN 10 to DIN 3000 NB pipeline. High accuracy better than + 0.5% of reading. Zero Pressure Drop. Suitable for High Viscosity Conductive Liquids. Digital Flow rate/ Totalizer Indication/ Batching system. Isolated Transmitting Output 4-20 mA. No Grounding Ring is required. Minimum Upstream & Downstream Straight Length. Compact & Rugged, IP 65 Protection. Remote Flow Indication Totalizer/ batching System through GSM Modem.

• Type: ELECTRO MAGNETIC
• Brand Name: KABIR
• Size: 1/2" - 12"
• Model Number: EMF-009
• Application: CONDUCTIVE LIQUID
• Place of Origin: VADODARA
• Lining Material: TEFLONE

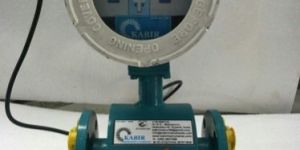

We are an appreciated manufacturer and supplier of Versatile Electromagnetic Flow Meter from Vadodara, Gujarat. Versatile Electromagnetic Flow Meter is used for the measurement of flow rates of conductive liquids such as raw water, chilled water, effluents, potable water etc. We offer these Flow Meters in both Teflon lining and hard rubber lining. The Meter comes with various water metering equipment i.e., water proof enclosure, communication options, RTC with data logging etc., The optional GSM modem interface is an added advantage to this Flow Meter. These Meters are highly affordable and require minimal maintenance. Details  :“Kabir” make versatile Electromagnetic flow meter is ideal for conductive liquids such as Raw Water, Chilled water, effluents, Potable water etc. Using time proven electromagnetic flow metering principle, the meter achieves a flow meter for pipes from 15mm to 600mm. Since there are no moving parts, the flow meter gives years of maintenance free service.“Kabir” flow-head can be supplied in Teflon lining or Hard Rubber lining is available with all the features required in a field mounted water metering equipments. These include - weather proof enclosure, communication options, RTC with data logging with printer option and 4 to 20 mA isolated Flow signal transmission option for flow pattern recording. The converter is available as field mounted-IP65 protection category. GSM modem interface can also be supplied as an optional add-on feature.   Figure : The operating principle of Magnetic flow meters is based upon Faraday's Law of electromagnetic induction, “It state that a voltage will be induced in a conductor moving through a magnetic field”E = kBDVWhere E = Induced Voltage, B = Strength of the magnetic field, D = Conductor Width, V = Velocity of the conductorThe magnitude of the induced voltage E is directly proportional to the velocity of the conductor width D, and the strength of the magnetic field B. Liquid acts as a conductor as it flows through pipes. This Flowmeters find varied applications where the flowing medium is difficult to handleMajor advantage of these flowmeters are : Zero pressure drop, No moving part and highest accuracy level at most affordable cost.   Applications : Effluent Treatment plant, Sewage Treatment plant, Water supply Schemes, Pulp and Papers, Sugar industries and Distilleries, Steel and Aluminium, Chemical / Pharmaceuticals, Food and Drugs etc. Tolerates High percentage of suspended solids Sludge, slurries, minerals, paper, sewage – flows with high level of solids which can not be measured other type of meters. Obstruction less measurements Nothing projects into the flow stream, no head loss, no parts to maintain. Suitable for corrosive liquid Acids, caustic and corrosive additives are isolated from the meter pipe by inert linings and compatible electrodes. Suitable for all types of electrically conductive liquids. Liquid where conductivity is of sufficient level to induce measurable

• Weight: 50-100kg
• Packaging Type: Carton Box
• Pressure: High Pressure
• Usage: Industrial
• Specialities: Digital Water Meter Display

Ztech’s electromagnetic flow meter model zt803 is designed for flow measurement of conductive liquids with no moving parts and a ptfe lining. electromagnetic flow meter is suitable for measurement of flow of conductive liquids, which is based on faradays law of electromagnetic induction, according to which a voltage is induced in electrically conducting body moving in a magnetic field & this voltage is directly proportional to the velocity. Standard outputs include analog, frequency, rs232rs485 or gsm connectivity. Local-and remote-display models are available with weather proof & flame proof enclosure as an optional feature. They meet the most demanding requirements on high measurement precision, long-term stability and hygienic standard. Specifications • flange sizes: 150# ansi: 19 to 305 mm (1” to 12”) • maximum pressure: 10 kgcm2 • minimum conductivity: 10 us • output 4-20madc or modbus rtu • electrode material: ss316, others optional • environmental temperature: -5 to 55 oc (23 to 131of) • graphical lcd, velocity display • liquid temperature: 0 to 150oc (32 to 302of) • accuracy:+-1% of span. • range: 0.3 to 10 ms • frequency: 0 to 1000 hz with galvanic isolation • protection: ip67

Description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible. we have all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

• Country of Origin: India
• Brand Name: Federal
• Material: Cast Iron
• Color: Blue
• Voltage: 220V
• Operating Type: Automatic
• Power: 24VDC Or 220VAC
• Driven Type: Electric
• Certificate: ISO 9001:2008 Certified
• Display: Remote
• Warrenty: 1 Year
• Finishing: Unpolished
• Corrosion Resistance: No
• Shape: Square
• Phase: Single Phase
• Usage: Industrial
• Specialities: Digital Water Meter Display
• Line Size: 50-100mm, 100-150mm
• Packaging Type: Carton Box
• Pressure: Medium Pressure
• Weight: 50-100kg
• Dimension (LxWxH): 365x180x295mm

• Size: Multisizes
• Output: 4-20mA/HART/Relay/Batching/GSM/Data Logging
• Cable length: Up to 50 m / 164 ft
• Size :: 1” to 10”
• Accuracy :: ±2.5% to 3% of actual reading
• Gas Temperature :: Up to 70°C
• Power Supply :: 85 to 265 VAC @ 50Hz

DescriptionAllegiance Digital  Electromagnetic Water  Flow Meter, 80 mm (3 Inch) simply known as mag flow meter is a volumetric flow meter which is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required.The device doesn’t have any moving parts and cannot work with hydrocarbons and distilled water. Mag flow meters are also easy to maintain.Magnetic flow meters works based on Faraday’s Law of Electromagnetic Induction. According to this principle, when a conductive medium passes through a magnetic field B, a voltage E is generated which is proportional to the velocity v of the medium, the density of the magnetic field and the length of the conductor.In a magnetic flow meter, a current is applied to wire coils mounted within or outside the meter body to generate a magnetic field. The liquid flowing through the pipe acts as the conductor and this induces a voltage which is proportional to the average flow velocity.This voltage is detected by sensing electrodes mounted in the Magflow meter body and sent to a transmitter which calculates the volumetric flow rate based on the pipe dimensions.Mathematically, we can state Faraday’s law asE is proportional to V x B x L[E is the voltage generated in a conductor, V is the velocity of the conductor, B is the magnetic field strength and L is the length of the conductor].It is very important that the liquid flow that is to be measured using the magnetic flow meter must be electrically conductive. The Faraday’s Law indicates that the signal voltage (E) is dependent on the average liquid velocity (V), the length of the conductor (D) and the magnetic field strength (B). The magnetic field will thus be established in the cross-section of the tube.Basically when the conductive liquid flows through the magnetic field, voltage is induced. To measure this generated voltage (which is proportional to the velocity of the flowing liquid), two stainless steel electrodes are used which are mounted opposite each other.The two electrodes which are placed inside the flow meter are then connected to an advanced electronic circuit that has the ability to process the signal. The processed signal is fed into the microprocessor that calculates the volumetric flow of the liquidPrinciple of Magnetic Flow Meter Based on Faraday’s LawAllegiance Water Management Electromagnetic Flow Meter Clamp On Ultrasonic Flow Meter S.S Electromagnetic Flow Meter Open Chenal Ultrasonic Flow Meter Vortex Flow Meter Instrumentation Tools Turbine Flow Meter by Membrane Key Digital water Flowmeter Telemetry Digital water Flowmeter Non Telemetry Digital water Flowmeter as per CGWA   Digital water Flowmeter

• Brand Name: NRG GLOBAL
• Material: Stainless Steel
• Finishing: Powder Coated
• Driven Type: Electric
• Power: 12 To 24 VDC Or VAC
• Pressure: Low Pressure
• Operating Type: Manual
• Usage: Industrial
• Voltage: 220V
• Certificate: CE Certified
• Line Size: 4-20mm, 20-50mm
• Specialities: Accuracy

• Brand Name: Optima
• Display: Analog, Digital
• Connection: Flange end and screw end or sandwich type
• Accuracy (%): 0.5 %
• Communication: RS 485
• Diameter (mm): 15 mm to 800 mm and more
• Electrode Material: HAste Alloy C or SS 316L or Titanium

Electromagnetic Flow Meter is intended for measuring the flow of electrically conductive liquids in closed pipelines where the magnetic flux permeates the entire cross-sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday's law of electromagnetic induction and compute the flow rate using the equation of conductive liquids having a minimum conductivity of 5 micro Siemens/cm. Flowtech is IS standardized and has adopted ERP solution to make the production flawless. We manufacture both Electromagnetic wafer type flow meter as well as electromagnetic flanged type flow meter in the range of 100 M³ / Hr and sizes from ½" to 8". Flowtech Electromagnetic Flow Meters Comprise All The Following Properties: Materials used in the liners are neoprene, polyurethane, and neoprene which are a good electrical insulator, corrosion or erosion resistant, and are obstruction free and hence can be used for slurry services and suitable for most acids, bases, water and aqueous solutions. They can be used as bidirectional meters. They are capable of handling extremely low flows. They have very low power requirement. They are unaffected by upstream flow disturbances They can be used for measuring heavy suspensions, including mud, sewage and wood pulp There is no pressure head loss in the flow meter.

• Voltage: Power: 60-265 VAC,24 VDC,3.6 V Lithium Battery
• Country of Origin: Made in India
• Material: Stainless Steel
• Display: Analog, Digital
• Accuracy: +- 0.5 % and +- 0.2 %
• Item Code: MAG-3000-01
• Communication: Output: Standard output 4-20 mA,RS485 Option: RS232,HART
• Electrode Material: SS 316L,Titanium,Tantalum,Hastelloy,,Platinum,SS Duplex
• Electronics Enclosure: Enclosure: weather proof IP67
• Diameter (mm): 10-3000 mm
• Working pressure (kg/cm2): 12,18,26,42 kg/cm2
• Min. Conductivity: 5 Micro Simens
• Model Name/Number: MAG-3000
• Brand: PETROTECH
• Usage/Application: WATER, ETP,CHEMICAL

• Material: Stainless Steel
• Type: magnetic Flow Meter
• Display: Digital
• Brand: Techmation
• Usage/Application: Water
• Connection: flangend

• Type: PTFE & Rubber
• Brand Name: Flowtech Measuring Instruments Pvt,Ltd
• Accuracy: +/- 1
• Size: 15 mm to 400 mm
• Application: Water,Acids,Alkalis,&Many more
• Lining Material: PTFE & Rubber
• Power Supply: 230AC & 5 Amp
• Output: 4-20 mA
• Range: 0.3-2260.8 m3/hr

Electromagnetic Flow Meter is intended for measuring the flow of electrically conductive liquids in closed pipelines where the magnetic flux permeates the entire cross-sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday's law of electromagnetic induction and compute the flow rate using the equation of conductive liquids having a minimum conductivity of 5 micro Siemens/cm. Flowtech is IS standardized and has adopted ERP solution to make the production flawless. We manufacture both Electromagnetic wafer type flow meter as well as electromagnetic flanged type flow meter in the range of 100 M³ / Hr and sizes from ½" to 8". Flowtech Electromagnetic Flow Meters Comprise All The Following Properties: Materials used in the liners are neoprene, polyurethane, and neoprene which are a good electrical insulator, corrosion or erosion resistant, and are obstruction free and hence can be used for slurry services and suitable for most acids, bases, water and aqueous solutions. They can be used as bidirectional meters. They are capable of handling extremely low flows. They have very low power requirement. They are unaffected by upstream flow disturbances They can be used for measuring heavy suspensions, including mud, sewage and wood pulp There is no pressure head loss in the flow meter.

• Display: Digital
• Brand Name: Z tech
• Output: 4 To 20 MA Dc
• Flange Sizes: 19 to 305 mm
• Max Pressure: 10 kg cm2
• Minimum Conductivity: 10us
• Environment Temperature: -5 to 55 deg c
• Liquid Temperature: 0 to 150 deg c

We are the leading manufacturers, exporters and supplier of this products.

Remote Mounting Integral Mounting inbuilt Display Integral Transmitter inbuilt Display/Panel Mounted Display Teflon Lining M.S./C.S. Full Bore Types   Rubber Lining M.S./S.S. Full Bore Type New Model H3DP/PVC Full Bore Type New Model HDP/PVC Low weight, Low Cost Better Quality Used for Corrossive Fluid & Liquid
