Electronic Test Instruments Dealers in Vadodara

SM6017 PORTABLE LCR METER Features Versatile , portable , compact LCR Meter for L-Q , C-D , R-Q, |Z|-Q measurements Measurement frequencies 100 Hz, 120 Hz and 1 kHz Basic accuracy : 0.3% Dual display , display main and sub parameters simultaneously Micro controller based , advance power saving featuring Auto Power off Zero correction Industry standard for Best Price - Performance - Value

• Brand Name: Motwane
• Usage: State Power Utilities
• Test On Indication: LED & Beep
• Built in Memory: Storage up to 99 records
• Display: Large LCD with Backlit
• Power Supply: 230 V

The transformers winding resistance meter that we supply to our customers is designed to measure the winding resistance of the inductors, transformer, motor windings, generators, bus bar contacts, power cables and much more. Shyam Electronics & Electricals, Gujarat is the best supplier and distributor of transformer winding resistance meter. We have products that are quality assured and top class. The products that we have are manufactured by the best manufacturers in the country. These are specially designed for highly inductive objects. This gives a very fast reading for all kinds of transformers. The built-in open circuit features voltage of DC supply ensures that the core of the transformers is saturated for fast measurements to be taken. Care is taken to absorb the back the current through winding under measurements is discontinued or disturbed. We provide our customers with wholesale transformer winding resistance meter supplier in Vadodara India. Our instruments are a regulated and highly stable specifical current source with the current selection. This instrument uses a radiometric circuit where the resistance of the specimen is compared with the known internal standard and 4 1/2 digit LCD which is provided for the resistance measurements in the milliohms and ohms. Features • It is highly stable and can be regulated according to your needs. • It has an LCD and it can be used for 19999 counts. • Simultaneous measurements of currents and voltage. • True four-terminal measurement. • Protection against the use of inductive kickback and also discharge. • Resolution of around 0.1 micro ohm. • Time vs current plot for OLTC. • The visual indication for the discharge. • Automatic discharge. • Thermally protected power supply. • Lightweight carrying case. • Temperature-compensated value for aluminium and copper. Contact us and get every detail about our product and business policies. We have executives you will provide you with all the important details. We believe in transparent business policies and therefore ensure that our products meet the needs of one customer and clients.

• Display: 128 X 64 Graphical Backlit LCD
• Weight: Approx 0.35 kg
• Temperature Range: 10 to 50 deg C
• Size/Dimension: 96 x 96 mm (Bezel),92 x 92 mm (Panel cutout)
• Power Supply: 90 - 480 VAC,50-60 Hz
• Burden: 0.5 VA (Voltage),Less than 1.0 VA (Current)
• Line Frequency: 45 to 55 Hz
• Depth of Installation: 55 mm
• Demand Interval: 15/30 min
• Secondary Input Current: 5A or 1A (To be specified at the time of Ordering)
• Range of Reading Current: 5-5000 A
• Direct Input Voltage: Upto 500 V L-L,upto 300 V L-N

• Flowmeter: Electromag

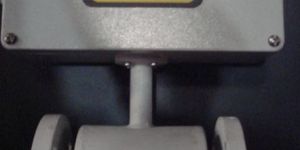

“kabir” make versatile electromagnetic flow meter is ideal for conductive liquids such as raw water, chilled water, effluents, potable water etc. Using time proven electromagnetic flow metering principle, the meter achieves a flow meter for pipes from 15mm to 600mm. Since there are no moving parts, the flow meter gives years of maintenance free service. “kabir” flow-head can be supplied in teflon lining or hard rubber lining is available with all the features required in a field mounted water metering equipments. These include - weather proof enclosure, communication options, rtc with data logging with printer option and 4 to 20 ma isolated flow signal transmission option for flow pattern recording. The converter is available as field mounted-ip65 protection category. Gsm modem interface can also be supplied as an optional add-on feature. the operating principle of magnetic flow meters is based upon faraday's law of electromagnetic induction, “it state that a voltage will be induced in a conductor moving through a magnetic field”. The magnitude of the induced voltage e is directly proportional to the velocity of the conductor width d, and the strength of the magnetic field b. Liquid acts as a conductor as it flows through pipes. This flowmeters find varied applications where the flowing medium is difficult to handle. Major advantage of these flow meters are : zero pressure drop, no moving part and highest accuracy level at most affordable cost.

• Brand Name: KYORITSU
• Color: Grey
• Condition: New
• Power Source: Battery
• Automation Grade: Automatic
• Application: Control Panels, Industrial Use, Power Grade Use
• Certification: CE Certified
• Feature: Easy To Use, Superior Finish
• Type: Insulation Resistance Tester
• Country of Origin: JAPAN

Description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible. it has all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request. electro magnetic flow meters. it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

• Brand Name: Optima
• Usage/Application: Measurement
• Type Of Ph Meter: Portable
• Accuracy: Greater than +/- 0.01 pH
• Range: 00.00-14.00 pH
• TDS: 0-1999 mg/l
• DO Meter: 0.00-25.00 mg/L

• Country of Origin: India

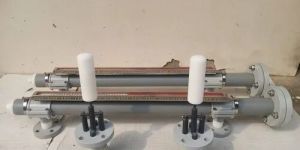

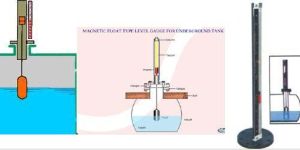

• Type: Magnetic Level Indicators
• Material: Stainless Steel
• Application: Testing Water Level
• Feature: Accuracy
• Condition: New
• Display Type: Analog
• Automatic Grade: Manual
• Measuring Range: 0-3 mtr
• Size: 1"
• Brand Name: nrg global
• Temperature: 35

• Brand Name: NATIONAL CONTROLS
• Color: BLACK
• Application: Moisture measurement of all AGRICULTURE SEEDS
• Theory: Dielectric Constant measurement.
• Power: 9 V Battery 6F 22 Type , available every where
• Machine Type: Digital Measuring Instrument.
• Accuracy: 0.2 %
• Output: Digital Display Indication.
• Country of Origin: Vadodara
• Model Number: AGRO - 1 TO AGRO - 8
• Name: Digital Moisture Meter - Agro Seeds

• Warranty: 1 YEAR
• Parameter to be Monitored: Voltage Data Logger (0-2.5/10/25V)
• Type of Data Logger: Voltage Data Logger, Digital Data Logger
• Interface: USB
• Display: LED
• No. of Channels: Single Channel
• Power Supply: Battery
• Memory: 64,000

• Type: Customized
• Brand Name: ASES-Wonderware, X-Force, Schneider
• Country of Origin: Vadodara

Renowned Supplier of Energy Management Software (EMS) Monitoring & Control SCADA System offering on Turnkey basis. Energy Management SCADA Benefits; Optimization of Energy consumption Centralize Energy & Power Monitoring Energy effieciency management so energy can be saved Saves overall cost by identifying cause of lost Easy breakdown maintenance Trending Reports generation EMS SCADA Modules: Data Acquisition Server Graphical Display (SLD Diagram) Trend Client Web Reports Energy SCADA | EMS System Software | Monitoring.

• Brand Name: Compucare India
• Condition: New
• Feature: Accuracy, Easy To Fit, Robust Construction,Auto Email & SMS alert,Automated Reports
• Display Type: Digital
• Country of Origin: India

Digital Utility System enables a manufacturer to monitor their energy consumption, water level indication, Fireline pressure indication, and other Utilities. A  live Utility dashboard comprises of overall plant energy consumption data, Efficiency, productivity, total consumption, on/off status, and other measurements.   Helps you keep a check on your utility consumption. The system notifies the manufacturer of any over or under-usage of utility in the plant.   Features Line-wise energy consumption report Auto E-Mail an SMS alert Live Analytics report

• Type: Resistance Test System
• Color: SIEMENS GRAY
• Voltage: 15KV
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Electric
• Electrods: Tungsten
• Test Voltage: 0-12.5KV ( Max 15KV), adjustable
• Trip Current: 0.40mA, Adjustable
• Voltage Indication: KV Voltmeter, 0 to 15KV
• Current Indication: 1/8 DIN, 31/2 Digit Ammeter, 0 to 2.000A
• Load on each electrode: 1.0 Newton

• Display: Digital
• Brand Name: Flowtech
• Material: SS
• Accuracy: 0.25%
• Item Code: EMFMBO-099
• Application Media: Water
• Model: EMFMBO-099
• Application: Industrial
• Fluid Temp: 150 Deg C
• Temperature: up to 150 Deg C

• MOISTURE TEST RANGE: 2% TO 40%
• RESOLUTION: 0.1%

 0.5% DATA HOLD FUNCTION LOW BATTERY INDICATION DATA HOLD FUNCTION BATTERY CONSUMPTION APPROX. 6.5mA LOW POWER CONSUMPTION IT IS USED THE MICROCOMPUTER (CPU) TECHNIQUE TO MEASURE QUICKLY, ACCURATELY STANDARD 9V BATTERY

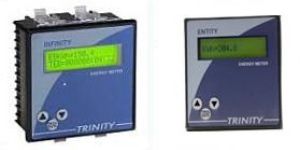

• Product: POWER PRO

the power pro from trinity is an easy-to-use, cost effective electrical power meter that offers all the basic measurement capabilities required to monitor an electrical installation. in addition to measuring the instantaneous parameters, it also measures accurately all three energies, and also demand, thus helping to measure and control energy costs. over the basic metering, it optionally provides two relay outputs, rs485 port supporting modbus rtu protocol, dual source metering and thd measurements.

• Brand Name: PRIMA
• Color: Black
• Condition: New
• Application: Remotely visualizing real time data on PC & Smart Mobile phones. Real Time Data Transmission & Analy
• Type: Data Acquisition System
• Country of Origin: India

Introduction:This device is used for Real Time Data Transmission (current format) to Cloud Server of CPCB & SPCB by M to M methodology with IoT based next generation featured. Remotely visualizing real time data on PC & Smart Mobile phones. This DAMS series comprises of advanced data-logging devices for real-time environment monitoring.Application:Remotely visualizing real time data on PC & Smart Mobile phones. Real Time Data Transmission & Analysis tool to find pollutants trends. Life time licenses relevant software.Features: Remote monitoring. WebFRONT Web SCADA Cloud gateway. Easy configurator with inbuilt Web User Interface (Web UI). MODBUS RTU RS-485 & MODBUS Ethernet/IP. File Transfer Protocol (FTP) to other server and USB data recording. Cloud server connectivity. Alerts: SMS, Email. Signal Scaling. DAMS series comprises of advanced data- logging device for real-time environment monitoring.  Rugged design for rough Industrial conditions.  Real-time data collection.  Data-quality indication.  Transfer to Central Server Portal (New Guidelines).  Over-The-Air (OTA) upgrades.  Remote configurable as IoT based technology.  Internal 3000 records storage

• Brand Name: Rishabh
• Color: Yellow
• Rated Voltages: 500V, 1000V
• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)
• Usage: Industrial, Laboratory

We are offering electric meter e & e - 04electric meter.

• Application: Indsustrial Usage

National Digital Moisture Meter is the most reliable, compact, light weighted, rugged & sophisticated instruments available in the market to provide you long hours of services & trouble free operation. The instrument is an easy single step tester that needs no temperature compensation, calculation or charts. The reading starts settle down in about 40 seconds of sample pouring and the inside electronics automatically compensates for the temperature. National Digital Moisture Meter is an impedance type instruments. This measurement principle is established to be more reliable and less subjected to errors resulting from unevenly distributed moisture within or among sample Mustiness or sourness of sample, etc. A great deal of efforts has gone into the development to provide you with years of service and reliability. The body is made of engineered plastic material and can withstand some abuse. There are no scales, meter with needle, infect no movable parts that need replacements. The unit is built around the latest state of the art integrated circuits to provide you with long, trouble free, hours of services.

An Energy Management System is a system of computer aided tools used by operators of electric utility grids to monitor, control and optimizes the performance of power generation and transmission system. Energy management systems are being widely used by every power station and power Generation Company. Energy is a valuable resource which is obtained by investing a huge amount of resources; hence its management is very essential. We supply Energy management systems for both domestic and industrial utilities.   Essential Points Connectivity Options : SATEC, L&;;T, Schneider Electric, Socomec, Rishabh meters, Modbus Serial and TCP protocol.     Configurator helps in the configuration of locations, loops, devices, tags names, etc.  Data Acquisition Server. Graphics / Display (SLD) Trend Client Web Based Standard Reports : Consumption patterns, Alarm Reports, Billing Report.      Notification Systems : Email, SMS, Phone calls with confirmation of receiving, Relay contact.       Third Party Integration.      Centralized monitoring thorough client software provides SLD and trends.     Rule based logical alarm system to generate alerts and reduce the energy consumption or risk in operation. Security Levels : Guest, Operator, Manager, Admin.

• Size: Multisizes
• Output: 4-20mA/HART/Relay/Batching/GSM/Data Logging
• Cable length: Up to 50 m / 164 ft
• Size :: 1” to 10”
• Accuracy :: ±2.5% to 3% of actual reading
• Gas Temperature :: Up to 70°C
• Power Supply :: 85 to 265 VAC @ 50Hz

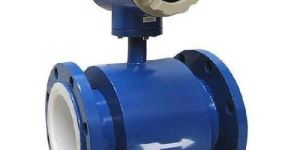

DescriptionAllegiance Digital  Electromagnetic Water  Flow Meter, 80 mm (3 Inch) simply known as mag flow meter is a volumetric flow meter which is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required.The device doesn’t have any moving parts and cannot work with hydrocarbons and distilled water. Mag flow meters are also easy to maintain.Magnetic flow meters works based on Faraday’s Law of Electromagnetic Induction. According to this principle, when a conductive medium passes through a magnetic field B, a voltage E is generated which is proportional to the velocity v of the medium, the density of the magnetic field and the length of the conductor.In a magnetic flow meter, a current is applied to wire coils mounted within or outside the meter body to generate a magnetic field. The liquid flowing through the pipe acts as the conductor and this induces a voltage which is proportional to the average flow velocity.This voltage is detected by sensing electrodes mounted in the Magflow meter body and sent to a transmitter which calculates the volumetric flow rate based on the pipe dimensions.Mathematically, we can state Faraday’s law asE is proportional to V x B x L[E is the voltage generated in a conductor, V is the velocity of the conductor, B is the magnetic field strength and L is the length of the conductor].It is very important that the liquid flow that is to be measured using the magnetic flow meter must be electrically conductive. The Faraday’s Law indicates that the signal voltage (E) is dependent on the average liquid velocity (V), the length of the conductor (D) and the magnetic field strength (B). The magnetic field will thus be established in the cross-section of the tube.Basically when the conductive liquid flows through the magnetic field, voltage is induced. To measure this generated voltage (which is proportional to the velocity of the flowing liquid), two stainless steel electrodes are used which are mounted opposite each other.The two electrodes which are placed inside the flow meter are then connected to an advanced electronic circuit that has the ability to process the signal. The processed signal is fed into the microprocessor that calculates the volumetric flow of the liquidPrinciple of Magnetic Flow Meter Based on Faraday’s LawAllegiance Water Management Electromagnetic Flow Meter Clamp On Ultrasonic Flow Meter S.S Electromagnetic Flow Meter Open Chenal Ultrasonic Flow Meter Vortex Flow Meter Instrumentation Tools Turbine Flow Meter by Membrane Key Digital water Flowmeter Telemetry Digital water Flowmeter Non Telemetry Digital water Flowmeter as per CGWA   Digital water Flowmeter

• Input – Any one of the below: Current, 4 – 20 mA DC/ 0 – 20 mA DC/Others
• Input impedance: 200 KΩ for Voltage, mV & T/C inputs
• Number of channels / Relays: 32 Channels / 16 relays --- Ver.1
• MAPPINGS: Groups to Channel mapping
• Contact output configurations: Setpoint, Alarm type, Hysterisis – for each relay
• DATA LOGGING capacity: 32 * 100 records at least
• Analog Retransmission output: Maximum 4 nos. of 4-20 mA DC / 0-10 V DC

Pantech's Programmable Universal/Predefined input Scanner, model 891 is an ideal instrument for providing indication , controlling set points for various multiple processes and logging the data in its memory bank. It is designed to accept various process inputs (Current, Voltage, RTD, and Thermocouple) simultaneously (or predefined) with facility of all inputs onboard field configuration, calibration and displaying the same. Data structures of all the channels and relays is stored inside the memory chips of instrument. These stored in data can be communicated to a higher device like a desktop through RS232/485 communications. The high end interactive software on the PC allows the user to download these days / preview them with different tabular or graphical modes etc. Two scanning modes are provided AUTO/MANUAL. It is normally designed to accept UPTO 32 different channels simultaneously. The instrument allows CHANNEL TO GROUP fixings, RELAYS to GROUP fixings . Detailed functions and configurations regarding these are explained beneath. The model is also equipped with an optional 4 analog outputs facility (Isolated or non-isolated). The model has optional in built RTC for providing timed data. The scanning time can be adjusted from 1 second to 99 seconds maximum through front keys. Unused channel SKIP facility is also provided in all versions. It can be optionally equipped with serial/parallel communication facility of different open protocols. The high end microprocessor program ensures the best and easiest possible user interactive modes. The EASE felt by the user in configuring the scanner / data logger is the real essence of product. Low drift precession components are used for long term accuracy of the instruments. All instruments undergo a burn-in for better reliability.

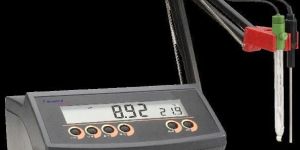

• Is It Water Proof: Water Proof
• Type Of Ph Meter: Hand-Held
• Brand: HANNA
• Usage/Application: Laboratory

• Features: Wide spectral range, Excellent long term stability, Cosine corrected, Automatic transmission measurements, Select either power or transmission, Solar energy power or transmission
