Feed Milling Tech Makarpura, Vadodara, Gujarat

Features:- Solid welded mill housing in mild or stainless steel Sturdy anti-vibration base frame Large inspection door Exchangeable beater plates, construction material to suit application Exchangeable grinding track segments Connection flange order-specific Bearing unit protected from dust by rinsing air Bearing unit designed for relubrication

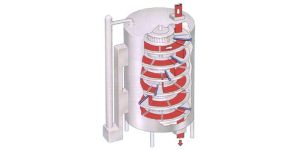

Features :- Innovative counter flow drying technology Uniform drying Adjustable drying period Adjustable chamber temperature up to 100˚C Easy to install & maintain Acquires lesser floor area

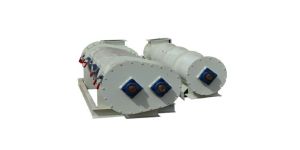

Features:- Made of stainless steel Special rotor and Paddle structure Minimum residue Long retention time: 60-120 seconds High gelatinization: 45-50 Large side access door design for easy cleaning and maintenance

Features:- For conveying of Powder like material, we provide vast range of screw conveyors based on the conveying capacity. The design of the screw conveyors is U – Type and easy to maintain. With applications such as Screw feeder, we provide Variable Pitch & Variable diameter screw conveyors to control the flow of the material that helps in the easy functioning of the Plant.

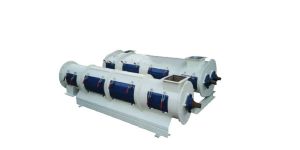

Features :- Adjustable retention time Steam jacketed chamber for uniform heating Hydraulic discharge Large access stores Controlled conditioning to achieve higher water stability for aqua feeds

Modern technology is used for designing pellet mills for accurate and maximum output, Pellet dia ranges from 2 mm to 25 mm Capacity vary with material characteristics and other factors. Pellet mill supported by our efficient spares service division which guarantees quick supply of quality product of any component form DIES, PRESS ROLL and KNIVES to even the smallest bolt.   Features :- Dynamically balanced capsule assembly. Fixture to remove capsule assembly very easily. Total three cutting knife on machine for better performance & uniform length of Pellet. Sliding winch arrangement on machine for easy removal of die and press roll assembly by which we can reduce die and press roll replacing period. Limit switch to avoid damage on machine in case of chocking. Easy gear type mechanism for gap adjustment between die and press roll. Front chute with door are fabricated from S.S 304 with Pneumatically actuated over flow flap & magnet. Paddle Type Conditioner (Fabricated from S.S. 304) with reasonably long retention time for proper cooking of the material. Variable Pitch Screw Feeder (Fabricated from S.S. 304), with VFD for Flow Control Optional Hydraulic Press for removal of press roll from shaft and bearings. Optional Auto Greasing Mechanism

Our Hammer mill is basically all purpose grinder which can be used for grinding wide range of feed stuff, Such as Oil Cakes, Extraction meal, Broken rice, Roots, Dry Herbs, Oat, Hulls and maize. The matter to be ground is subjected to the beating action of Hammers until is reduced to the fineness necessary to pass through the sieve. Hammer mill is constructed for high speed continuous grinding. It consists of fabricated body. The grinding chamber is usually formed by a series of steel plates build up on a shaft and separated sufficiently to allow the beaters to be mounted between them upon transverse spindles or pins with pass through the beaters are made from alloy steel (hardened). The rotor is dynamically balanced and mounted on two self aligned bearings. The grinding chamber and the motor are directly coupled and are mounted on a common base frame. Vibration dampers are provided to check any sort of vibrations occurring due to the running of the machine. Features :- High Capacity Stable Performance Easy to Handle/Maintain Handy Gap Adjusting Mechanism for Course/Fine Grinding Heavy Duty Structure Heavy Bearing Housing M – Shaped Beaters for Higher Capacity Air vent/Discharge Provision for Heat Dissipation generated during grinding. Installed with Special Purpose Bearing Designed for Higher RPM/Continuous Working with Grease Lubrication. Pneumatically Operated Mechanism provided at Inlet to remove Iron Particles

Feed Milling Tech has earned proficiency in handling turn key projects of Feed Plants (Poultry Feed Plants, Cattle Feed Plants, Aqua Feed Plants & Shrimp Feed Plants). We manage the project starting from recognising customer needs in terms of clients’ capacity requirement, the type of final product to be produced. After knowing the customer requirement we suggest the appropriate plant configuration to the customer. We use state of the art 3D designing software to design the products. Our designers thrive to design the machinery layout in such a manner that the use of the structure is optimum & hence reduces the cost of structure. We have several Erection gangs consisting of 12 to 15 members including supervisor, Welder & fitter. The vast industry experience help our erection team to complete the erection work in minimum time with precision.

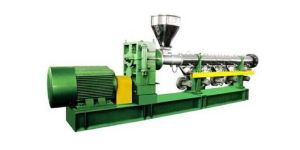

Features :- Simple operation High efficiency Wide production range Satisfying product quality Efficient cooking Floating and good water stability for extruded aqua feed

Features:- Made of stainless steel Adjustable retention time up to 150 seconds by means of variable frequency drive Advanced design with individual driven shaft Hygienic design to prevent microbial growth Large inspection windows for ease of maintenance Injections ports for water, liquid, oil and steam

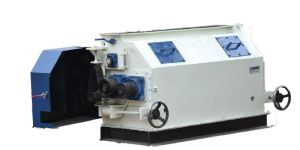

The Quality of the feed is measured by the uniformity of the size of feed particles. The uniformity in the size is taken care by Crumbler. Crumbler mainly breaks the Pellets (which have brought down to the ambient temperature) into the uniform size particles. This Process is done by Passing the Pellets between two Rollers ( Which are running on different RPM and in opposite directions). The Gap Adjustment mechanism of the Crumbler allows to produce required particle size of the feed by adjusting the Gap between Rollers.

Type : Automatic

Certification : CE Certified

Weight : 400-500kg

Voltage : 380V

Power : 1-3kw

Driven Type : Electric

Warranty : 1 Year

Features :- Efficient, Trouble free & Affordable Cooling Octagonal Shaped Cooling Chamber No Death Corner Improved Moisture control & Low-shock, tempered Cooling S.S. Feeder for Uniform Feeding Large Access Door for Maintenance/Cleaning Purpose Height Adjustable level sensors to modify cooling time Reciprocating fence for discharge

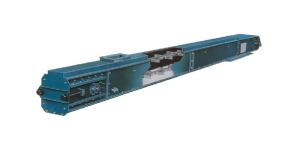

Features:- Drag Velocity – 0.5 m/s Chain pitch – 125 mm Nylon Pad for additional conveying capacity and lowering the friction

Features:- Based on the Capacity to be conveyed, Feed Milling Tech Offers vast Range of Bucket elevators. Depending of the Height up to which the material is to be conveyed, The density of the material, The capacity to be conveyed in Unit Time, We design the Bucket Size, Belt Width, Motor Power motor RPM & Appropriate Gear Box. These Calculations help us to design the efficient, maintenance free conveying system

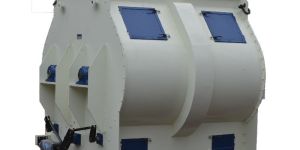

Ribbon type mixer:- features:- suitable for dry mixing suitable for oil content < 4% homogeneous mixing mixing period – 3-5 min (depending upon ground particle size & feed formula) cv < = 7.5% return air chute furnished for internal & external pressure balancing pneumatically operated bom-bay type discharge flap spray nozzles for spraying molasses/oil/water etc. no death corner   twin shaft paddle mixer:- features:- suitable for wet mixing suitable for oil content < 10% homogeneous mixing mixing period – 2-3 min (depending upon ground particle size & feed formula) cv < = 5% return air chute furnished for internal & external pressure balancing large cleaning door for easy maintenance pneumatically operated bom-bay type discharge flap spray nozzles for spraying molasses/oil/water etc.  .

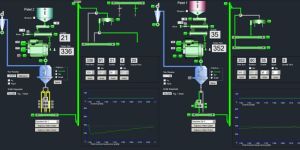

To produce desired quality feed, Proportion of each ingredient is must. every batch weighing application is unique with its own capacity requirements, plant specifications, our batching system has proven this need in all technical aspects, even is auto or manual control system with semi auto control and it is user friendly. The plant mimic on the PC screen displays the status of the batching section & operations can be continuously monitored. PLC based computerized batching system. software acquires various data & reports from the machines, quantity of the material in batch hopper is sensed by load cells & transmits the information to PC which controls the batching operations as per the recipe.
