Float Level Switch
27 Per Piece
1 Piece(s) (MOQ)

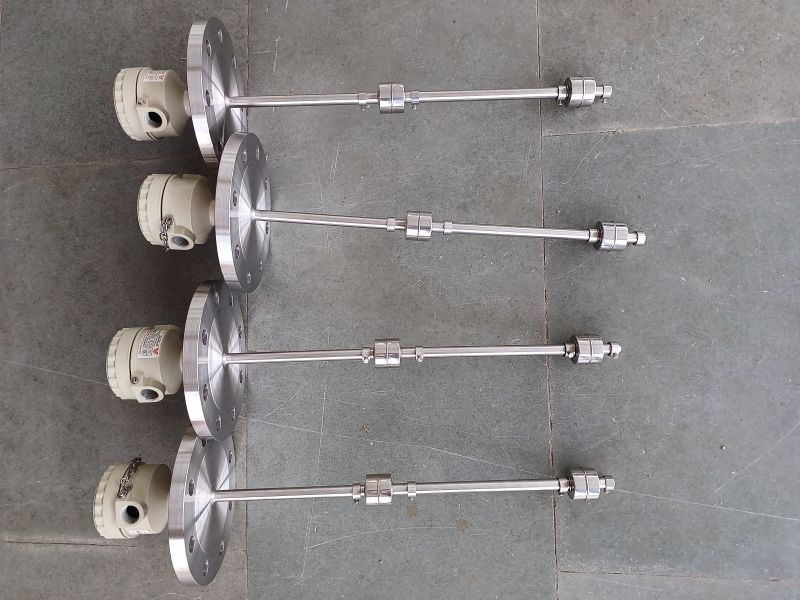

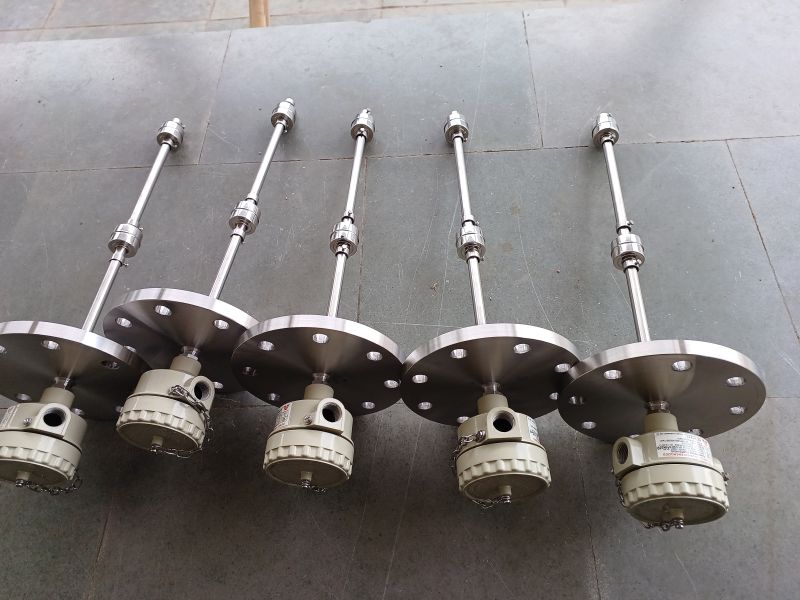

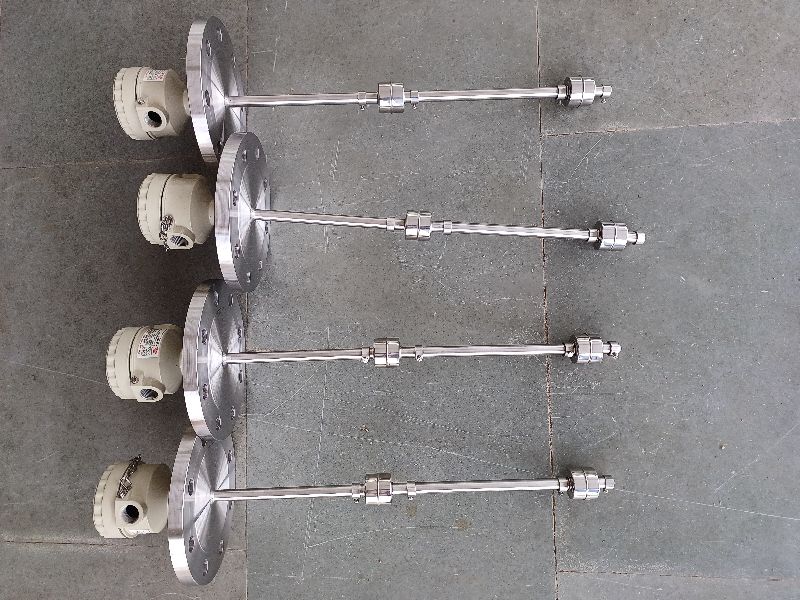

âkabirâ make top mounted magnetic level switch moves up and down on probe immersed in a liquid. The float energizes the hermetically sealed sensors, which changes from no to nc or otherwise as the float - passes them. The reed switch operates no to nc which is potential free contact. :- ⢠height of the tank or probe length required ⢠no. Of points to be controlled with respect to top flange ⢠material of construction of wetted parts ⢠top nozzle detail which is welded on tank on which you are indenting to mount level switch ⢠housing enclosure (flame proof weather proof) :- ⢠standard range: 100 mm to 3000 mm ⢠temperature: up to 100º c ⢠pressure: up to 15kgcm² ⢠moc: ss 304, ss 316, ss 316l, pp, pvdf ⢠connection: flange end screwed or to mention
Stainless Steel Float Switches
1 - 3,600 Per Piece
1 PIECE (MOQ)
Best Deals from Float Switches
Float Switch
20,000 Per Piece

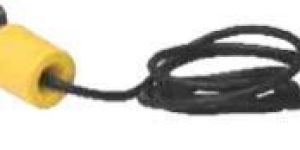

Cable Float Level Switch
400 Per Unit
Float Switch
210 Per Ounce
5 Set(s) (MOQ)
FLOAT SWITCH 3 MTR. CABLE ORANGE COLLOR 220V, 16A POWER MAKE THIS STOCK IN VADODARA SHOP Protection Gread: IP68 Cable Length: 3 Meters
Cable Float Switch
Get Price Quote
The Cable Float Level Switch is with simple structure of using micro switch or proximity switch or reed switch to control the contact and it is user friendly design for level measurement. The switches will send out ON or OFF contact signal output when the floating angle is larger than a certain degree where the state of the iron ball and reed switch will be changed for actuation. Applications Of Cable Float Level Switch Are In Various Industries Like: Petrochemical Industry Chemical Industry We offer a wide range of high quality Conductivity Level Switches which are mostly appropriate for use in conductive liquids such as Water/Waste and Non Foaming Liquids. These user friendly and low cost Switches are easy to install and do not require any calibration. For different temperature ranges, applications and customer demands flowtech manufacture Cable Float Level Switches using different materials of construction from plastic to Stainless Steel. Flowtech also manufacture Cable Float Level Switches with chemical resistant polypropylene.
Top Mounted Float Level Switch
Get Price Quote
The VEKSLER TOP MOUNTED FLOAT LEVEL SWITCH (TLS-19) is highly reliable and a low cost instrument. It can be used for small tanks as well as large vessels depending upon individual customer's requirement.It consists of a guide pipe made from SS 304/SS 316, a magnetic float of SS 316 that moves on the tube with rise and fall of level. Hermetically sealed reed switches are housed in the guide pipe. The switches can be fixed at any position through out the length of the pipe. But the position should be defined at the time of order as it cannot be changed at site. The factory set accuracy is +/-5mm. Since it works on magnetic principle, there is no mechanical connection and hence the chances of any wear/tear, fluid contamination are eliminated.The process connection is 3” NB Flange as per ASA 150# or any other standard as per individuals requirement. The Floats are hydro tested to work at 15 Kg/cm2. Floats for higher pressure can also be supplied. The working temperature is 90 Deg C.These are very useful for Diesel/Furnace Oil Day tanks and are supplied with IP65/EX-PROOF Gr 11A & 11B enclosures. The other applications include vending machines, small tanks, pumping stations, water tanks. Optional Relay units are available for higher current ratings.It can be wired with low load; however high resistive/inductive loads should be connected in series through control unit. This instruments is PC/PLC < DCS, Alarm Annunciator configurable. Very reliable yet a low cost instrument +/- 5mm accuracy Available in Single & Multiple Floats Hermetically sealed magnetic switches at pre fixed positions in the guide pipe Reed Switch Operation, 1, 2, 3 or 4 different positions 2" / 3" MS Flanged connection as per ASA 150# or as per customer's requirement Can be wired directly with low load, use control (Relay) unit for high resistive/inductive loads Available in Ex-Proof Gr IIA & IIB/Weather proof connection box Max. Pressure Upto 20 Kg/cm² and 80 Deg C temperature Custom designed to your exact guide length and float dimensions Side mounted bracket available for easy installation in open tanks / sumps PC/PLC/DCS, Alarm Annunciator configurable Also Available in External Cage Type Flame Proof/Weather Proof Connection Box Guided Tube : SS 304/ SS 316
Cable Float Level Switch
Get Price Quote
LSMT- magnetic top mounted level switch is an established and reliable technique in industry for single or multiple liquid level sensing and control in open or pressurized vessels. It offers trouble free service in conductive and non-conductive liquids under widely varying temperatures, Pressures, Liquid viscosity and corrosive conditions
Cable Float Switch
Get Price Quote
It is a simple and reliable technique for continuous level indication and control of any liquid, chemically compatible with the (sensor) material, unaffected by electrical conductivity, temperature, pressure or viscosity. The float is designed for variety of liquids and its unique self cleaning construction is well suited for even sticky or dirty environments with no float hang-ups.
Cable Float Switch
Get Price Quote
We are well known for exporting of wide variety of cable float switch
Float Switch
Get Price Quote
Float Switch, Rectangular Toughened Glass, Level Indicators
Float Switches
Get Price Quote
level instruments, Chemical level indicator
water tank float switch
Get Price Quote
water tank float switch, Level alarms, Direction indicator
Water Level Float Switch
Get Price Quote
water tank float switch
Get Price Quote
water tank float switch, Reflex Level Indicator, Level Indicators
