Flow tech Instruments Services Makarpura, Vadodara, Gujarat

Flowtech make heavy duty tubular liquid level indicator, water tank level indicator is a simple & reliable device for direct reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & also endanger human life. 1. the top & bottom liquid chamber of indicator is made of solid bar & glass tube (borosilicate) is fully protected by box section made out of 2 mm thick m.s. Channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube remains intact. 2. .we are using 100% ptfe (teflon) rope as packing to ensure positive leak tightness for full vacuum as well as 6 kg / cm service pressure. 3. as compare to reflex & transparent type level gauge, this tubular level indicator is light in weight. 4. it is available in single length of 2000 mm c/c distance. We can extend the length by coupling 2 or more through coupler. 5. we are providing air vent plug at top & drain plug at bottom for taking sample. We can also provide inbuilt isolation valve on request. 6. it is simple and reliable device for direct reading in atmospheric or pressurized (below 5 kg/cm2) tank application. 7. it eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous chemicals start leaking. 8. glass tube (borosilicate boiler quality) is fully protected by guard rods or box section made of 'c' – channel. 9. offset constructed isolation valve on request. the connection provided will be flanged / screwed / tc joint.

Brand Name : Flowtech Instruments Services

description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. since there are no moving parts, the flow meter gives years of maintenance free service. its performance is independence of temperature, pressure, density and viscosity of medium. the flow meter is obstruction less and hence the pressure drop is almost negligible. we has all the features required in field mountable metering equipment. these include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. the converter is available as field mounted – ip65 protection category. an optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. a magnetic field is generated by magnetic coil. the fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. this emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

We are offering water low flow meter. description : flowtech variable area flow meters tiny rotameters are intended for general in line metering applications (i.e. For gas & liquid) for low flow measurement and for purging applications. These are available in acrylic body tube and glass tube design. These are working on the principle of variable area. The float moves freely up and down tapered acrylic body tube or glass tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. acrylic body tube glass tube = this is made from solid acrylic block. = dowel pin, side plate construction = externally adjustable packing glands. = detachable flow scales = scale length is 100 mm. = externally adjustable packing glands. = laminated safety glass shielding = scale length is 100 mm. low flowrotameters (acrylic / glass tube) suitable for low flow rate of air orliquid measurement. Available inss-316 / ss-304 / p.p / p>t>f>e. Lined construction. Generallyscrewed with flow control valve at inlet but flanged or hose connectionavailable. 10 lph to 160lph of water at ambient temperature & 20 to 5000 nlph of air at ntpcondition. Accuracy = 2%fsd panel mountedwith high & low flow switches available.

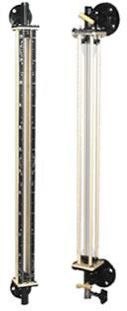

We are offering water level indicator. flowtech make heavy duty tubular liquid level indicator is a simple & reliable device for direct reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & also endanger human life. 1. the top & bottom liquid chamber of indicator is made of solid bar & glass tube (borosilicate) is fully protected by box section made out of 2 mm thick m.s. Channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube remains intact. 2. .we are using 100% ptfe (teflon) rope as packing to ensure positive leak tightness for full vacuum as well as 6 kg / cm service pressure. 3. as compare to reflex & transparent type level gauge, this tubular level indicator is light in weight. 4. it is available in single length of 2000 mm c/c distance. We can extend the length by coupling 2 or more through coupler. 5. we are providing air vent plug at top & drain plug at bottom for taking sample. We can also provide inbuilt isolation valve on request. 6. it is simple and reliable device for direct reading in atmospheric or pressurized (below 5 kg/cm2) tank application. 7. it eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous chemicals start leaking. 8. glass tube (borosilicate boiler quality) is fully protected by guard rods or box section made of 'c' – channel. 9. offset constructed isolation valve on request. 10. the connection provided will be flanged / screwed / tc joint.

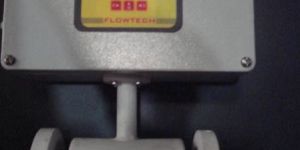

We are Electro magnetic flow meter description: addmas full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, addmas flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible. addmas has all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output. Used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. High accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. Line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. Lining : ptfe / rubber / pp

Brand Name : Flowtech Instruments Services

We are offering tubular level indicator. flowtech make heavy duty tubular liquid level indicator is a simple & reliable device for direct reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & also endanger human life. 1. the top & bottom liquid chamber of indicator is made of solid bar & glass tube (borosilicate) is fully protected by box section made out of 2 mm thick m.s. Channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube remains intact. 2. .we are using 100% ptfe (teflon) rope as packing to ensure positive leak tightness for full vacuum as well as 6 kg / cm service pressure. 3. as compare to reflex & transparent type level gauge, this tubular level indicator is light in weight. 4. it is available in single length of 2000 mm c/c distance. We can extend the length by coupling 2 or more through coupler. 5. we are providing air vent plug at top & drain plug at bottom for taking sample. We can also provide inbuilt isolation valve on request. 6. it is simple and reliable device for direct reading in atmospheric or pressurized (below 5 kg/cm2) tank application. 7. it eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous chemicals start leaking. 8. glass tube (borosilicate boiler quality) is fully protected by guard rods or box section made of 'c' – channel. 9. offset constructed isolation valve on request. 10. the connection provided will be flanged / screwed / tc joint.

Metal Tube Rotameters have Single Piece (Jointless) PTFE PP Claded Body, the best material for maximum durability and threadless body to prevent corrosion. With the angular scale of high accuracy flowtech provide Metal Tube Rotameters in various sizes from ½” to 4″ and 50 M³ Hr range. Two-tone powder coated excellent finish and efficient design which ensure that float does not project out of the body.All the Metal tube Rotameters by Flowtech are ISO certified which is a trademark of our trait to not adjust with the quality of the products. Flowtech Metal Tube Rotameters are featured with Inductive Proximity Switch, Control unit, mounting by DIN Rail, Screwed fitting, Namur, ABS housing, accepts the input of both 230 V AC 110 V AC (-15% + 10%) and accuracy of Accuracy: +- 2% Of Full Scale.

Size : 50 to 600 NB Round Square & Rectangular Shape MOC : CS,SS 304 , SS 316.

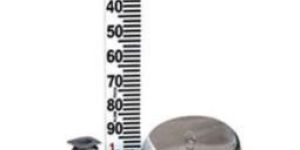

Float & board type level indicator, tank level indicator float type description : flowtech offer float & board type tank level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The specific gravity of the fluid should be more than 0.6. Float is available in different material s.s.304/s.s.316/p.p./teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through rope via a sets of pulleys, the pointer slides over a cm marked board, installed parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted. design feature : “flowtech” also offers vapour seal type float & board type level gauge which is generally used for tanks having corrosive fumes / vapours or n­2 [nitrogen] purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed s.s. Pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level. performance : float inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position. material of construction : float : s.s.316 / s.s.304 / poly propylene float wire & float guide wire : s.s.316 / poly propylene pulley & pulley pin : m.s. / s.s.304 pulley housing : aluminium / s.s.304 / s.s.316 die cast weather proof enclosure of weather proof board (scale) : aluminium with powder coated having 150 mm width & white back ground & black writing at every 10cm and red marking at every meter. Anchor plate : m.s / s.s.304 / s.s.316 scale bracket (t) : m.s. / s.s.304 pointer : m.s / s.s.304 with pp roller for frictionless sliding on board. Available : from 1 metre to 20 metre

Brand Name : Flowtech Instruments Services

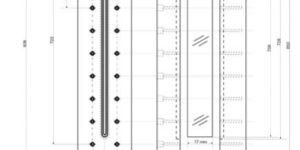

Description tank mounted view glass size : 50 to 600 nb round square & rectangular shape moc : cs,ss 304 , ss 316.

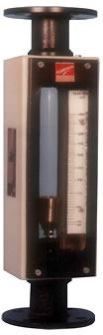

We are offering rotameter. flowtech make glass tube rotameters mainly used for measuring rated flow of liquid and gases. available in c.s, ss-304, ss-316 poly propelene.p.t.f.e. Lined. flanged, screwed or hose connections. available from 15 nb to 100 nb pipe size and ranges between 30 to 20,000 lph of water at ambient temperature. linear scale having accuracy of 2% fsd high & low flow switches flowtech glass tube variable area flow meters (rotameters) are intended for general in line and by-pass metering applications (i.e. For gas & liquid) where operating conditions are with the limitations of glass metering tubes. These are the principle of variable area. The float moves freely up and down tapered borosilicate glass with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. design features : dowel pin, side plate construction detachable flow scales externally adjustable packing glands connections can be rotated 360 degree at 90 degree laminated safety glass shielding scale length of 180-200 mm

We are offering remote type flow meter. description: flowtech full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, flowtech flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible. flowtech has all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output. Used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. High accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. Line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. Lining : ptfe / rubber / pp

We are offering reflex transparent level gauge. description of reflex type level gauge :- flowtech instrument offers reflex level gauge for the measurement of liquid level at a glance in tank. This is particularly using for high pressure or high temperature or toxic liquid storage tanks. these gauges have a prism glass window that uses the basic optical principles of light refraction & reflection to enhance the indication of the liquid level. In brief when the light strikes the area of glass covered by the liquid is allow passing to the interior of the gauge. So that the area appears dark (black). While the light strikes the open space, above the liquid level is reflected back to the observer so that the area appears silver-white. We can clearly see the actual liquid level in the systems. description of transparent type level gauge :- in this type of level gauge the liquid level is discriminated in the form of different specifications : type : reflex / transparent visibility : full visibility / partial visibility liquid chamber : carbon steel , s.s.304, s.s.304 (l) , s.s.316 ,s.s.316 (l), p.p cover plate : carbon steel , s.s.304, s.s.304 (l) , s.s.316 ,s.s.316 (l), p.p gasket : caf , ptfe , graphoil , other on request glass : borosilicate toughened of indigenous – temperature range upto 125oc , klinger / maxos make temperature range upto 400oc , other on request designed for high pressure & temperature liquid storage tanks in petrochemicals, fertilizers, pharmaceuticals & chemical industries. in reflex level gauges, the glass has precision groves cut inner side and mainly used for colorless liquids. in transparent level gauge, the glasses are without groves and arranged at the front and rear of a slotted liquid chamber and mainly used for colored liquids. max. 3000 mm length in single piece. imported/indigenous glasses on request. frost free arrangement on request.

Description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible. it has all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

We are offering orifice plates and flange assemblies. Description : flowtech make orifice plates & flange assemblies. suitable for creating differential pressure in a pipe line for flow transmitter etc. orifice flange assemblies’ consist of weld neck type flanges with studs, nuts, and gaskets. Available in ss-316/p.p.material. Design standard confirm to bs 1042 fowtech make orifice flange assemblies are used for measuring flow of various liquids, gases & steam from 1 ½” to 24” line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of ‘differential pressure’ created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. design standards design - confirming to isa rp 3.2, dn 1952, bs 1042, iso-5167 orifice bore - confirming to iso 5167 / bs 1042 / rw miller / l. K. Spink / age – 3 accuracy - within +/- 1 % vent / drain - vent or drain holes are provided as per customer’s requirement. Not drilled for orifice bore smaller than 25.4 mm.

Brand Name : Flowtech Instruments Services

We are offering orifice plate flow meter. Description : flowtech make orifice plates & flange assemblies. suitable for creating differential pressure in a pipe line for flow transmitter etc. orifice flange assembliesã¢ï¿½ï¿½ consist of weld neck type flanges with studs, nuts, and gaskets. Available in ss-316/p.p.material. Design standard confirm to bs 1042 fowtech make orifice flange assemblies are used for measuring flow of various liquids, gases & steam from 1 ã�â½ã¢ï¿½ï¿½ to 24ã¢ï¿½ï¿½ line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of ã¢ï¿½ï¿½differential pressureã¢ï¿½ï¿½ created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. design standards design - confirming to isa rp 3.2, dn 1952, bs 1042, iso-5167 orifice bore - confirming to iso 5167 / bs 1042 / rw miller / l. K. Spink / age ã¢ï¿½ï¿½ 3 accuracy - within +/- 1 % vent / drain - vent or drain holes are provided as per customerã¢ï¿½ï¿½s requirement. Not drilled for orifice bore smaller than 25.4 mm.

Brand Name : Flowtech Instruments Services

We are offering orifice plate flange. Description : flowtech make orifice plates & flange assemblies. suitable for creating differential pressure in a pipe line for flow transmitter etc. orifice flange assemblies’ consist of weld neck type flanges with studs, nuts, and gaskets. Available in ss-316/p.p.material. Design standard confirm to bs 1042 fowtech make orifice flange assemblies are used for measuring flow of various liquids, gases & steam from 1 ½” to 24” line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of ‘differential pressure’ created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. design standards design - confirming to isa rp 3.2, dn 1952, bs 1042, iso-5167 orifice bore - confirming to iso 5167 / bs 1042 / rw miller / l. K. Spink / age – 3 accuracy - within +/- 1 % vent / drain - vent or drain holes are provided as per customer’s requirement. Not drilled for orifice bore smaller than 25.4 mm.

Brand Name : Flowtech Instruments Services

Orifice Flow MetersWe are offering orifice flow meters. Description : flowtech make orifice plates & flange assemblies. suitable for creating differential pressure in a pipe line for flow transmitter etc. orifice flange assemblies’ consist of weld neck type flanges with studs, nuts, and gaskets. Available in ss-316/p.p.material. Design standard confirm to bs 1042 fowtech make orifice flange assemblies are used for measuring flow of various liquids, gases & steam from 1 ½” to 24” line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of ‘differential pressure’ created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. design standards design - confirming to isa rp 3.2, dn 1952, bs 1042, iso-5167 orifice bore - confirming to iso 5167 / bs 1042 / rw miller / l. K. Spink / age – 3 accuracy - within +/- 1 % vent / drain - vent or drain holes are provided as per customer’s requirement. Not drilled for orifice bore smaller than 25.4 mm.

Brand Name : Flowtech Instruments Services

We are offering oil flow meter. low flow rotameters (acrylic / glass tube) suitable for low flow rate of air or liquid measurement. • available in ss-316 / ss-304 / p.p / p>t>f>e. Lined construction. • generally screwed with flow control valve at inlet but flanged or hose connection available. • 10 lph to 160 lph of water at ambient temperature & 20 to 5000 nlph of air at ntp condition. • accuracy = 2% fsd • panel mounted with high & low flow switches available.

We are offering moisture absorber assembly. suitable for viewing the level of two different density liquids at the bottom of the tank during removal of liquid. suitable for temperature up to 100 degree c pressure up to 3 kg/cm2 available in ss 316 / ss 304 / pp/ ptfe lined construction

description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. since there are no moving parts, the flow meter gives years of maintenance free service. its performance is independence of temperature, pressure, density and viscosity of medium. the flow meter is obstruction less and hence the pressure drop is almost negligible. we have all the features required in field mountable metering equipment. these include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. the converter is available as field mounted – ip65 protection category. an optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. a magnetic field is generated by magnetic coil. the fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. this emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

We are offering low flow rotameter. description : flowtech variable area flow meters tiny rotameters are intended for general in line metering applications (i.e. For gas & liquid) for low flow measurement and for purging applications. These are available in acrylic body tube and glass tube design. These are working on the principle of variable area. The float moves freely up and down tapered acrylic body tube or glass tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. 5. low flow rotameters (acrylic / glass tube) suitable for low flow rate of air or liquid measurement. • available in ss-316 / ss-304 / p.p / p>t>f>e. Lined construction. • generally screwed with flow control valve at inlet but flanged or hose connection available. • 10 lph to 160 lph of water at ambient temperature & 20 to 5000 nlph of air at ntp condition. • accuracy = 2% fsd • panel mounted with high & low flow switches available.

We are offering liquid low flow rotameter. description : flowtech variable area flow meters tiny rotameters are intended for general in line metering applications (i.e. For gas & liquid) for low flow measurement and for purging applications. These are available in acrylic body tube and glass tube design. These are working on the principle of variable area. The float moves freely up and down tapered acrylic body tube or glass tube with fluid flow from bottom to top. The float takes up a position where buoyancy forces and the float weight are balanced in proportion to flow rate. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. low flowrotameters (acrylic / glass tube) suitable for low flow rate of air orliquid measurement. Available inss-316 / ss-304 / p.p / p>t>f>e. Lined construction. Generallyscrewed with flow control valve at inlet but flanged or hose connectionavailable. 10 lph to 160lph of water at ambient temperature & 20 to 5000 nlph of air at ntpcondition. Accuracy = 2%fsd panel mountedwith high & low flow switches available.

We are offering float & board type level indicator, liquid level indicator description : flowtech offer float & board type tank level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. The specific gravity of the fluid should be more than 0.6. Float is available in different material s.s.304/s.s.316/p.p./teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through rope via a sets of pulleys, the pointer slides over a cm marked board, installed parallel to the tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted. design feature : “flowtech” also offers vapour seal type float & board type level gauge which is generally used for tanks having corrosive fumes / vapours or n­2 [nitrogen] purging tanks. In this level gauge the float is connected to a magnetized counter weight moving in a sealed s.s. Pipe & which drives a follower magnetized bi - colour capsule inside a glass tube to indicate liquid level. performance : float inside the tank raises and dails with the level of fluid this makes the pointer mobe one the scale indicating level inside the tank. In this level gauge, when tank is full the pointer is at bottom position on board and when tank is empty, the pointer will be at top position. material of construction : float : s.s.316 / s.s.304 / poly propylene float wire & float guide wire : s.s.316 / poly propylene pulley & pulley pin : m.s. / s.s.304 pulley housing : aluminium / s.s.304 / s.s.316 die cast weather proof enclosure of weather proof board (scale) : aluminium with powder coated having 150 mm width & white back ground & black writing at every 10cm and red marking at every meter. Anchor plate : m.s / s.s.304 / s.s.316 scale bracket (t) : m.s. / s.s.304 pointer : m.s / s.s.304 with pp roller for frictionless sliding on board. Available : from 1 metre to 20 metre

Brand Name : Flowtech Instruments Services
