Flush Bottom Valve Dealers in Vadodara

Goel Scientific manufactures & supply bottom outlet valve throughout the world. All spherical and cylindrical vessels are supplied with valve seat in the bottom outlet to get a perfect fit to a bottom outlet valve. Bottom outlet valve helps in preventing the accumulation of solids or liquid in the bottom outlet of a vessel. Bottom outlet valve can be incorporated into any type of cylindrical and spherical vessel. Bottom outlet valve are available from 25-50DN size.

Available in s.s. - 304 316 inside opening flanged end to asa standards. also in ptfe lined can be supplied.

• Size: 1/4inch, 1inch
• Material: Stainless Steel
• Pressure: Medium Pressure
• Application: Industrial, Laboratory
• Feature: Durable, High quality, Reasonable price
• Finishing: Polished
• Texture: Plain

• Type: Flush Bottom Valves
• Material: Metal
• Pressure: High Pressure, Low Pressure, Medium Pressure
• Comdition: New
• Pack Type: Box
• Usage/Application: Industrial
• Surface: Polished

• Flush bottom Valves: Flush bottom ball valve

• End Connection: : Flanged End to ANSI B 16.5, Class 150 / 300
• Design Standard: : BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34
• Inspection & Testing Standard: : BS EN ISO 12266 – I (BS 6755 – I) / API 598/ API 607
• Flange To Flange Distance: : Mfg. Standard
•  : : BS 10 Table D / E / F / H
•  : : PN 6 / PN 10 / PN 16 / PN 25 / PN 40
•  : : DIN Standard / JIS Standard / IS Standard
• Manufacuring Size Range: : 1/2″ (DN15) to 12″(DN 300)
• Pressure Rating of Valve: : 150# / 300#
•  : : PN 10 / PN 16 / PN 25 / PN 40

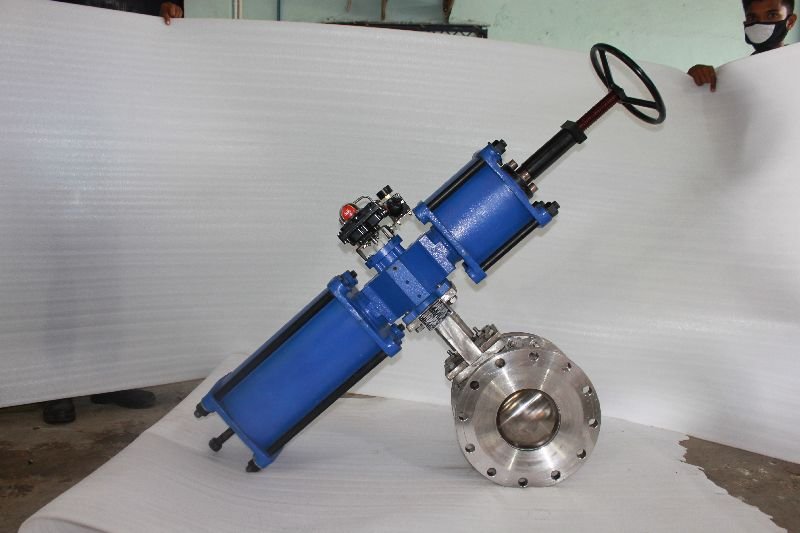

• Valve Operation: : Manual Hand Lever / Worm-Gear Actuator Operated
•  : : Pneumatic Rotary Quarter Turn (Double/Single Acting) Actuator / Electrical Actuator

Features. : Rugged construction for absolute safetyAvoids chipping of lining during handlingChoice of lining to suit working conditions.Most economical with the proven performanceExtended seat to reduce dead space.

"r-square” flush bottom valves are designed to provide drainage and dead space free shutoff for reactors, vessels and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself. Advantage of disc type is short stroke for openclose operation. Design options are open on discharge side for nozzle fitting or flange end. Air cylinder operation is usual for saving labor.

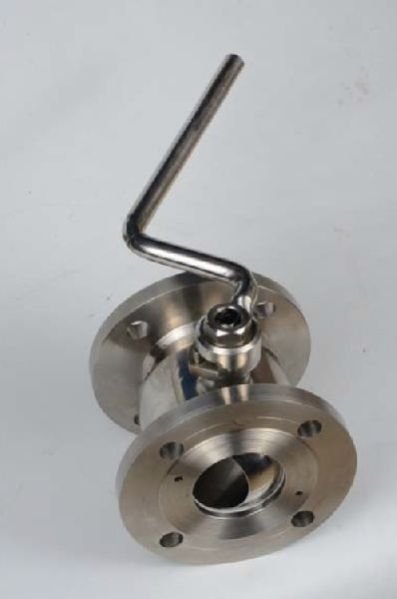

Flush Bottom P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electropolished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.   Salient Features:       Compact Design High Performance Ball Valve Bottom P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electropolished,, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

• Size: 80NBX50NB,100NBx50 NB,150NBx100NB
• Material: DI ASTM A 395 PFA/FEP/PVDF Lined
• Pressure: 150
• End Connection: Flange End
• Model: SILPL
• Usage/Application: Chemical
• Brand Name: SILPL
• Packaging Type: Wooden Packing
• Ends: Flanged End
• Media: Corrosive
• I deal in: New Only
• Hydro Seat Test: 15 Kg/cm2
• Spark Testing: 10 kva

Our Industrial Glassware products are well known all over the world for their outstanding features. These features include heat resistance, dimensional accuracy, resistance to alkali and chemical resistance. Our products find their application in pharmaceutical and chemical industry. We are manufacturer and supplier of industrial glassware products which are made of good quality raw material so as to tolerate thermal shocks and chemical reactions. We offer a wide range of products which includes Bottom Flush Valve, Cylindrical vessels, Receiver's pot and cylindrical vessels. Other products include Spherical Vessels, valves and fittings, Process Plants and others as well.   We offer our indian clients bottom flush valve, which are precisely engineered for carrying out accurate composition during reactions. These also provide proper drainage and flexible design so that these may fit in any nozzle configuration. Our valves are made of good quality raw material including borosilicate tubing's and are corrosion resistance as well which ensures durability in the long run. We cater our products to renowned clients in the domestic market.

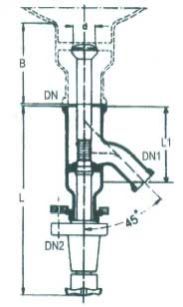

Goel Scientific manufactures & supply bottom outlet valve throughout the world. All spherical and cylindrical vessels are supplied with valve seat in the bottom outlet to get a perfect fit to a bottom outlet valve. Bottom outlet valve helps in preventing the accumulation of solids or liquid in the bottom outlet of a vessel.

• Size: 25NB to 150NB
• Material: CS / MS / SS
• Application: Industrial
• Brand Name: NG
• Country of Origin: Made in India

• Brand Name: AIRA
• Material: SS
• Size: 8 - 600 MM
• Condition: New
• Connection: Flanged
• SS Grade: 304

Amolee Valves & Fittings Mfg. Co. is one of the renowned manufacturer and supplier of high quality flush bottom valves from India.

We are offering flush bottom valve is meant for providing drainage and dead space free shutoff for reactors, autoclaves, vessels and storage tanks. The valve seat flush is placed with the bottom of the vessel to complete the dead space free shutoff. The flush bottom tank valve is manufactured using the latest technology to ensure better performance. The ball type flush bottom valve we offer is regarded among the best. We are among the reliable suppliers of flush bottom valve in india. flush bottom valve for vessel out let material of construction stainless steel 304, 316 ms powder coated type of valve steam jacketed type pad flange type type of seating ptfe seak metal seal available size 2/",3,4",6"

blow down valve, Compressor Filters, Air Filters, Separators

Temperature range from -10°c to +180°c & operating pressures from -1 to +6bar. The valve seat, made of glass fiber reinforced ptfe, is placed inside the nozzle of the vessel. Discharge takes place between spindle and valve seat, therefore obstruction of nozzle will be avoided. Rising spindle; on-rising hand wheel, sealing by ptfe bellow with additional safety packing.
