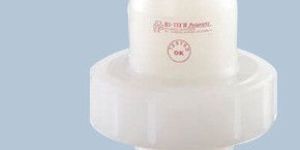

Foot Valves Dealers in Makarpura, Vadodara

These valves are designed with perfect flat seating for better sealing. With a pressure rating of PN 0.2 these valves are widely used in suction side of pump to avoid flow reversal. FEATURES   Rigid and sturdy design with minimum loss of head across the valve  Perfectly flat seating surfaces for good sealing  Preventing entry of foreign body to pump through suction pipe  Long service life APPLICATION Used in suction side of pump to avoid flow reversal from pump to sump with monobloc pumps SPECIFICATION   Manufacturing Standard IS 4038  Size Range 50 to 600 mm  Pressure Rating PN 2

• Material: Polypropylene
• Valve type: Check valve (vartical installtion)
• Body: Polypropylene
• Bonnet: Polypropylene
• Ball: Polypropylene
• Bodyseal: Epdm / neoprene
• Ball seat: Epdm / neoprene
• Bolts & nuts: Ms hot dippes galvanised
• End connections: Flanged
• Connection rating: Ansi b 16.5
• Hydraulic test: Body : 10 kg/sq. cm
• Pressures: Seat : 10 kg/sq.cm

THERMOPLASTIC foot Valve, ACTUATED THERMOPLASTIC butterfly valve
