Pipe Flanges Dealers in Vadodara

• Material: Stainless Steel
• Shape: Round
• Thickness: 5-10mm
• Application: Pipe Joints
• Color: Grey
• Finishing: Polished
• Feature: Durable, Fine Quality, High Strength

Reducing flanges are used in pipe-to-pipe connections. Reducing flanges are a little easier to bolt up than non-reducing flanges. They provide the most perfect solution when you need to connect different size flanges. They offer the simplest and least expensive method of mating two different sized flanges.

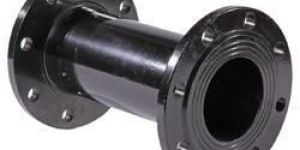

The Pipe Flanges, supplied by us, are manufactured using top-grade metals, like, stainless steel, iron, brass, etc. We are offering our entire range of products in excellent quality packaging to guarantee zero damage during transit. For this, we have hired only professional packing personnel to ensure the same. Sternly packed and delivered safely to the customers' provided address and that too in the committed time span.

• Material: Metal
• Shape: Round
• Thickness: 10-15mm
• Application: Fittings
• Color: Shiny Silver
• Diameter: 10-20mm
• Feature: Accuracy Durable, High Quality

• Brand Name: Flowtech Instruments Services

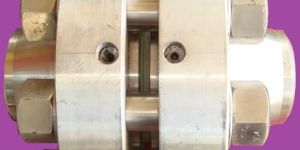

We are offering orifice plate flange. Description : flowtech make orifice plates & flange assemblies. suitable for creating differential pressure in a pipe line for flow transmitter etc. orifice flange assemblies’ consist of weld neck type flanges with studs, nuts, and gaskets. Available in ss-316/p.p.material. Design standard confirm to bs 1042 fowtech make orifice flange assemblies are used for measuring flow of various liquids, gases & steam from 1 ½” to 24” line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of ‘differential pressure’ created when an obstruction is placed in the fluid flow, due to increase in fluid velocity. design standards design - confirming to isa rp 3.2, dn 1952, bs 1042, iso-5167 orifice bore - confirming to iso 5167 / bs 1042 / rw miller / l. K. Spink / age – 3 accuracy - within +/- 1 % vent / drain - vent or drain holes are provided as per customer’s requirement. Not drilled for orifice bore smaller than 25.4 mm.

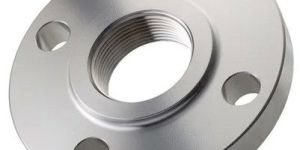

• Size: 10 Inch
• Thickness: 5-10mm
• Surface Finishing: Polished
• Application: Fittings, Industrial Use
• Material: Stainless Steel
• Shape: Round
• Color: Metallic

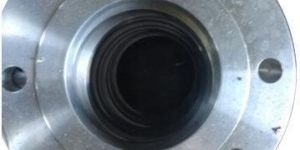

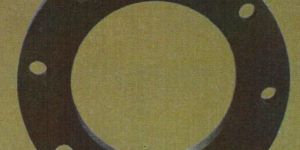

Our company also makes available high quality Slip-On Flanges. Our range of Slip-On Flanges is manufactured using high quality material, and hence, does not pose any quality related hassles. We offer Slip-On Flanges at the best prices. Also, Slip-On Flanges offered by us is resistant to damage. Available M.O.C : PP (Polypropylene)HDPE (High Density Polyethylene) Customizations Available : M.O.C.: P.P.C.P. Flange Drilled : ANSI B 16.5 (150 Class)BS 10 Table DBS 10 Table EBS 10 Table FDin. STD

• Material: CS / MS / SS
• Size: 15NB to 600NB
• Country of Origin: Made in India
• Brand Name: NG
• Usage/ Application: Industrial
• Thickness: 3mm to 6mm

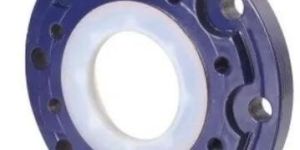

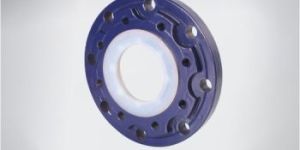

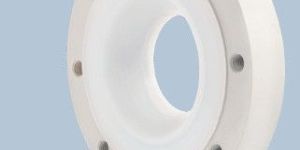

FEPPFA lined reducing flanges can be grouped into different types, the configuration is based on the closeness of the small bore bolt holes to the large bore bolt holes. Each type is designed so that they do not clash and that the nuts can be fitted successfully.

• Size: 15NB TO 300NB ( ¾” TO 12” )
• Temperature: -29℃
• Length: As per Standard of B16.5 & ANSI B 16.42
• Liner: PFA    – Per Fluoro Alkoxy, ASTM D3307 FEP    – Fluorinated Ethylene Propylene,  ASTM D2116 HDPE –  As per Standard
• Body: As per ASTM A 234 Gr. WPB / DI A395 / SS304 / SS316 ( Seamless)
• Steel Housing: Carbon steel or Stainless Steel
• Flanges: ASTM A 105 (N) / IS 2062 / ASTM A351 GR CF8 & CF8M
• Drilling / Pressure: ASA 150# / 300# / DIN / Table – F
• Dimensional STD: Reducing Flange: B16.5 & ANSI B 16.42 Flanges               : ASME B 16.5 Lining Standard : ASTM F 1545
• Vacuum: Full vacuum rated

• Size: 1/2" NB TO 48" NB.
• Features: Quality products,At Budget cost,Ready STOCKS or Short Delivery Period.
• Wall Thikness: 150#, 300#, 400 #, 600#, 900#, 1500# & 2500 #.
• Stainless Steel: ASTM A 182, A 240
• Grade: F 304, 304L, 304H, 316, 316L, 316H, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H
• Carbon Steel: ASTM A 105,
• Alloy Steel: ASTM A 182, Grade
• Nickel Alloys: Hastelloy, 904, Titanium, Duplex Alloy 2205, Duplex Alloy 2205 Code, Duplex Alloy 2304, Duplex Alloy 2507, Inconel 718, Inconel 751, Inconel X750, Inconel 722, Inconel MA 954, Monel 400, Monel 401, Monel 404, Monel 502, Monel K500, Monel R405, Nickel 201,
• Copper Alloys: Aluminium, Copper, Brass & Gunmetal

• Size: 1" to 12" inch
• Shape: cylindrical
• Country of Origin: Made in India
• Product Type: Lined Component
• Pressure: 20 bar/300 psi.g. Full vacuum resistance depending upon the Process conditions

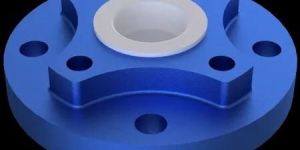

We are offering teflon lined reducing flange. As per astm a 105, drilled to ansi 150# 300# din bs is jis gb std. On demand.

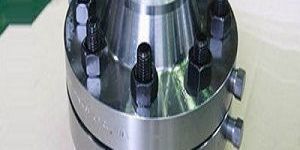

Stainless Steel Orifice flanges are for metering the volumetric flow rate of liquids and gasses through a pipe. Two orifice flanges are called an orifice flange union. Each flange comes with two pipe taps for measuring the pressure drop of the flow through an orifice plate. Orifice plates do not come with the flanges and are sized based on the requirements of the process. Two jack screws are used to spread the flanges apart in order to change the orifice plate. This flange is normally available in weld neck, slip-on, and threaded flanges. These flanges have a raised face. Orifice flanges are installed in a straight run of pipe in order to avoid turbulence at the plate. As a rule of thumb, an orifice flange has ten diameters of straight pipe upstream and five diameters of pipe downstream. There are guidelines set out in (American Gas Association) AGA Report #3 which is the Orifice Metering of Natural gas. When installing the orifice plate flange the pressure taps need to be at the same elevation to each other. The assumption when making the calculation for the orifice plate is that static head of the tubes is the same on both sides of the orifice plate. Pressure taps should not be installed facing down as the taps could become plugged with debris in the line. Stainless Steel Weld neck orifice flanges are butt-welded into the pipeline. The inside diameter (bore diameter) of the pipe should be specified when ordering. Weld neck orifice flanges are available in standard pressure ratings: ANSI classes 300, 600, 900, 1500 and 2500. They are not available in ANSI 150 sizes because the thickness of ANSI 150 flanges are not enough to allow for drilling pressure taps.

• Material: MS
• Thickness: 4.5mm
• Country of Origin: Made in India
• Pipe Size: 4"
• Usage/Application: Building
• Rated Pressure: 430 bar
• Finish: Antirust

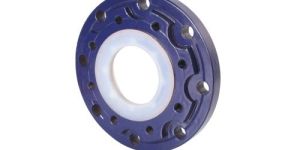

We are offering mstl reducing flange. Mstl reducing flange offered by us, is available with us in various sizes and shapes. We proffer our highly acclaimed mstl reducing flange at reasonable prices.

• Material: Stainless Steel
• Country of Origin: Made in India
• Size/ Diameter: 2 inch
• Pipe Size: 1 inch
• Fitting Type: Tee
• Usage/ Application: Gas
• Liner Thickness: 3.5mm

ALL DIMENSIONS ARE IN MM FOR OTHER DIMENSIONS PLEASE SEE 'LINED PIPE' PAGE MATERIAL OF CONSTRUCTION EQUAL TEE: EQUAL CROSS BODY (PIPE) ANSI B 46.10 ASTM A 216 Gr. WCB / ASTM A 106 Gr. B FLANGE : ANSI B. 16.5 ASA 150W IS 2002 LINER : ASTM D 3418 ASTM D 2116

Considered the most common primary element, Meriam’s concentric orifice plates are precision bored to exact dimensions with a sharp upstream edge to ensure accuracy. Pair this up with an orifice flange to provide a convenient, accurate method for installing orifice plates

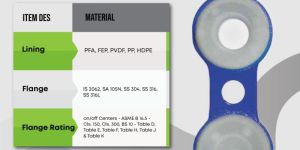

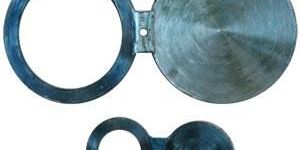

Spectacle Blind Flange, Lined Swing Check Valve, lined ball check valve
