Furnace Transformer Dealers in Vadodara

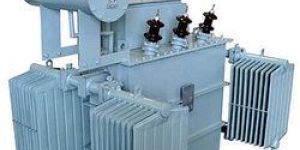

• Type: Furnace Transformer
• Certification: ISO 9001:2008 Certified
• Color: Green, Grey, Sky Blue
• Condition: New
• Output Type: AC Single Phase, AC Three Phase, DC
• Automatic Grade: Automatic, Fully Automatic, Semi Automatic
• Cooling System: Air Cooling, Oil Cooling
• Warrenty: 1year
• Frequency: 50hz, 60hz

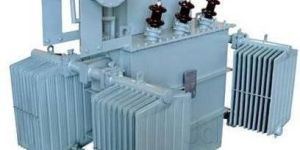

we develop and manufacture perfect furnace duty transformers. these are well engineered for various furnace activities & applications. Based on progressive technologies, they are widely used in steel plants, aluminum industries, and several other industries. These transformers are designed to function under really intense conditions. They withstand frequent over-voltages / over-currents. Our furnace duty transformers have robustness and superior functioning rate. There are operational safety, low-maintenance and low-noise operation. The transformers are ideal for induction heating application, etc. They render appropriate voltage for the industrial needs. There are various design, capacity and configuration options available.

• Application: Mining Lighting Power Usage
• Frequency: 50 Hz
• Phase: Three Phase
• Cooling Type: Dry Type/Air Cooled, Oil Cooled
• Power: 1000 KVA
• Applicability: Both Indoor & Outdoor Available
• Transformer Type: Furnace

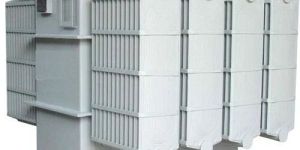

Using our latest technology and the experience, we have successfully delivered Furnace transformer with power ratings of up to 5 MVA and primary voltages of up to 33 kV. All transformer of this class meet the industrial standards IS:12977, confirming the quality benchmark and client’s expectation. We have proven our mettle and catered to the needs of diverse industries like Silicon carbide manufacturing, steel melting, heat treatment, Alumina manufacturing etc.   Our quality team has designed and tested these transformers to meet adverse conditions of high levels of electrical, thermal and mechanical stress to which they may be subjected during industrial operation.We do take complete specification and consideration in designing these transformers for electric-arc furnaces which need high secondary currents the fusion process (dozens of kA) and the wide range of secondary voltages, which are normally regulated by an on-load tap changer (OLTC), either directly on the high-voltage winding or via an intermediate booster located within the same tank. Features & Benefits: Customized tapping arrangement for wide range of secondary voltages and LT winding for large LT currents. Cooling arrangements like ONAN/ ONAF/ OFWF. Designed to withstand repeated short-circuit conditions and high thermal stresses. Protected against operational overvoltage due to frequent switching. Direct or indirect regulation option available. On-load or no-load tap changer (OLTC or NLTC). RC-SA high voltage protection system. Technical Specifications: Construction type: double core with two windings and on-load control of secondary voltage (two secondary). Nominal Power: 5 MVA OFWF Nominal Ratio: 6000/273-235-186 V Three-phase power up to:5 MVA Primary voltage up to: 33 kV Secondary voltage up to: 700 V Secondary current up to: 100 kA For applications in excess of 2,000 VDC (>100 kA) Standard Fittings: Pole mounting brackets Heavy-duty lifting lugs and hanger brackets Pressure Relief Device / Self Vending Top Cover Tank Grounding Provision Rating and diagram plate Primary Bushings Secondary Bushings Oil Level Gauge Bird Guard Optional Fittings: Lightning Arrester / Arcing Horns High Voltage Neutral Bushing Terminal Connectors Tap Changer for External Operation Cable Terminations Complete Self Protection feature.

• Phase: Three Phase
• Input Voltage: 0.4 Kv -11 Kv
• Cooling Type: Dry Type/Air Cooled
• Applications: Electric utility power systems, Mine power systems, Commercial power systems
• Coil Structure: Toroidal
• Power (VA): Up to 4000 VA
• Features: Lower loss and greater efficiency, Designed for installation closer to load, Low maintenance cost

• Phase: Three Phase
• Frequency: 50Hz
• Rated voltage: 11kV-33kV
• Rated capacity: 250KVA
• Body Material: MS
• Wire Material: Copper
• Brand: VI
• Primary Connection Type: Delta
