Gayatri Anticorrosive Lining Manjalpur, Vadodara, GJ

Our silicate based cement solves a number of corrosion problems involving oxidizing acids. It is the only cement that resists high temperatures and highly concentrated solutions. It is specially recommended for the construction of chimneys, incinerators, roasters and other high temperature equipment. Due to its high porosity and relatively low strength, our silicate based cement is not recommended for use in water, alkalis, dilute acids solutions and extreme tribunal conditions. Our silicate based cement is sold under the brand name gayrex. chemical resistance our silicate based cement offers chemical resistance against oxidizing acids, inorganic salts, and most organic solvents. applications buttered gayrex mortar can be applied on acid proof bricks using general brick laying methodit is also used to paint hardened joints by mixing 10% hydrochloric acid storage our silicate based cement in both solid and liquid variants should be stored in a dry place. packing gayrex powdergayrex liquid50 kgs plastic lined gunny bags20 /235 kgs drumgayrex powder and gayrex liquid is supplied in separate containers for on-the spot mixing preparation of silicate based cement (gayrex) mortar mortar for our silicate based cement is prepared by combining one part of gayrex liquid and two part of powder to from workable mixture. The ratio however depends on temperature, conditions and preference of the user. instructions transfer calculated quantity of gayrex liquid in a shallow mixing panadd desired amount of gayrex powder and mix thoroughly to get a smooth mortar of desired consistencymix thoroughly till the mortar is free from lumps and entrapped airbefore preparing further batches in the same pan, make sure that the gayrex mortar of the previous batch is removed from the pan

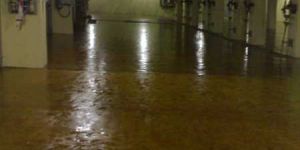

We are offering self leveling epoxy is based on high performance epoxy resin & curing agents. It is sold under the brand name gal – sl and has a three-component system, consisting of resin, curing agent and carefully graded iron free fillers. Product is self-leveling to achieve excellent gloss, attractive, hygienic and very hardwearing & chemical resistant finish. features being smooth, joint less and monolithic surface it is very easy to clean and to make it dust freeproduct is based on high performance epoxy resin & curing agent system. The flooring system has excellent overall chemical resistance at ambient temperaturea carefully selected and graded high wearing aggregate gives very strong floor toppings to withstand normal foot and light vehicular trafficsystem is available in many attractive colors uses self leveling epoxy is highly recommended, for use, for extremely hygienic condition, chemical resistant and dust free areas like: automobile industriespharmaceuticals & aesthetic areasfood processing areasbottling plantselectronics industrieshospital operation theatreschemical plants surface preparation for successful performance of self leveling epoxy or any other flooring system can achieve only after proper surface preparation. It is the prime requirement that surface must correctly prepared before application. new concrete surface must be cured for 28 dayssurface must be free from any oils, grease, loose partials, curing aid chemicals, previously applied coating etcsurface must be fully dryfor old surface, all cracks, cavities should be repaired with gal epoxy puttythis is a very thin topping so cannot level any irregularities of levels of the original sub-base. Therefore, it is most important to make original surface in line & level, before application of self leveling epoxy application (primer coat) apply one coat of self leveling epoxy primer on properly prepared surface by brush and allow it to dry. self level toppling first mix the resin part a, thoroughly with slow speed mixer until uniform color is achieved. then add curing agent part b and mix again with mixer (@less then 80 rpm). After that add filler par c and mix with mixer until a homogeneous, lumps free mass is achieved (@less then 80 rpm). Then, pour it on primed surface and work with notched trowel to required thickness and apply spike roller to remove air. Proper mixing is the key factor to get uniform color and smooth surface. storage all the components resin, hardener & filler must be kept in cool, dry place and in covered shed. health & safety it is advisable to wear protective wears at the time of use of self leveling epoxy and all other gal brand products. In case of contact with eyes and skin, wash with plenty of water and consult a doctor.

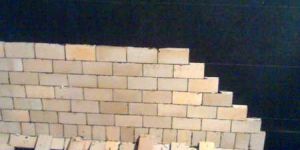

We are offering gaynut y cnsl mortar. Our clients can avail from us gaynut y cnsl mortar which is silica filled cashew-nut oil base resin. It is non-porous, self-hardening and relatively plastic in nature. When gaynut y cnsl mortar sets and cools, impermeable dense cement is obtained. It is resistant to a wide range of acid, alkalis, water, and hydrofluoric acid up to 40% concentrations. Gaynut y cnsl mortar provides excellent protection against hydrofluoric and nitric acids in the treatment of stainless steel (where tank lining are constructed with carbon bricks). Our gaynut y cnsl mortar can be used in laying and pointing of acid proof bricks and tiles for the construction of acid resistant tank linings, flooring surfaces. It can be safely used as joining material for joining pipes line transporting corrosive fluids like alkalis, solvents, acids and oils mixing ratio gaynut - y powder syrup 3 kgs 1 kg no other ingredient should be added to the mix powder should be added to the syrup during mixing. preparation of gaynut – y cnsl mortar place desired amount of gaynut – y cnsl mortar syrup in a mixing panadd desired amount of gaynut – y cnsl mortar powder to gaynut - y cnsl mortar syrup and mix thoroughly to from a smooth mortar (should be free from lumps and entrapped air)prepare only sufficient quantity of the mortar which can be utilized in 20 minutes as mortar will start setting in about 20 minutes and gradually stiffenremove gaynut – y cnsl mortar from pan before another batch is mixed caution only sufficient quality of mortar should be made at a time which can be utilized in 20 minuteson completion of joining of lying of acid resisting bricks or tiles the entire job should be left undisturbed for at least 78 hoursin order to achieve the almost toughness coupled with the highest chemical resistance, the work should be subjected to a hot water treatment (40°c) until the pointing becomes hardutilize gaynut – y cnsl mortar preparations within three monthsapply corrosion-proof gaynut – y cnsl mortar to metal or concrete surfaces before mortar is applied to ituse enameled vessel for preparing the mortar packaging gaynut : y powdergaynut : y liquid40 kgs plastic lined gunny bags20 /200 kgs drum.

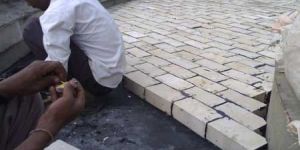

We are offering gayfur furan mortar. Our gayfur furan mortar has turned out as the nearest approach to completely corrosion resistant cement. It is very versatile and not only withstands non -oxidizing acids, solvents, salts and grease but also alkalis and detergents at temperatures up to 170oc. Gayfur furan mortar has made it possible to use single cement to lend greater versatility to the design processing equipment and structures providing protection against future changes in processing as well as errors in existing operation. This mortar also withstands alternating acid and alkali condition. chemical resistance it is resistant to practically all non-oxidizing acids, alkalis, salts, solvents, greases and detergentsnot recommended for strong oxidizing acids such as nitric acid preparation of gayfur furan mortar gayur furan mortar is prepared by combining one part of syrup and three part of powder to from workable mixture. instructions transfer calculated quality of gayfur furan mortar liquid in a shallow mixing panadd desired amount of gayfur furan mortar powder and mix thoroughly to get a smooth mortar of desired consistencymix thoroughly till the mortar is free lumps and entrappedbefore preparing further in the same pan, make sure that the mortar of the previous batch is removed from the panclean mixing equipment promptly use with alcohol or methyl ethyl kenton applications gayfur furan mortar is buttered on acid-proof brick and tiles using normal bricklayer's method storage store gayfur furan mortar powder and liquid in a dry place until ready for use packing gayfur powder50kgs. Plastic lined gunny bagsgayfur liquid20/200 kgs. M.s. Drums

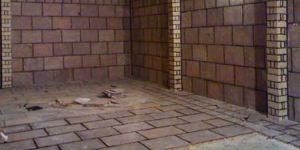

We are offering gayfur cc graphite carbon filled mortar. gayfur cc graphite carbon filled mortar is very effective corrosion resistant cement. It is the most versatile cement in the entire range which can not only with sand non-oxidizing acids, solvents, salts and grease but also alkalis and detergents at temperatures up to 170oc. This cement has made it possible to use single cement for lending greater versatility to the design processing equipment and structures providing protection against future changes in processing as well as errors in existing operation. Our gayfur cc graphite carbon filled mortar is also capable of withstanding alternating acid and alkali condition. chemical resistance practically all non-oxidizing acids, alkalis, salts, solvents, greases and detergents not recommended for strong oxidizing acids such as nitric acid. preparation gayfur cc graphite carbon filled mortar is prepared by combining one part of syrup and three part of powder to from workable mixture. instructions transfer calculated quality of gayfur liquid in a shallow mixing panadd desired amount of gayfur powder and mix thoroughly to get a smooth mortar of desired consistencymix thoroughly till the mortar is free lumps and entrappedbefore preparing further in the same pan, make sure that the gayfur mortar of the previous batch is removed from the panclean mixing equipment promptly use with alcohol or methyl ethyl kenton applications gayfur cc graphite carbon filled mortar is buttered on acid-proof brick and tiles using normal bricklayer's method. storage store our gayfur powder and liquid in a dry place until the time of use. packing gayfur powder50kgs. Plastic lined gunny bagsgayfur liquid20 kgs. M.s. Drums

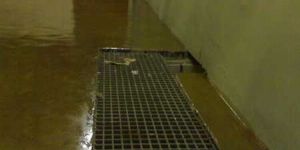

We are offering epoxy screeding.our clients can avail from us epoxy screeding which is standard corrosion-proof epoxy resin base cement. It is non-porous, thermo-setting and nontoxic in nature. When set and hardened, it becomes extremely tough and lasting. The resultant mass is dense impermeable and resistant to most of the strong acids, mild oxidizing agents, solvents, salts, oils and weak alkaline solutions. It has appreciable plasticity as compared to most of the cements based in resins is also excellent for resisting thermal shocks and vibrations. Epoxy screeding possesses a strong adhesion to steel tanks, aluminum lined tanks and aluminum vessels, and other metal equipments. It is sold under the brand name gayfane and is not recommended for strong alkalis, oxidizing agents and applications where the temperature exceeds 150oc. chemical resistance resistant to non-oxidizing acids, alkalis, salts and solvents preparation gayfane mortar is prepared by combining one part of syrup and to 5 parts of powder and catalyst to form a workable mixture. instructions transfer calculated quantity of epoxy screeding liquid in a shallow mixing panadd 1% hardener to the liquid and the desired amount of epoxy screeding powder and mix thoroughly to get a smooth mortar of desired consistencymix thoroughly till the mortar is free from lumps and entrapped airbefore preparing further batches in the same pan make sure that the epoxy screeding mortar of the previous batch is removed from the pan application buttered epoxy screeding mortar on acid proof bricks using general brick laying method gayfane is specially suited for the construction of monolithic lining by their very nature produce a joint less structure which claimants the necessity of using tiles and bricks. Monolithic lining thus produce stringer structure than are possible with jointed constructions. storage store epoxy screeding powder and liquid in a dry place packing 50 kgs. Plastic lined gunny bags powder5 kgs. Carboy liquid3 kgs. Catalyst (hardener) in carboypowder, liquid and hardener are supplied in separate containers for on the spot mixing scope of applications tanks of surfaces lined with epoxy screeding can be used in the following industries: area ted water industrybrewerieschemical industriesdairiesfood & provision industrypetroleum industrypharmaceutical industry
